Chapter 13: Using the effects

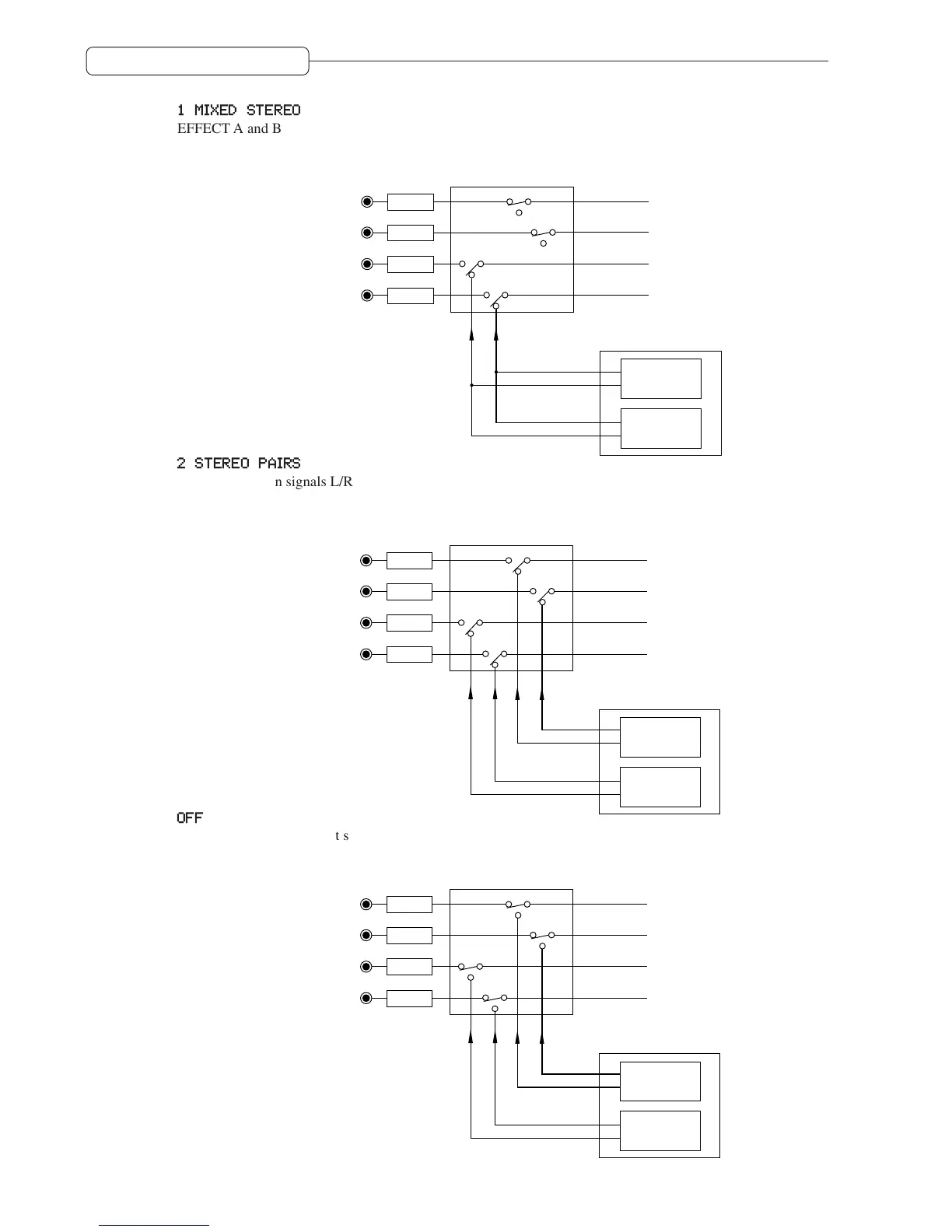

• 1 MIXED STEREO
EFFECT A and B return signals L/R are mixed and routed as analog inputs 5 and 6. You cannot use analog
INPUT jacks 5 and 6 to input external signals.
INPUT 3
(ANALOG)
INPUT 4
(ANALOG)
ASSIGN
FX RTN
Optional internal effects
EFFECT B
EFFECT A
GAIN
GAIN
INPUT 5
(ANALOG)
GAIN
INPUT 6
(ANALOG)
GAIN
R
L
R
L
• 2 STEREO PAIRS
EFFECT A return signals L/R are routed as analog inputs 3 and 4, and EFFECT B return signals L/R are
routed as analog inputs 5 and 6. You cannot use analog INPUT jacks 3–6 to input external signals.
INPUT 3
(ANALOG)
INPUT 4
(ANALOG)
ASSIGN
FX RTN
Optional internal effects
EFFECT B
EFFECT A
GAIN
GAIN
INPUT 5
(ANALOG)
GAIN
INPUT 6
(ANALOG)
GAIN
R
L
R
L
• OFF
Effect return signals are not switched to analog input signals. (That is, you cannot use the effects.) You can use
the analog INPUT jacks as usual.
INPUT 3
(ANALOG)
INPUT 4
(ANALOG)
ASSIGN
FX RTN
Optional internal effects
EFFECT B
EFFECT A
GAIN
GAIN
INPUT 5
(ANALOG)
GAIN
INPUT 6
(ANALOG)
GAIN
R
L
R
L
