Akai DPS12 User Manual

66

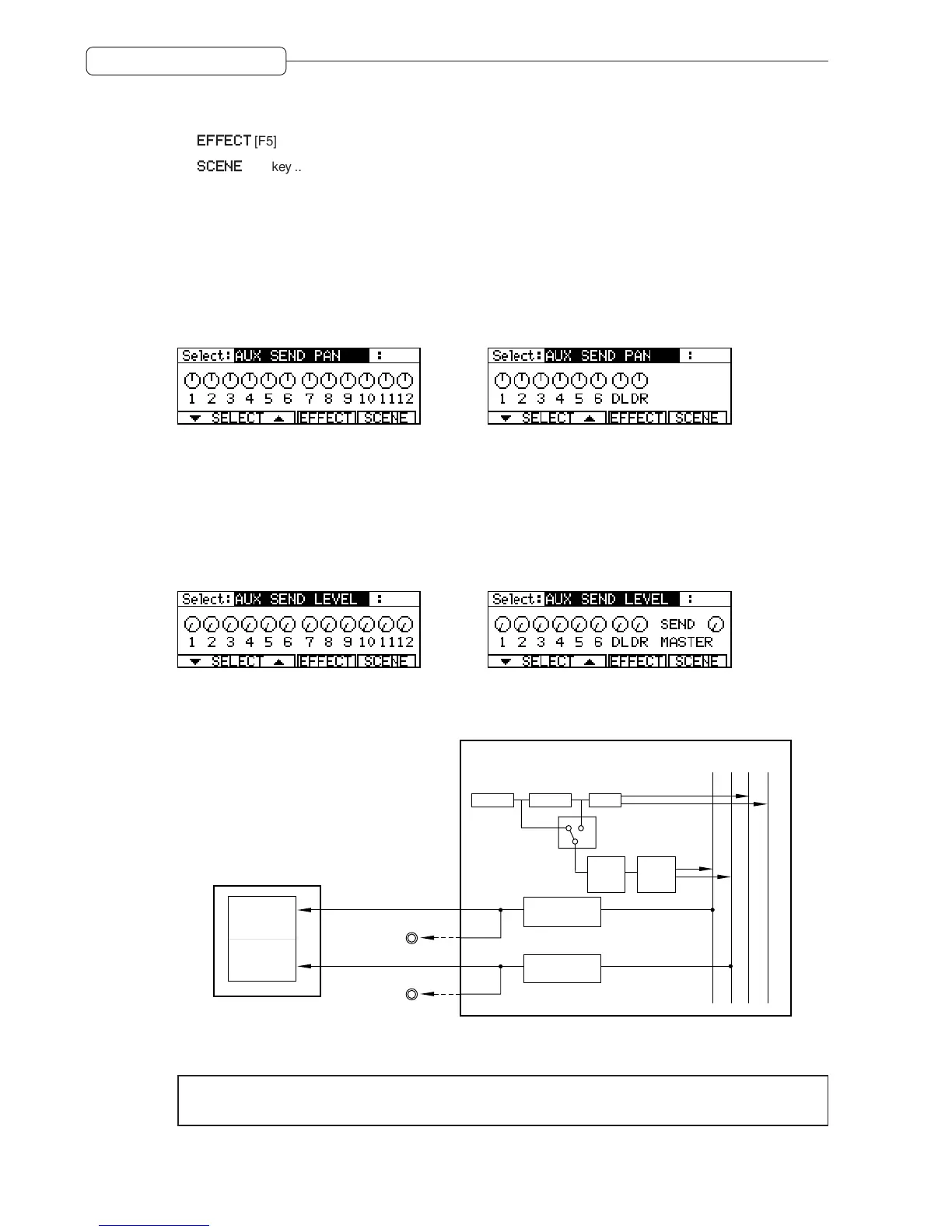

Chapter 6: Mixer Function
When this screen is displayed, the [F5] key and the [F6] key function as follows:
• EFFECT [F5] key .... Recalls the screen used to set the internal effects. (Needs optional EB2M)
• SCENE [F6] key .......Recalls the SCENE MEMORY window used to store and recall a scene memory.
● When “STEREO” is selected:
Send pan setting (AUX SEND PAN)
This parameter enables you to set a stereo image (PAN) of the channel signal sent to AUX send.
Range: R63–0–L63
■ When TRACK MIX channels are selected ■ When THRU MIX channels are selected
Send level setting (AUX SEND LEVEL)
This parameter enables you to adjust the level and the send master level (SEND MASTER) of the channel signal
sent to AUX send.
Range: 0–127
■ When TRACK MIX channels are selected ■ When THRU MIX channels are selected
The channel signal sent to AUX send is routed to the SEND MASTER parameter, and is output from the AUX
SEND A (L) and B (R) jacks. The same signal is sent to effect A/B.
LRA(L)
AUX
B(R)
PANLEVELEQ
Mixer section
SEND
Level
SEND
Pan
AUX SEND A
(ANALOG)
SEND A
Master level
AUX SEND B
(ANALOG)
SEND B
Master level
EFFECT A
EFFECT B
EB2M
AUX SEND signal flow (STEREO)
✐ TIP : You cannot select the SEND MASTER parameter using the [CHANNEL SELECT] key. Use the
[CURSOR] key to move the cursor to the field.
