Chapter 2: Recording on the DPS12
Overdubbing
“Overdubbing” is a recording operation in which you record another part in a new track while monitoring the
playback sound from tracks that have already been recorded. In this example, we overdub a bass guitar sound on
track 3 while listening to the rhythm machine recorded on tracks 1 and 2.
Overdubbing signal flow

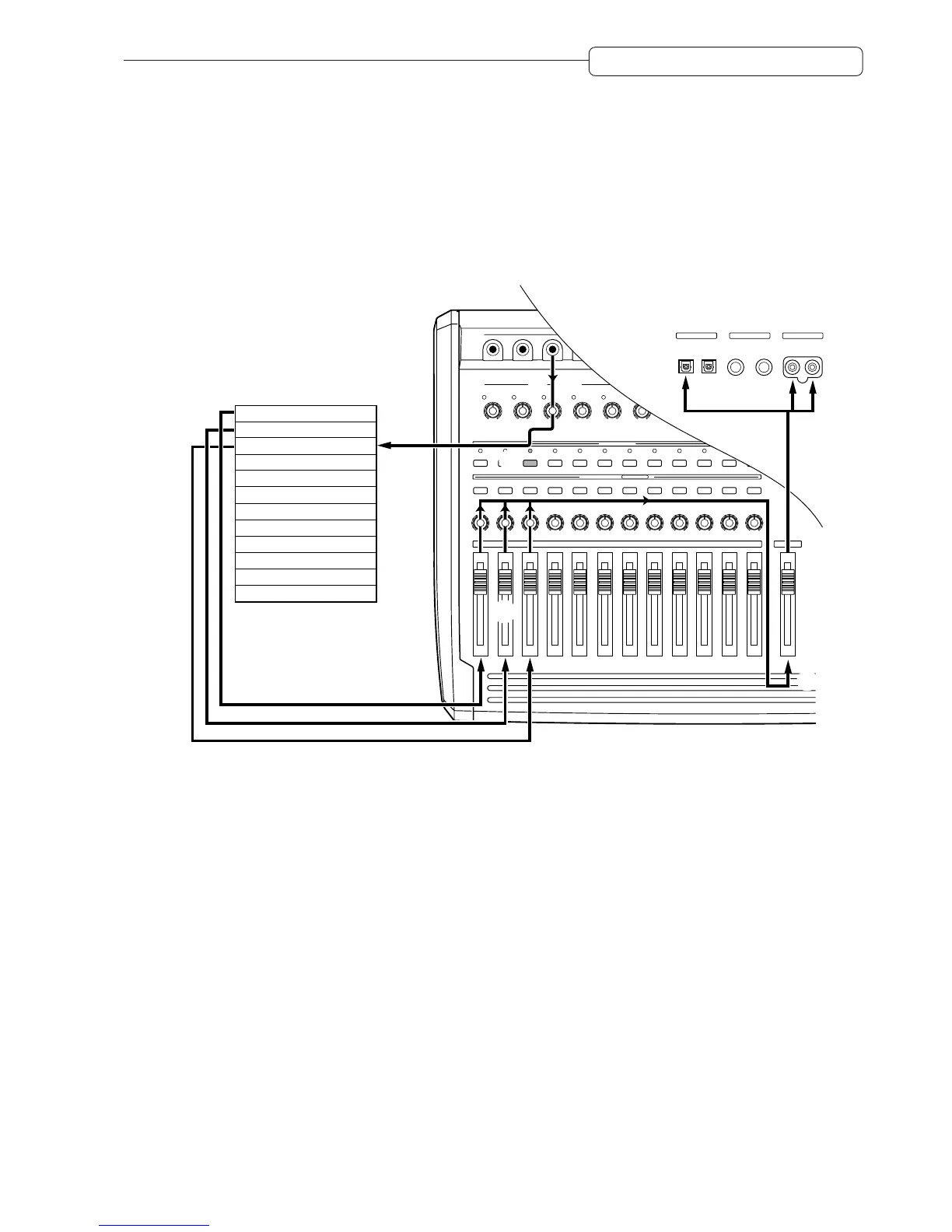

The diagram below shows a typical signal flow of overdubbing in track 3 while monitoring tracks 1/2.
1 2 3 4 5 6
INPUT
1
C
R
L
2
C
R
L
3
C
R
L
4
C
R
L
5
C
R
L
6
C
R
L
7
C
R
L
8
C
R
L
9
C
R
L
10
C
R
L
11
C
R
L
12
C
R
L
1
OVER
MICLINE
2
OVER
MICLINE
3
OVER
MICLINE
4
OVER
MICLINE
5
OVER
MICLINE
6
OVER
MICLINE
INPUT GAIN
RECORD SELECT
CHANNEL SELECT
QUICK LOCATE
ABCDEFG
123456789
10 11 12
123456789
10 11 12
HIJKL
1234567890
+/–
.
123456789
10 11 12
MASTER
A
2
5
6
OPTICAL AUX SEND MASTER OUT
OUT IN A B L R
3
Track 1(Outputs the track playback sound)
Track 2(Outputs the track playback sound)
Track 3(Outputs the input source)
Track 4
Track 5
Track 6
Track 7
Track 8
Track 9
Track 10
Track 11
Track 12
4
Overdubbing signal flow
1 With the DPS12’s default settings, signal input at the INPUT jacks 3 is sent via [INPUT GAIN] controls to
physical track 3 of the recorder section.
2.Press the [RECORD SELECT] key 3 on the top panel to place track 3 in recording ready status.
3 Output signals from tracks 1–3 are directed to TRACK MIX channels 1–3 of the mixer section.
4 You may adjust the level and pan settings of the TRACK MIX channel 1–3 signals using channel faders 1–3
and [PAN] controls 1–3 on the top panel.
5 Signals that passed through the channel faders and the [PAN] controls are mixed into a stereo signal, then
routed to the [MASTER] fader.
6 The signal adjusted by the [MASTER] fader for the output level is output from the MASTER OUT jacks and
the OPTICAL OUT jacks.
