Chapter 1: Outline of the DPS12
Parts and functions
This section describes the part names and functions. The names of the controls on the top panel are shown in
brackets [ ].

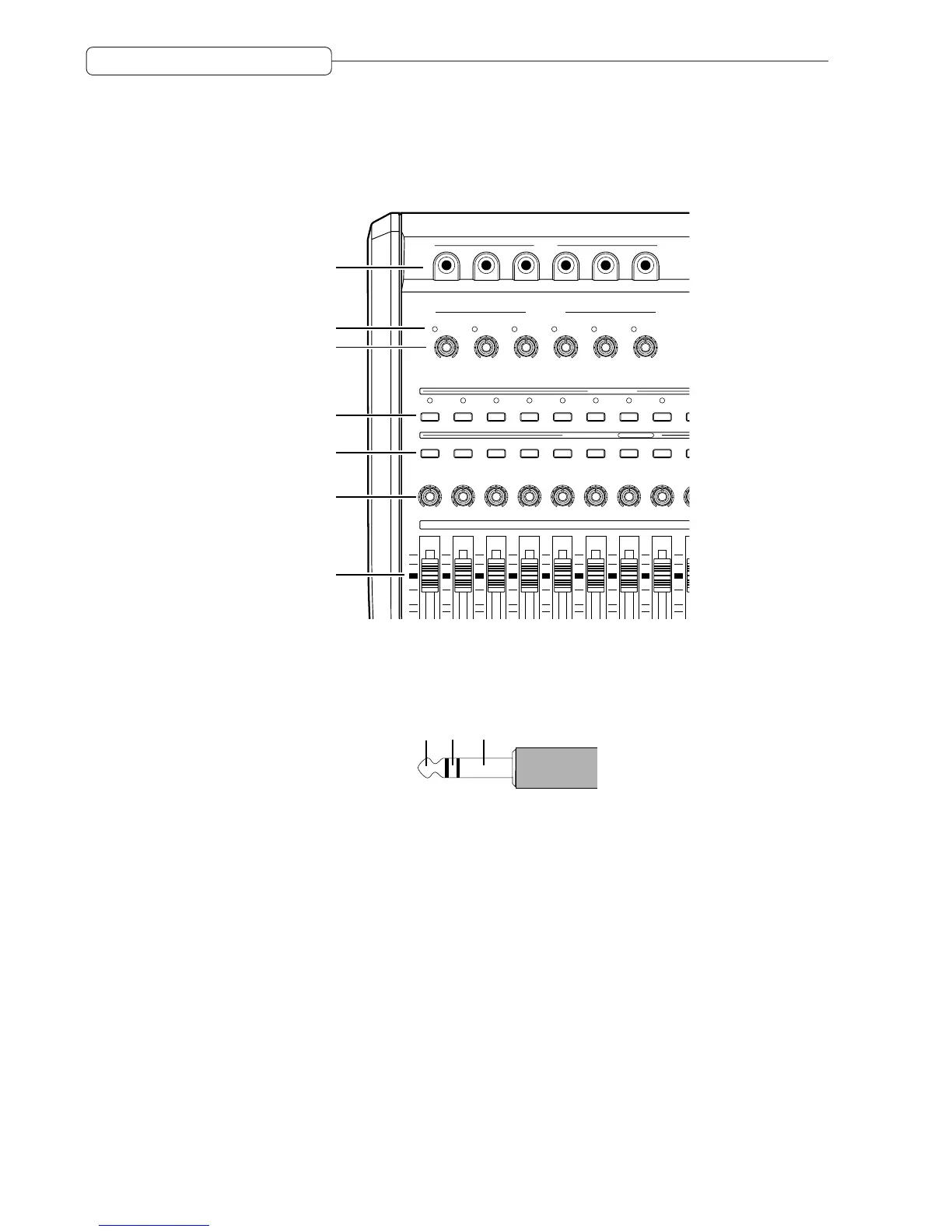

Top panel
1 2 3 4 5 6
INPUT
1
C
R
L
2
C
R
L
3
C
R
L
4
C
R
L
5
C
R
L
6
C
R
L
7
C
R
L
8
C
R
L
L
1
OVER
MICLINE
2
OVER
MICLINE
3
OVER
MICLINE
4
OVER
MICLINE
5
OVER
MICLINE
6
OVER
MICLINE
INPUT GAIN
RECORD SELECT
CHANNEL SELECT
QUICK LOCATE
ABCDEFG
12345678
12345678
H
12345678
12345678
A
B
C
D
E
F
G
1 INPUT jacks 1–6
Connect line-level electronic instruments, such as a synthesizer, and microphones to these analog input jacks.
The signal input from these jacks will be routed to the tracks of the recorder section or to the mixer section,
depending on the settings. These input jacks accept balanced stereo signals.
GroundColdHot
Balanced signal input
2 Peak indicators
These indicators light up when the signals input from the INPUT jacks 1–6 clip.
3 [INPUT GAIN] controls 1–6
Use these controls to adjust the gain of the signals input from the INPUT jacks 1–6.
4 [RECORD SELECT] keys
Use these keys to select a recording track (physical track). When these keys are turned on, the LEDs above
them flash, indicating that the corresponding tracks enter recording-standby mode. Pressing the keys again will
cancel the standby mode. When the [SOLO] key (J) is turned on, these buttons are used to select solo chan-
nels.
5 [CHANNEL SELECT] keys
These keys are used to select channels for edit or mixer operations. They are also used to specify the locate
point for the Quick Locate function.
6 [PAN] controls
These knobs are used to adjust the panning (stereo position) of the TRACK MIX channels.
