5
Chapter 1: Outline of the DPS12
• [ ] button ............ This button is used to rewind. Pressing this button while the transport section is
stopped causes the time counter on the display to count backward at high speed.
Pressing and holding down this button during playback causes fast reverse playback
for as long as you hold it down (Review).
• [ ] button ............ This button is used to fast forward. Pressing this button while the transport section is
stopped causes the time counter on the display to count forward at high speed.
Pressing and holding down this button during playback causes fast playback for as
long as you hold it down (Cue).
V [MASTER] fader
This fader adjusts the master level of the mixer section.

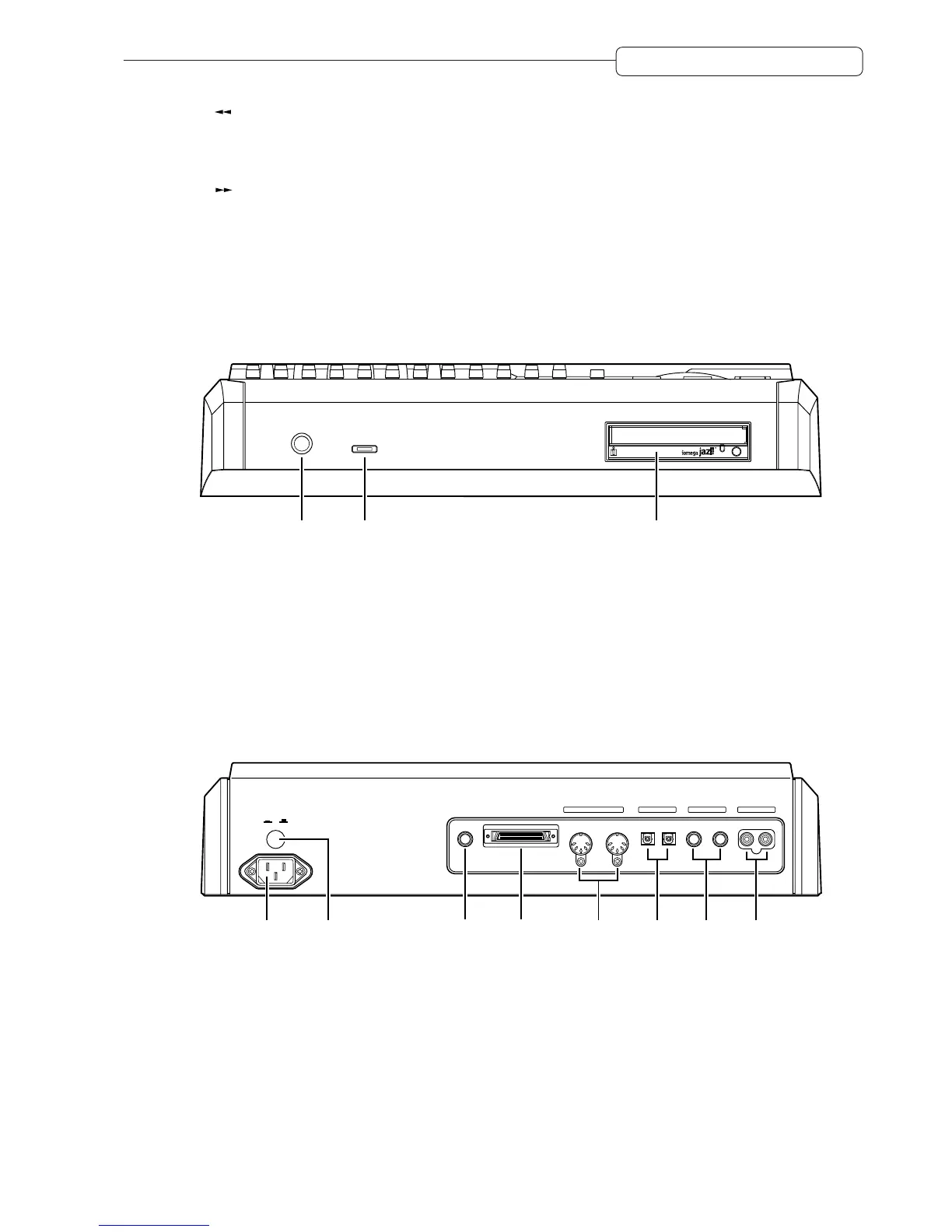

Front panel
PHONES
LEVEL
MAXMIN
A B C
1 PHONES (headphones) jack
Connect monitoring headphones to this jack, which outputs the same signal as that output from the MASTER
OUT jacks on the rear panel.
2 LEVEL (headphones level) control
This control adjusts the volume level of the headphones connected to the PHONES jack.
3 Internal drive (JAZ drive)
This is reserved for mounting internal drive.
Rear panel
POWER
ON
OFF
FOOT SW. SCSI
MIDI
OUT/ THRU IN
OPTICAL AUX SEND MASTER OUT
OUT IN A B L R
HG FE DCBA
1 MASTER OUT L/R jacks
These jacks output a stereo signal that is a mix of each channel (TRACK MIX channels + THRU MIX
channels) of the mixer section.
2 AUX SEND (AUX send) A/B jacks
These jacks output a signal from each channel of the mixer section (TRACK MIX channels + THRU MIX
channels) to Send A/B. (If AUX TYPE is set to STEREO, a left signal and right signal will be output from jack
A and jack B respectively.)
To Next Page
