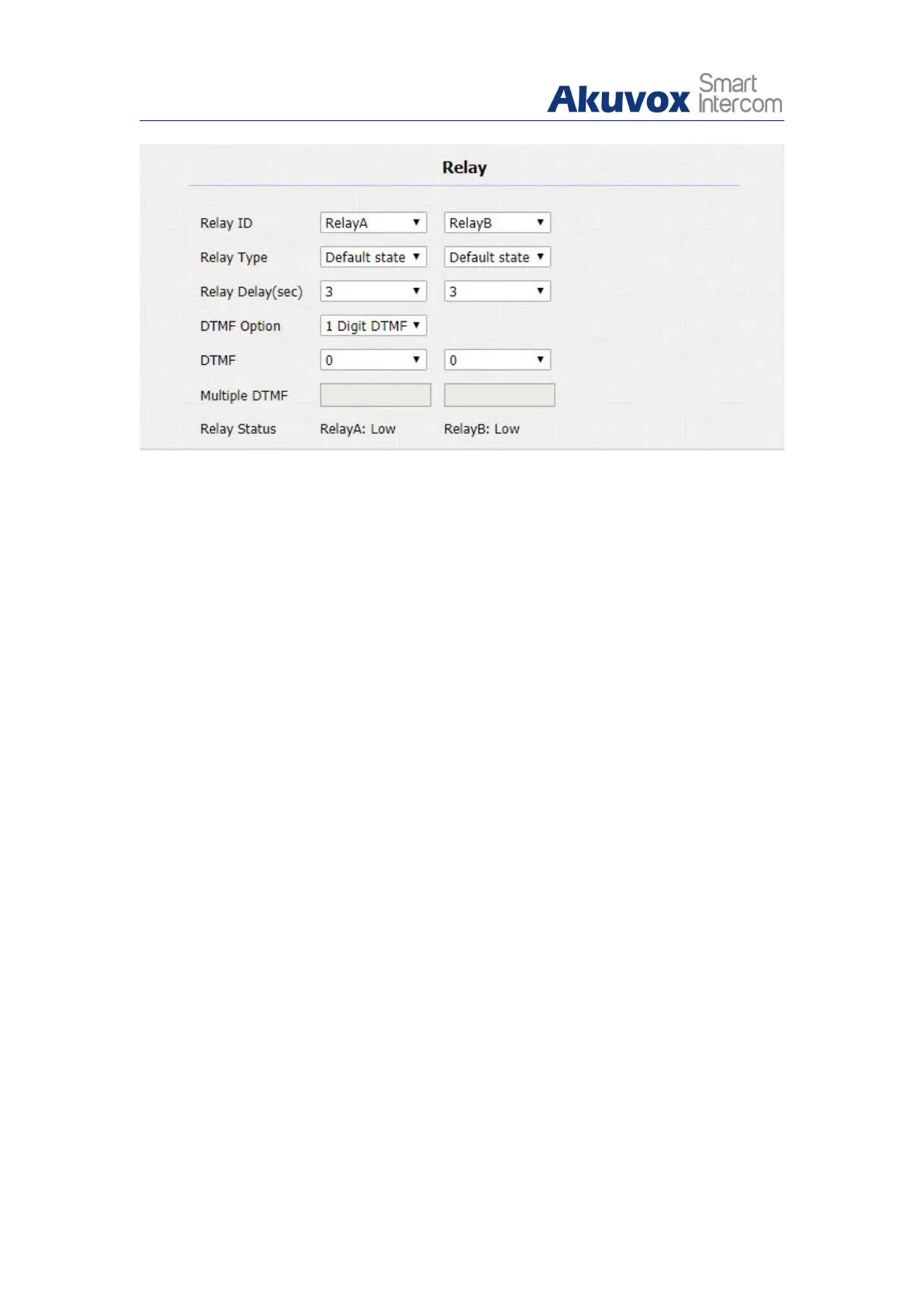

Relay ID: You are allowed to set up three relay switches in total for the
door access control (Relay A, Relay B).
Relay Delay (Sec): Set the relay hold delay timing ( Ranging from 1-10
Sec.) For example, if you set the hold delay time as “ 5” Sec. then the relay
will be delayed for 5 min after the door is unlocked.
DTMF Option: Select the number of DTMF digit for the door access
control (Ranging from 1- 4 digits ) For example, you can select 1 digit
DTMF code or 2-digit DTMF code etc, according to your need.
DTMF: Set the 1-digt DTMF code within range from ( 0-9 and *,#) if the
DTMF Option is set as “1-digit”.
Multiple DTMF: Set the DTMF code according to the DMTP Option
setting. For example, you are required to set the 3-digits DTMF code if
DTMF option is set as 3-digits.
Relay Status: Relay status is low by default which means normal close.
To do the extra DTMF configuration on the web interface, you can do as
follows:
1. Click Account - Advanced to find DTMF.
2. Choose suitable DTMF parameters and click Submit to save.
