Chapter 2 Design an Enhanced Redundancy System
This graphic shows an example ControlLogix enhanced redundancy system,
revision 19.053 or later, that uses EtherNet/IP networks.

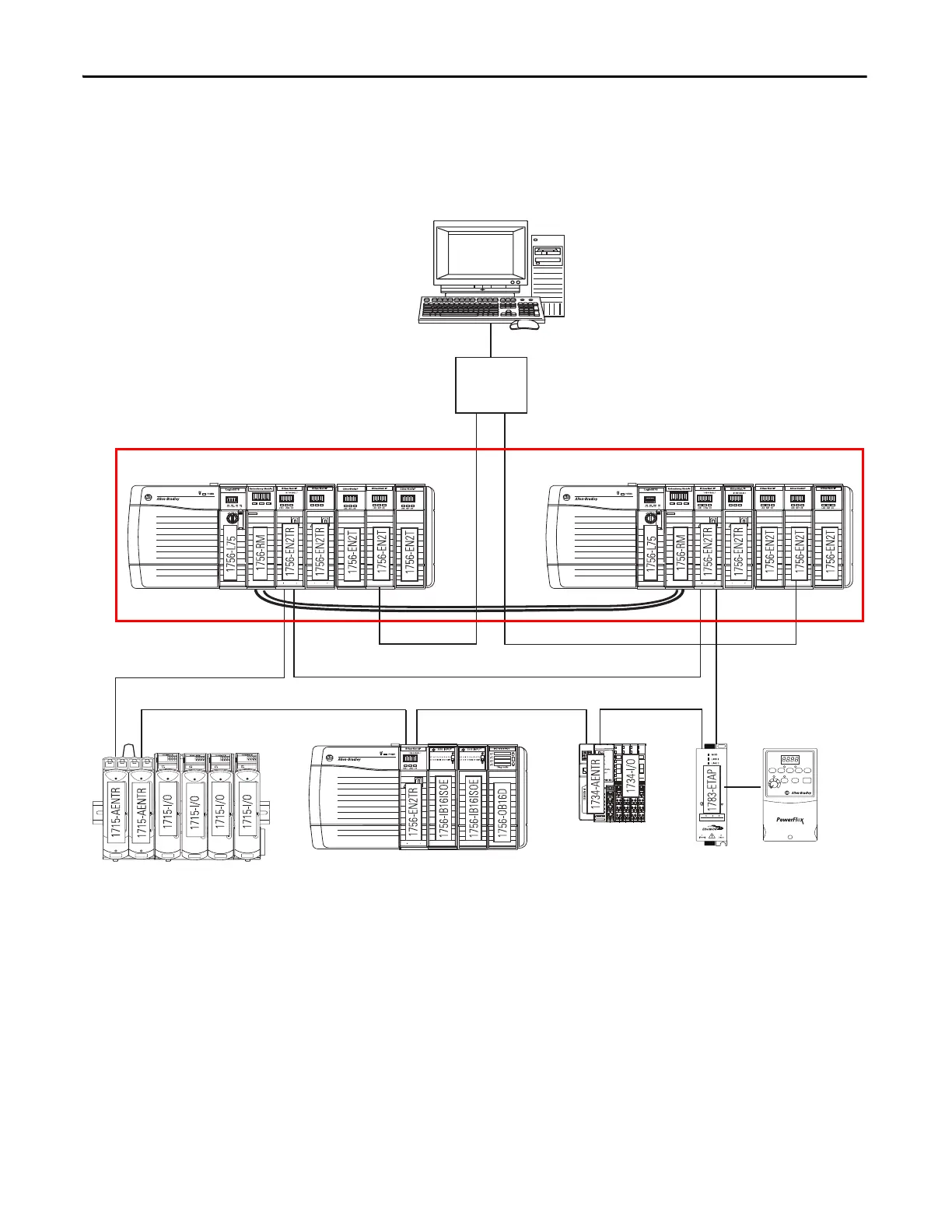

Figure 1 - Example ControlLogix Enhanced Redundancy System, Revision 19.053 or later, Using an
EtherNet/IP Network
2
2
CH2 CH1 OK
CH2 CH1 OK
Redundant Chassis Pair
EtherNet/IP
Switch
1756 ControlLogix I/O
Workstation
1715 Redundant I/O PowerFlex® Drive Connected via
1783-ETAP
1734 POINT I/O™
