74 Rockwell Automation Publication 1756-UM535D-EN-P - November 2012
Chapter 3 Install the Enhanced Redundancy System
Qualification Status via the RMCT
To view the qualification attempt, access the Synchronization or Synchronization
Status tabs of the RMCT. These tabs provide information about qualification
attempts and redundant chassis compatibility.
For more information about using the RMCT, see Chapter 6
, Configure the
Redundancy Modules on page 105.

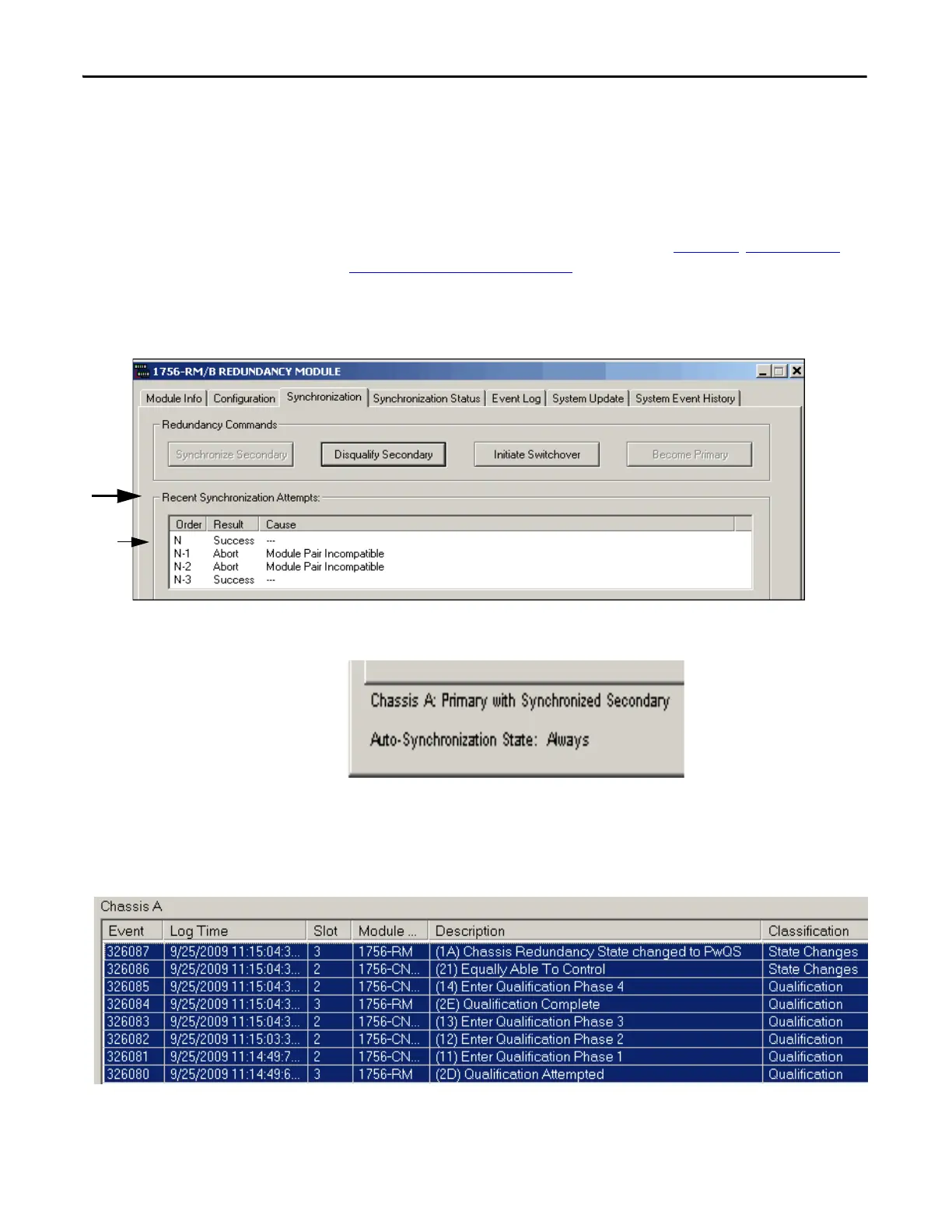

Figure 14 - RMCT Synchronization Status Tab
Figure 15 - Synchronization Status Tab for Chassis Compatibility
In addition, you can view events specific to qualification in the Event Log of the
RMCT.
Figure 16 - Event Log with Qualification Events
