Appendix C Upgrade from a Standard Redundancy System or to Another Enhanced Redundancy System
Upgrade Ethernet Modules
When Rotary Switches Are Set
between 2…254
This section includes the procedure to upgrade your Ethernet communication
modules when the modules rotary switches are set to 2…254 and you are unable
to interrupt the primary.
Before starting the following steps, complete steps
1…5 on page 250.
If your system is controlling a process and using rotary switches, follow these
steps.
1. Set the mode switch of the primary and secondary controllers to REM.
If the redundant controllers in both chassis of the redundant chassis pair
are not in Remote Program (REM) mode, the redundancy firmware
upgrade cannot be completed.

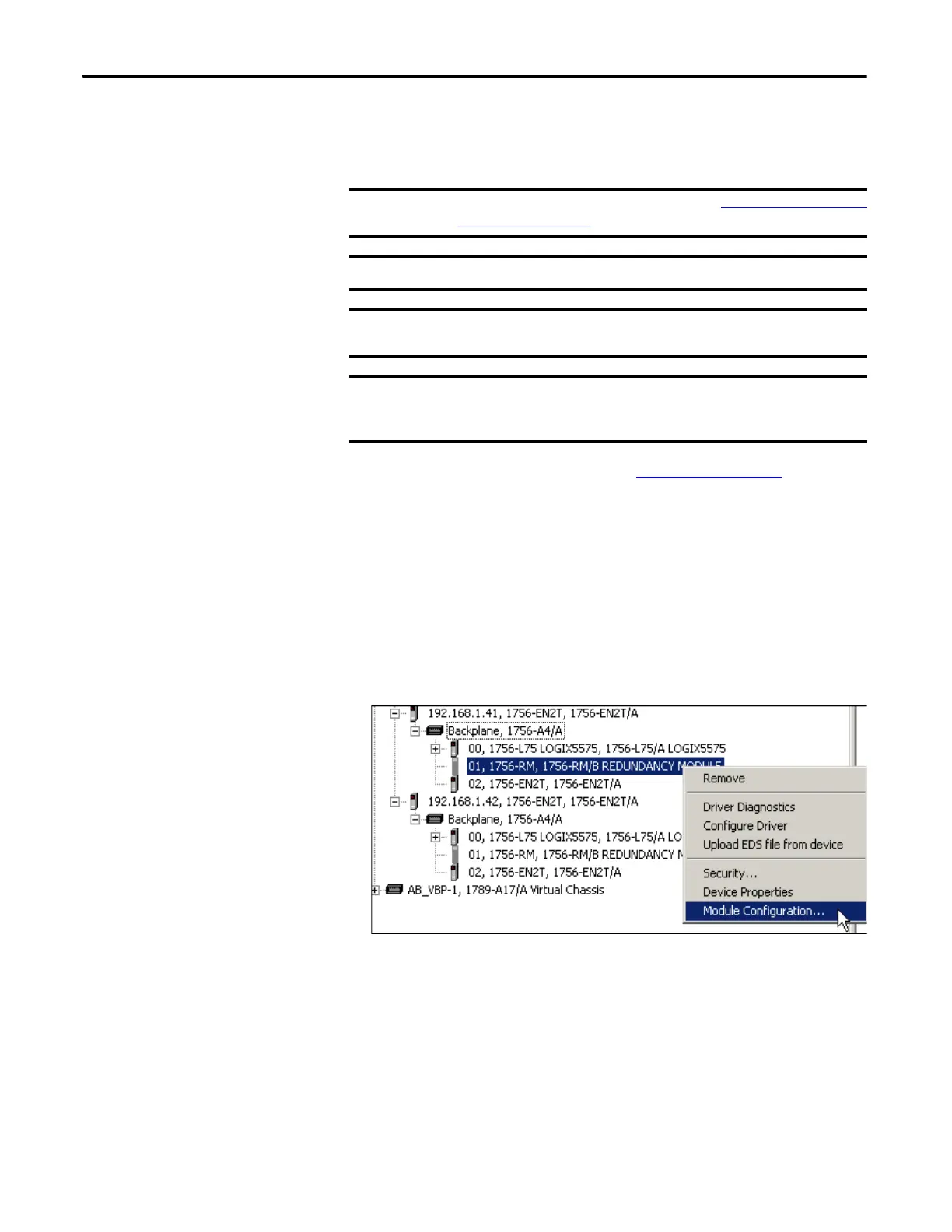

2. Open RSLinx Classic software and browse to the redundancy module.
3. Right-click the redundancy module and choose Module Configuration.
4. Click the Configuration tab.
This procedure must be executed before steps 6…12 of Upgrade by Using Redundancy
System Update on page 250.
This is a change from prior releases’ upgrade procedures.
Please note, you must be physically present at the location where the redundant
chassis are located to do this upgrade.
You can only upgrade from firmware revision 19.052 or later to firmware revision
20.054. These steps apply when upgrading from firmware revision 19.052 or later to
firmware revision 20.054.
