Rockwell Automation Publication 1441-UM001B-EN-P - September 2012 117
Loading and Unloading Chapter 4
Load Frequency Labels
With the Dynamix 2500 data collector and the Emonitor software, you can load
frequency labels so that you can use the Diagnostic Frequency cursor. The
frequency labels are the items in the Label column in the Frequency Output pane
in the Emonitor software.
Follow these steps to load frequency labels.
1. Select Tools > Load/Unload.
2. Click Load Options.
The Load Options dialog box appears.
3. Check the Load Frequency Labels checkbox.
4. Click OK.
Override the Collect On Alarm Setting
With the Emonitor software you can collect and store a spectrum or time
waveform when a magnitude measurement at the same location is in alarm. You
do this by setting the Collect and store condition in the storage specification for a
spectrum measurement definition to On Magnitude Alarm.
At some point you may want to collect a spectrum or time waveform even when
the magnitude measurement is not in alarm. For example, you may want to
collect a spectrum the first time you collect data for the machine. Instead of
changing the storage specification, you can Override collect on alarm in the Load
Options dialog box.
Follow these steps to override the Collect On Alarm setting.
1. Select Tools > Load/Unload.

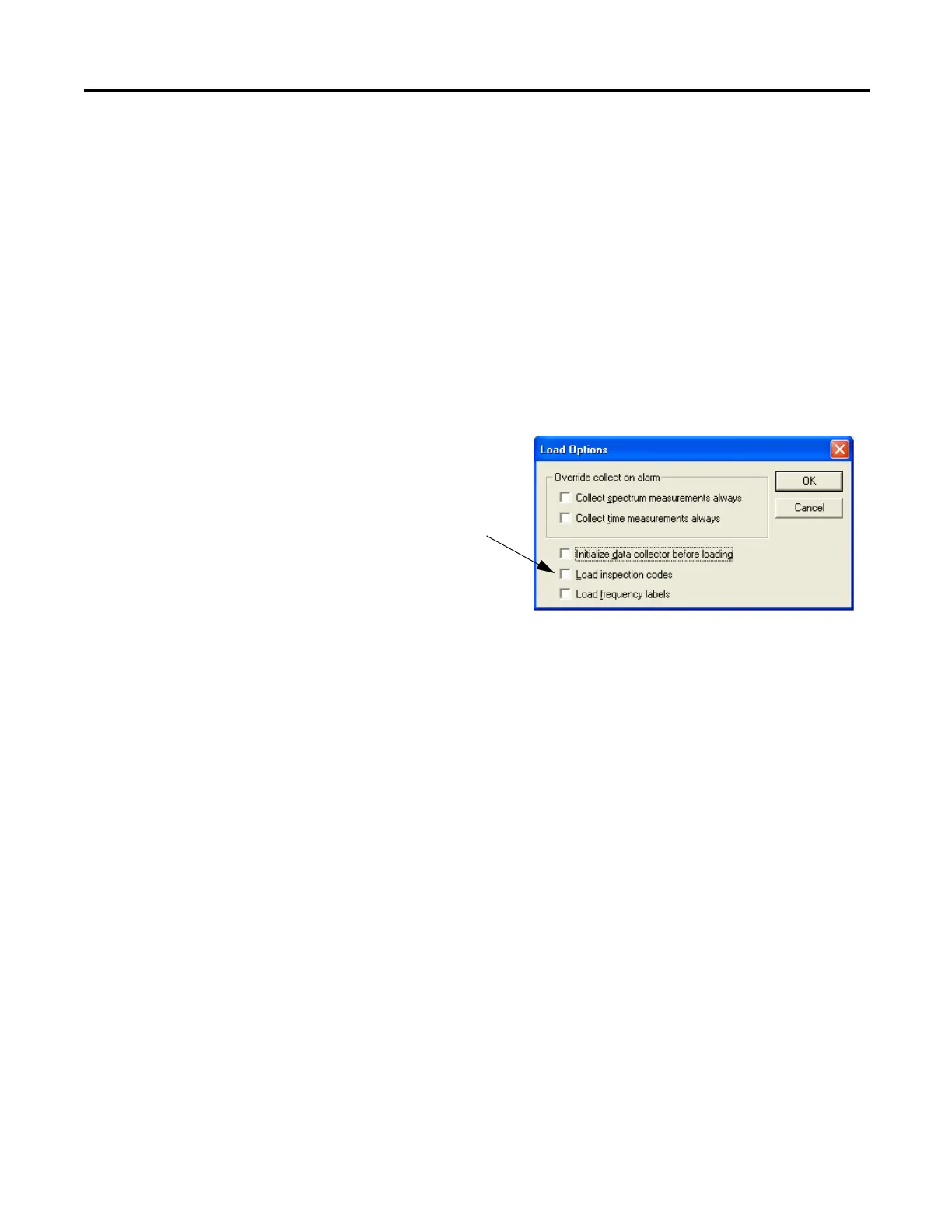

Check to load
frequency labels.
