138 Rockwell Automation Publication 1441-UM001B-EN-P - September 2012
Chapter 5 Collecting and Reviewing Data
Manually Enter a Numeric Measurement
Using a route that is configured the Emonitor software, the data collector displays
a field on the Collecting Data screen that lets you type in a value for a reading.
Follow these steps to manually enter a numeric measurement.
1. In the Emonitor Software, create a Manual route and upload to the data
collector.
See the Emonitor User Manual publication, EMONTR-UM001
for
information about creating routes and loading them into the data collector.
2. From the Data Collection screen, press Enter.
The Route Manager Screen Appears.
3. Select the manual route that you loaded to the data collector.
4. Press Enter to start your measurement for the current point.

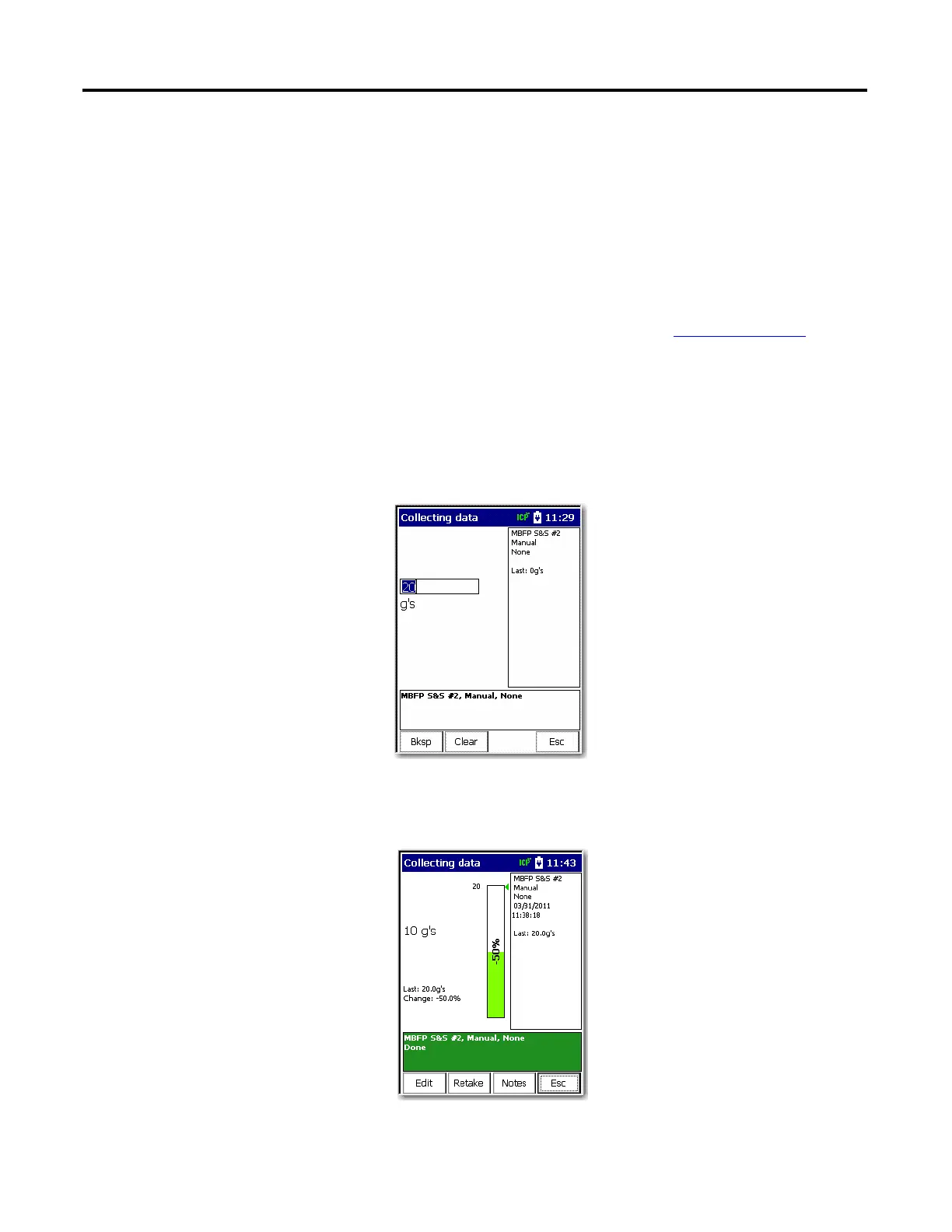

The Manual Entry Process Measurement screen appears.
5. Type a value between zero and the full scale.
6. Press Enter to accept the value.
7. Press Enter to go to the next measurement and continue data collection.
Press F1 (edit) to edit the value.
Press F2 (Retake), after you have
changed the value.
Press F3 (Notes) to view and Notes
that you loaded from the Emonitor
software.
Press F4 (Esc) if you do not want to
keep the current measurement.
