Rockwell Automation Publication 1441-UM001B-EN-P - September 2012 51
Configuring the Dynamic 2500 Data Collector Chapter 2
Dynamix 2500 Data
Collector Data Collection
Screen
The basic operations of the instrument includes changing your display contrast,
resetting the data collector, setting the date, time, and date format.
The Data Collection screen lets you do the following:
Navigate around the routes loaded in the data collector.
Collect and store Route and Offroute data.
Edit the data collection options.
Navigate through the stored data and to review previously collected Route
and Offroute data.
When you select Data Collection from the Main Menu, the Route Manager
screen appears
All of the routes that you download from Emonitor to the data collector appear
on the Route Manger screen.
Follow these steps to open a Route.

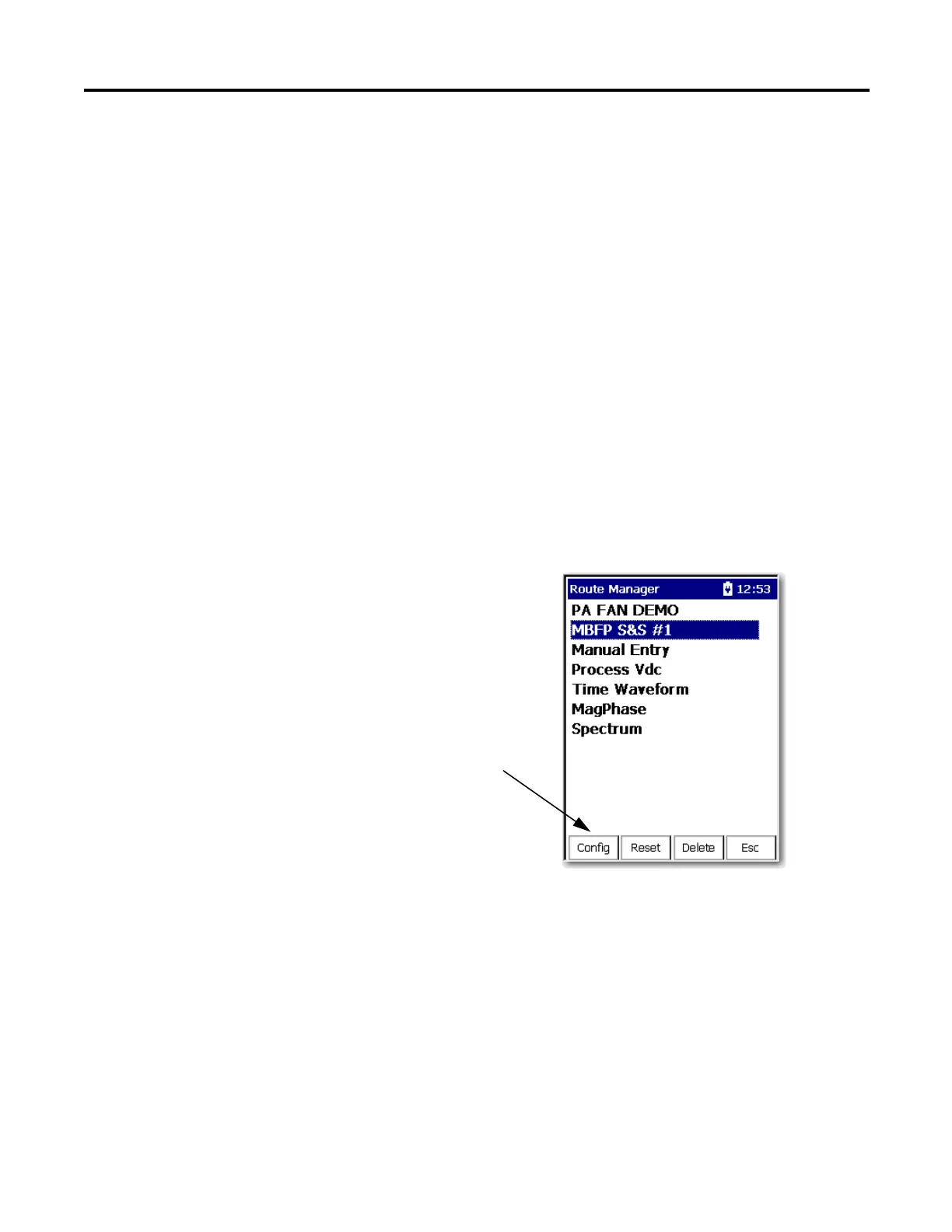

1. Select the route and press Enter.
Displays the instrument
configuration screen, which lets
you access global data collection
settings.
If you press 0, the Help button
appears in the next level of
function keys.
