Rockwell Automation Publication 1441-UM001B-EN-P - September 2012 133
Collecting and Reviewing Data Chapter 5
Move through a List
There are several methods for moving through a list:
• If you set Auto Store to On in the Instrument Configuration screen, the
data collector automatically goes to the next measurement in the list.
• If you set Auto Store to Off, the data collector goes to the next
measurement when you press Enter to accept the measurement.

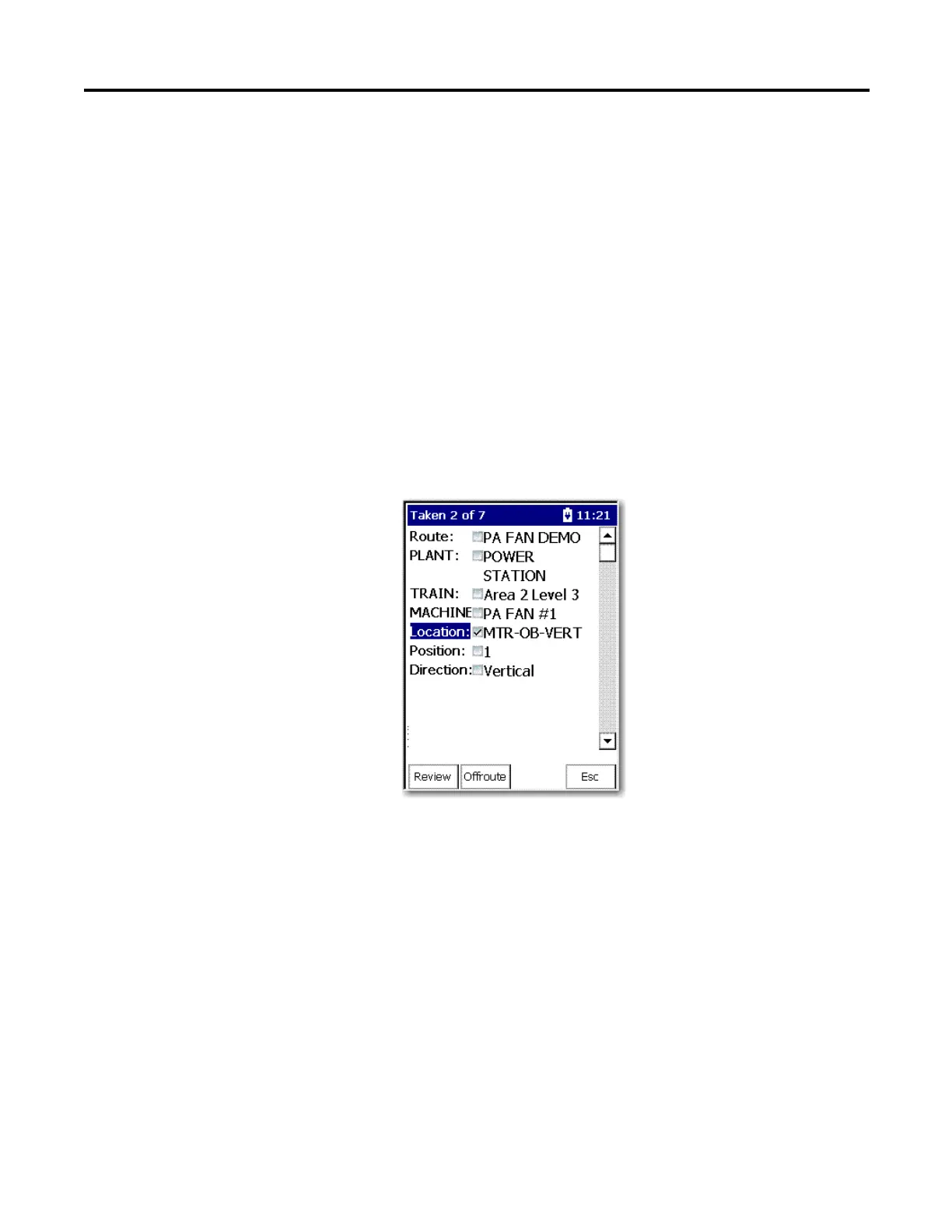

You can also move between items on a route in the Data Collection window
without collecting data. You can skip a measurement point or an entire machine if
necessary and continue with the list. You can exit Data Collection mode at any
time by exiting the Data Collection screen.
Follow these steps to move to another a measurement or machine.
1. Select the desired hierarchy level (Plant, Train, Machine, and Location).
2. Press the Right arrow key.
