196 Rockwell Automation Publication 1441-UM001B-EN-P - September 2012
Chapter 6 Multi-channel Measurements
Magnitude and Phase
Offroute Measurement

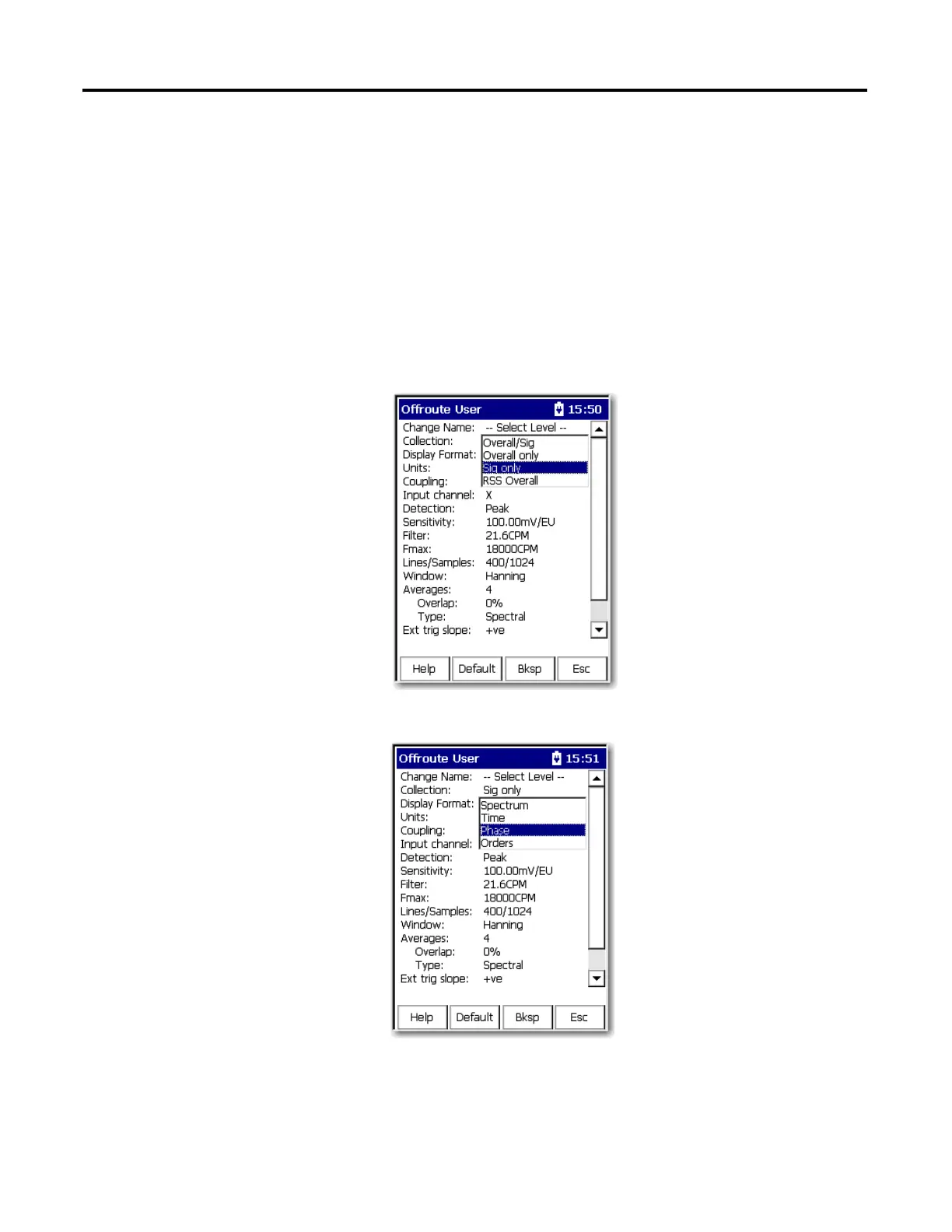

Follow these steps to collect a magnitude and phase measurement Offroute.
1. From the Route Manager screen, select the route that you setup in the
Emonitor software as magnitude and phase.
2. Press Enter.
3. Press F2 (Offroute).
4. Press F2 (User).
5. Set Collection to Sig Only.
6. Set Display Format to Phase.
