198 Rockwell Automation Publication 1441-UM001B-EN-P - September 2012
Chapter 6 Multi-channel Measurements
Collect Multi-channel Measurements
For multi-channel measurements, the cursor operates simultaneously on all
traces, even when hidden. This applies to adjustments using the Up and Down
arrows (amplitude axis), and the +/- adjusts the display/expand(frequency/time
axis).
See Connector A and Connector B Inputs on page 19
for complete
information on the connectors and related channels.
Taking a two or more channel point requires two or more sensors, using
Connector A and B. A multi-channel measurement displays a spectral for each

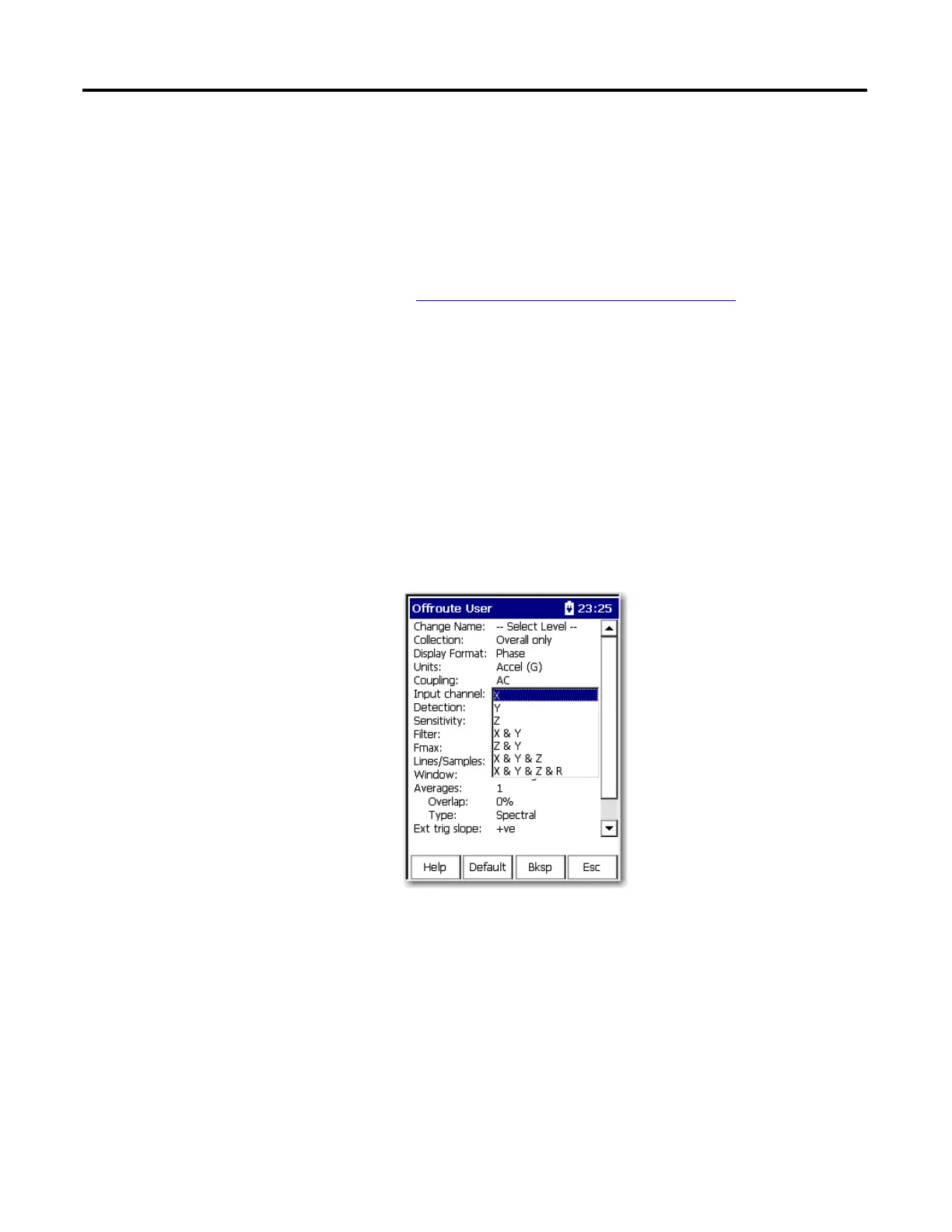

channel. On the Offroute User screen, you can configure Offroute multichannel
measurements.
Follow these steps to take a multi-channel measurement.
1. Connect the transducer and attach it to the correct location.
2. Select the Display format as Spectrum or Time.
3. Select the Input Channels X & Y & Z &R.
4. Press Enter to start the measurement.
