190 Rockwell Automation Publication 1441-UM001B-EN-P - September 2012
Chapter 6 Multi-channel Measurements
Review Cross Channel Phase Data

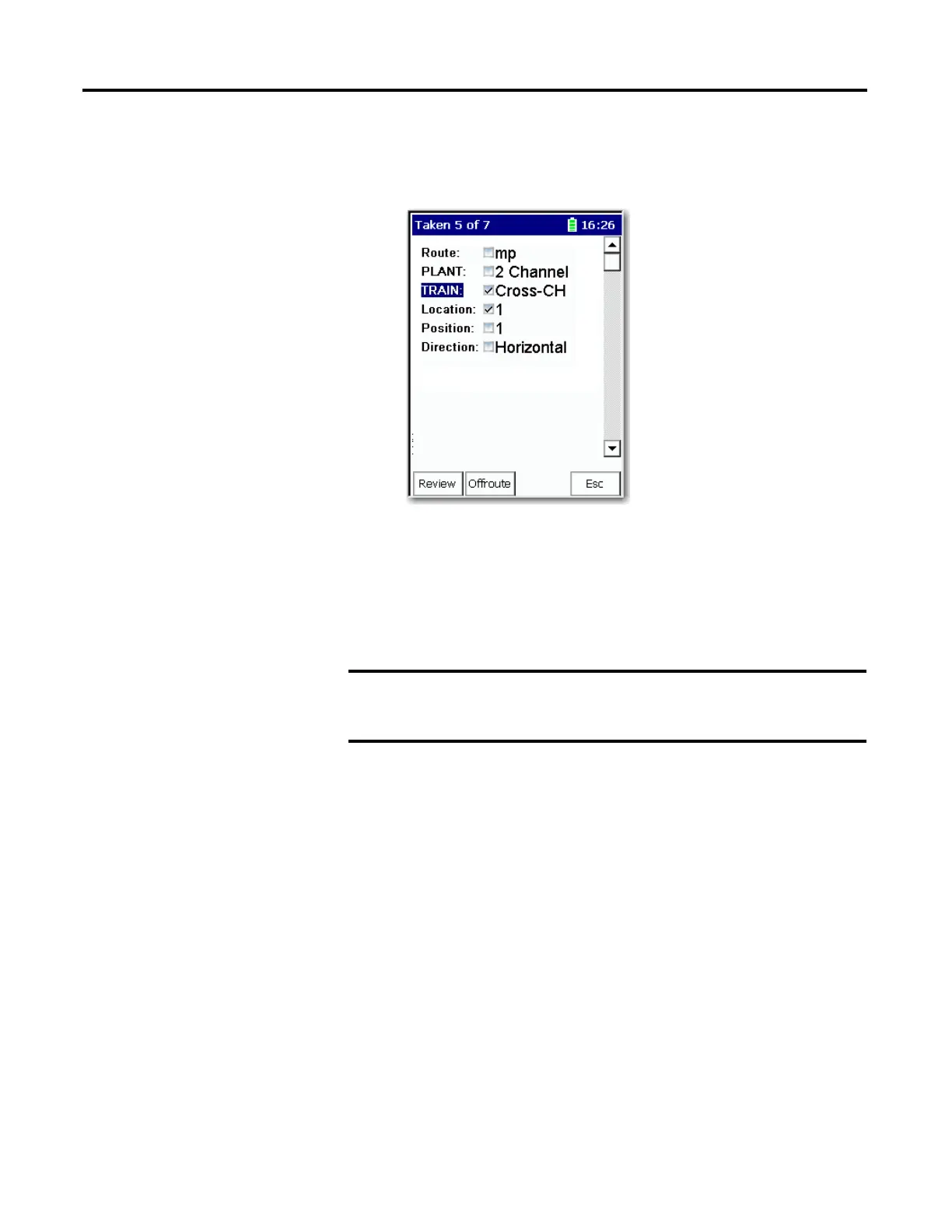

The data for you to review is displayed at the top of the Data Collection screen.
Review Route Data
1. From the Route Manager screen, select the route you need to view and
press Enter.
2. Press F1 (Review).
Review Offroute Data
1. From Route Manager screen, select the route to review and press Enter.
2. Press F2 (Offroute).
The Y-axis and X-axis are synchronized, which means the
cursors are in the same position on each trace. The X and Y axis
will move together, and magnify as the display is expanded.
