Rockwell Automation Publication 1441-UM001B-EN-P - September 2012 189
Multi-channel Measurements Chapter 6

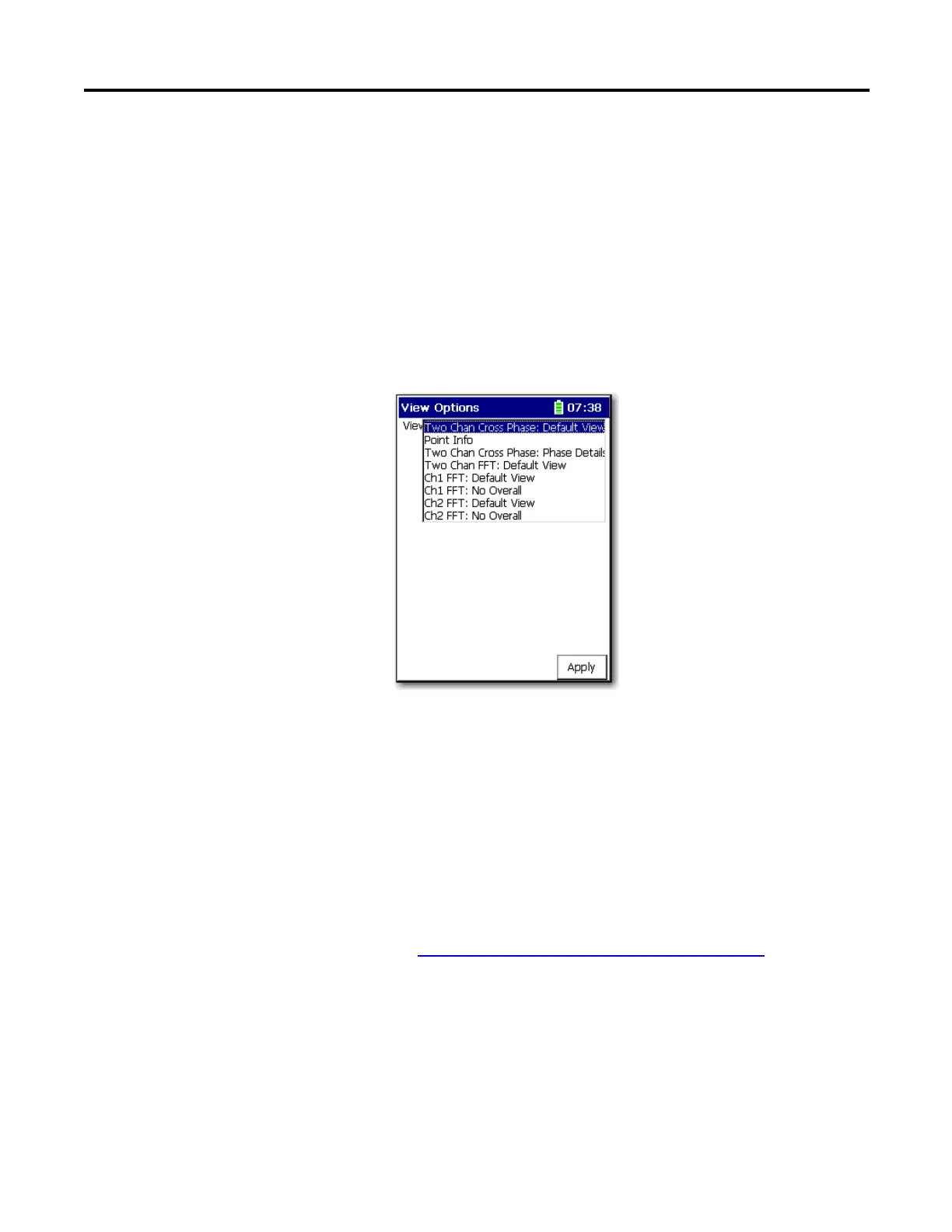

View Options
The View options for a cross channel phase point are the following:
• Two Chan Cross Phase: Default View
• Point Info
• Two Chan Cross Phase: Phase Details
• CH 1(X) FFT: Default View
• CH1 (X) FFT: No Overall
• CH2 (Y) FFT: Default View
• CH2 (Y) FFT: No Overall
The Y-axis and X-axis are synchronized, which means the cursors are in the same
position on each trace in the Signature Data screen. The X and Y axis will move
together, and magnify as the display is expanded:
• Press the Left and Right arrow keys to move the frequency cursor.
• Press the Up and Down arrow keys to move the amplitude cursor.
• Press the +/- key to expand and compress the spectrum plot.
• Press F3 (Notes) to assign inspection codes to each point.
The Dynamix 2500 data collector unloads the inspection codes when you
unload the unscheduled data to the Emonitor software.
See Inspection Codes and the Data Collector on page 105
.
3. Once the Dynamix 2500 data collector collects the measurement, press
Enter to accept the measurement.
