162 Rockwell Automation Publication 1441-UM001B-EN-P - September 2012
Chapter 5 Collecting and Reviewing Data
Review Route Data
Follow these steps to review previously collected route data.
1. From the Route Manager screen, select a route and press Enter.
2. Select a hierarchy level (Plant, Train, Machine, and Location).
3. Press the Right arrow key.

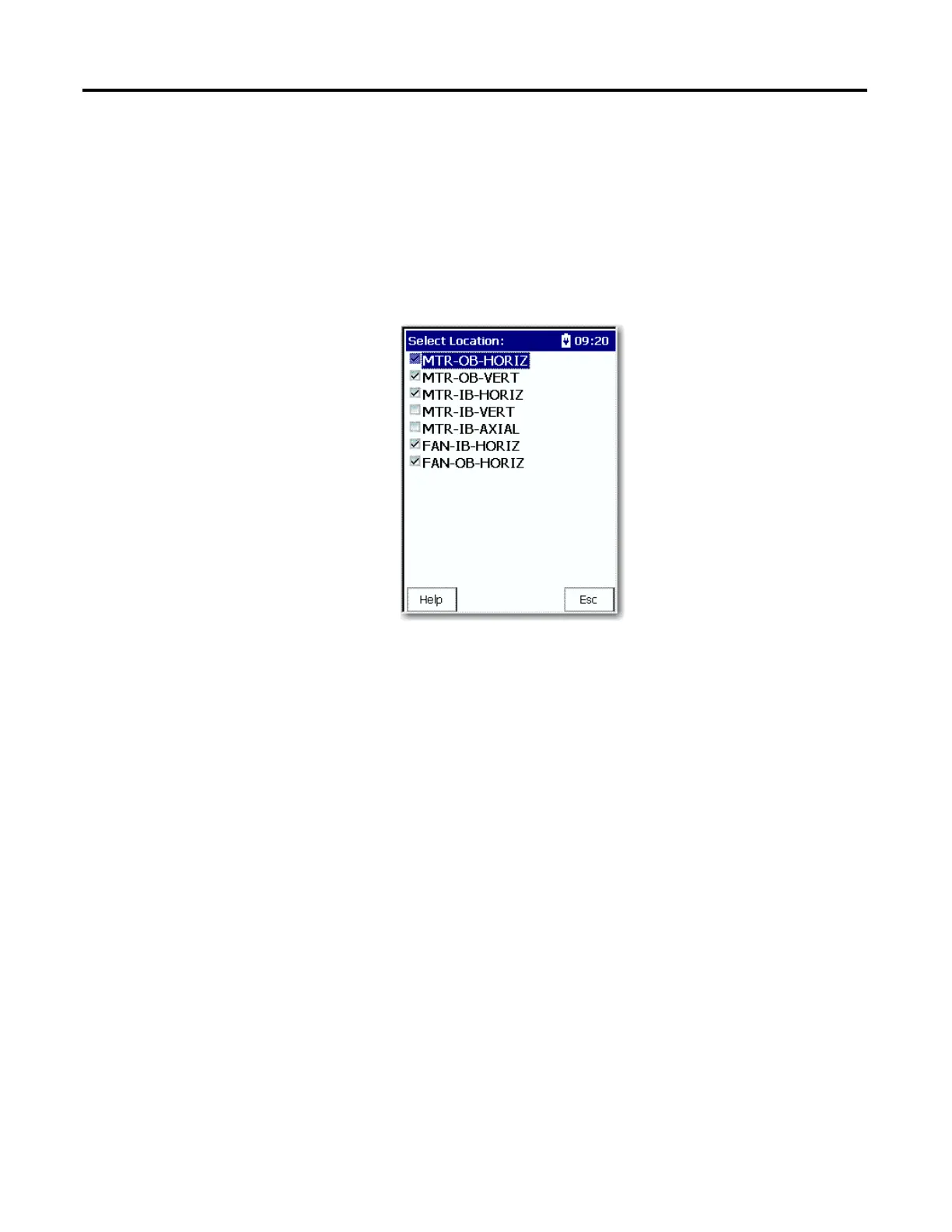

A Selection screen appears.
4. Select the item that you want to review and press the Left arrow key.
5. Press F1 (Review) to view the data.
Review Offroute Data
Follow these steps to review previously collected Offroute data.
1. From the Route Manager screen, select a route and press Enter.
2. Press F2 (Offroute).
To Next Page
