22 Rockwell Automation Publication 1441-UM001B-EN-P - September 2012
Chapter 1 The Dynamix 2500 Data Collector
Status Indicators
The Dynamix 2500 data collector has four status indicators located in the
upper-right side of the instrument nameplate.

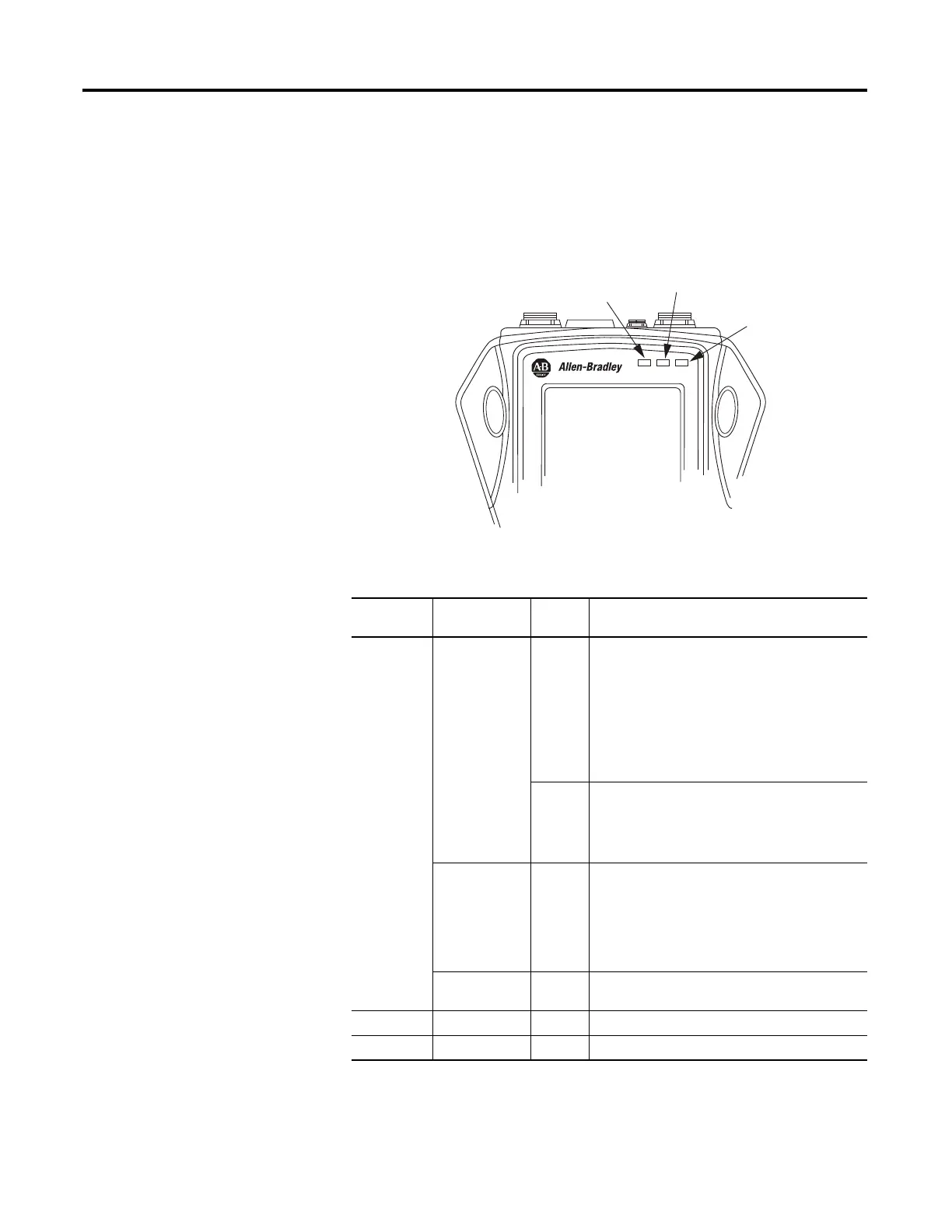

Figure 4 - Status Indicators
Table 7 - Status Indicators
Status
Indicator
Operation State Definition
Dual State
Status
Red
Charging Battery Flashing When first connected to the power adapter, the
Dynamix 2500 Data Collector tests the condition of
the battery pack. Within 30 seconds, the status
indicators should go to a solid state.
If the status indicator continues to flash, the
instrument has diagnosed a fault in the battery pack
and it will not charge the battery. The anomaly may
be that the cell temperature is too high or there is a
fault with the battery pack.
Solid The battery pack is OK. The power adapter is
connected to the instrument and charging. The
battery pack is maintained by a trickle charge from
the power adapter for as long as it remains attached
to the instrument.
Data Collection Solid • An alarm condition has been set.
• Input signal is out of range.
• ICP check has failed and there is an ICP fault
condition.
• The power adapter is connected to the
instrument.
Blue Communication Solid • Communicating to Emonitor through the USB
connection.
Amber Data Collection Solid Acquisition sub-system is settling.
Green Data Collection Solid Input signal is stable and data is ready to be stored.
Dual Status: Red and Blue
Green
Amber
