Rockwell Automation Publication 1441-UM001B-EN-P - September 2012 21
The Dynamix 2500 Data Collector Chapter 1
Connecting to the External Power Adapter
The external power adapter can be used to charge the internal battery and the
battery pack.
1. Connect the data collector to the DC output of the power supply to
the in-line socket of the USB power splitter cable.
2. Connect the Fischer plug into the POWER/USB/TRIGGER socket on
top of the instrument.
3. When needed, use the USB splitter cable to connect to a computer.
The interface is configured as a Client to provide an automatic connection
to a computer through the Microsoft ActiveSync software. This interface
lets you to copy files and transfer data from the data collector to your
computer.
See Install ActiveSync Software on page 108
for more information.

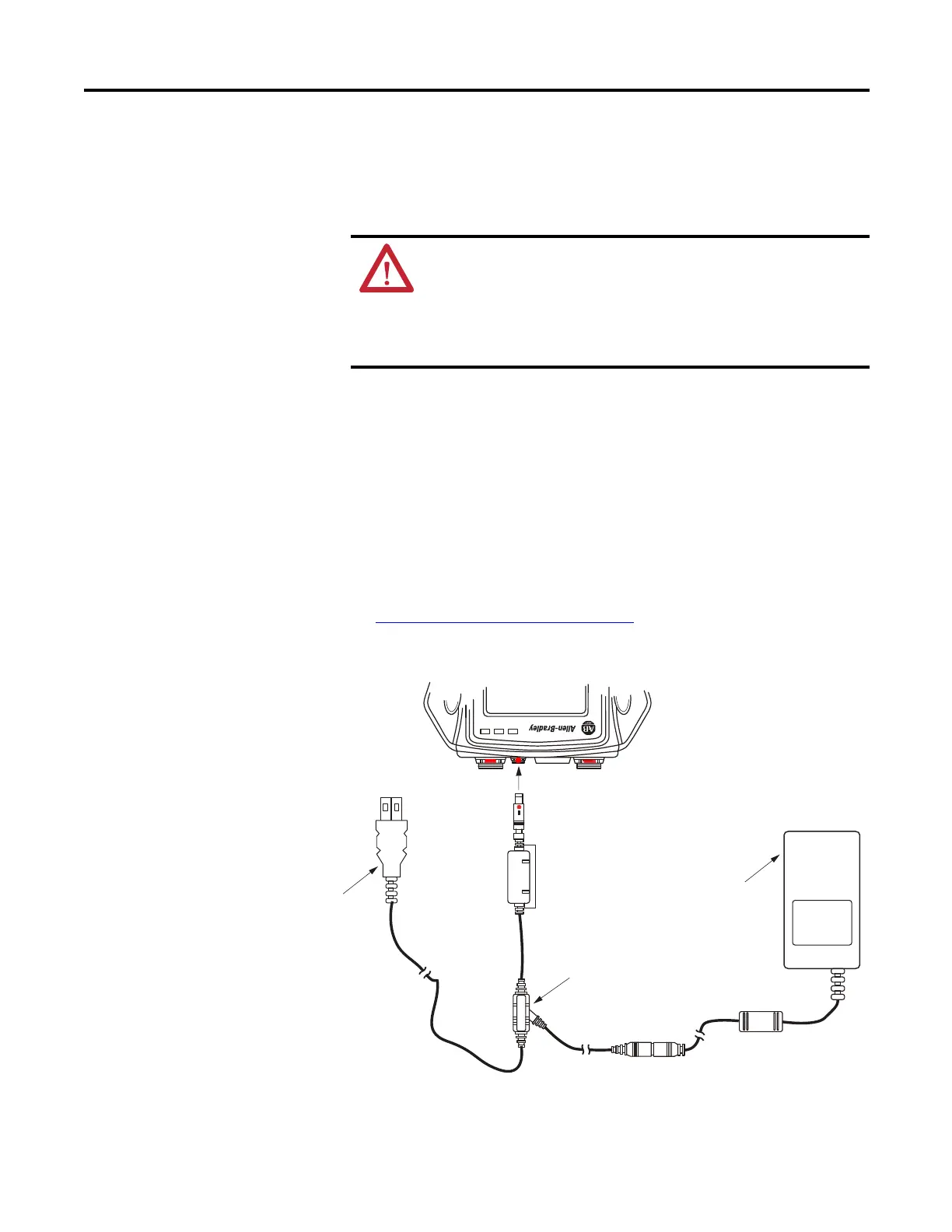

Figure 3 - The Dynamix 2500 Data Collector Connections for the
USB/Power Splitter Cable
WARNING: When you are powering or charging the data collector, place
the power adapter in a well ventilated area. The data collector may
overheat and cause a fire.
WARNING: Only the provided power supply may be used. Any other
supply may cause permanent damage to the data collector.
WARNING: Connect the power supply only in a safe nonhazardous area.
32145-M
External power
adapter
USB cable
In-line socket
Line red dots up to insert
