Rockwell Automation Publication 1441-UM001B-EN-P - September 2012 127
Loading and Unloading Chapter 4

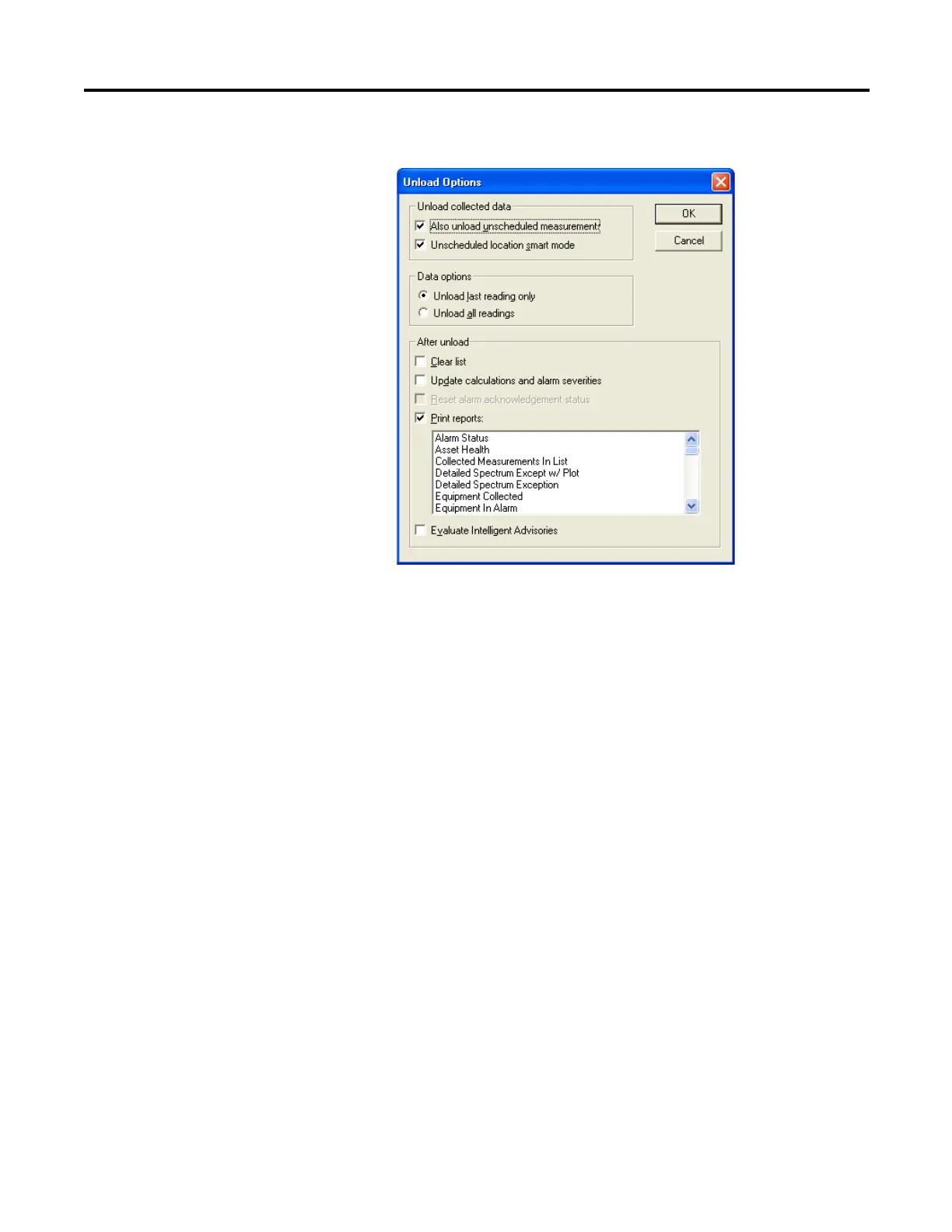

The Unload Options dialog box appears.
4. Check the Print reports checkbox and then select the reports you want the
Emonitor software to run automatically after unloading data.
5. Click OK.
Quickload Files
The Emonitor software rebuilds a Quickload file before loading it to the data
collector. These are the reasons why a Quickload file is created:
• The list is not stored with the ‘Use quickload file’ option selected.
• The measurement definitions in the list change.
• The inspection codes in the list change.
• The locations in the list change.
• The hierarchy level of items in the Hierarchy Tree that affect measurement
definitions in the list change.
• The collection specification of a measurement definition in the list
changes.
• The ‘Override collect on alarm settings (in the Load Option dialog box)
are selected.
• The list has been saved since last loaded.
