Rockwell Automation Publication 1441-UM001B-EN-P - September 2012 193
Multi-channel Measurements Chapter 6
The current group number appears in the Group column. Make sure you
assign the locations the same group number. The group is then loaded with
the list to the Dynamix 2500 data collector.

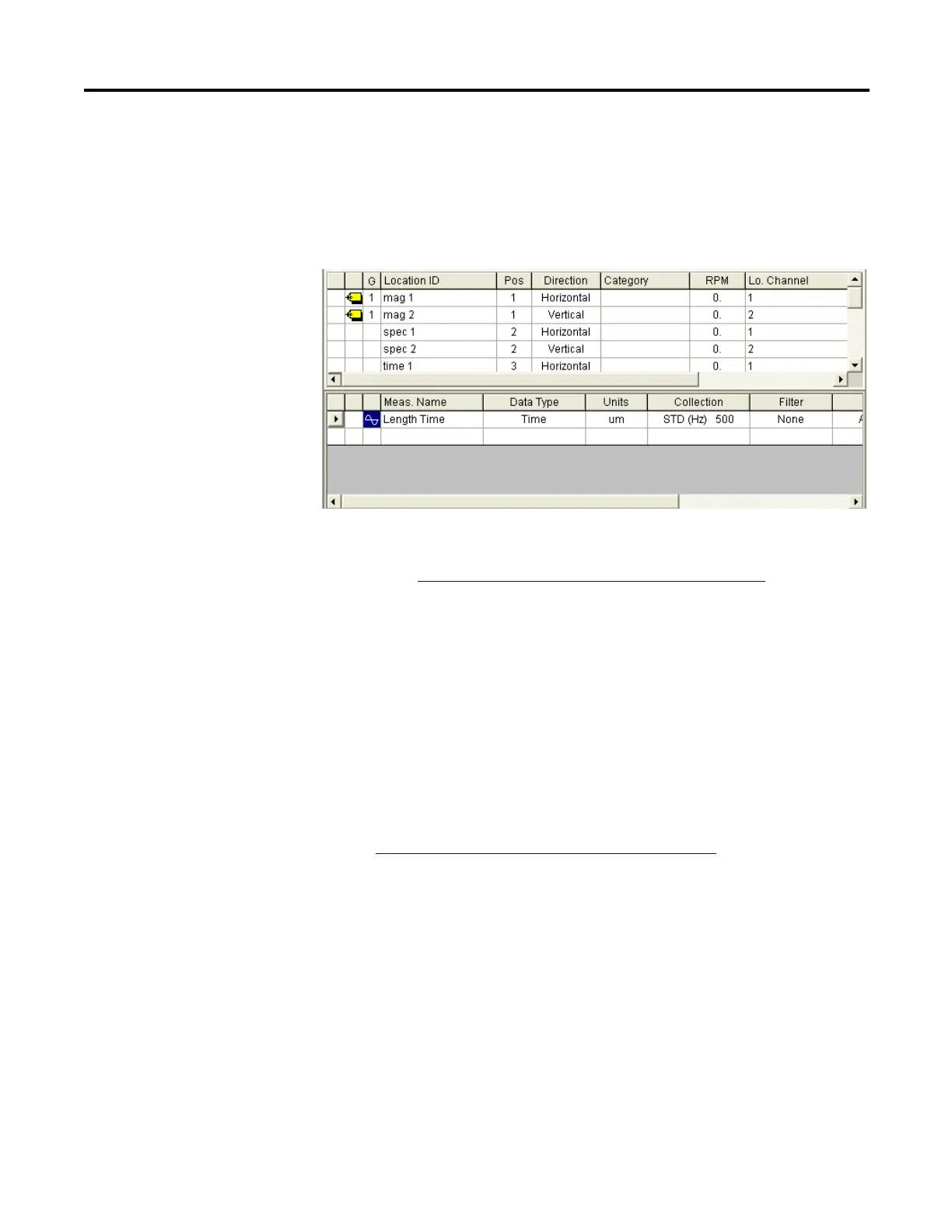

This figure shows a typical setup for a dual channel measurement.
Figure 9 - Dual Channel Measurement Definitions
9. Connect the data collector to the computer and load the list to the unit.
See Load Selected Lists to the Data Collector on page 119
.
10. Once you have prepared the unit for data collection, select the route and
collect the dual channel measurement.
Collect an Offroute Dual Channel Measurement
The Dual Channel Offroute measurement is configured by creating a user-
defined measurement point. The Dynamix 2500 data collector keeps the user-
defined parameters until you collect another measurement point or press F2
(Default) on the Offroute User screen.
See Create and Collect a User-defined Point on page 152
for more information.
1. Select Data Collection from the Main Menu and press the Enter key.
The Route Manager screen appears.
2. Select a route.
3. Press F2 (Offroute) to collect an Offroute measurement.
