Rockwell Automation Publication 1441-UM001B-EN-P - September 2012 191
Multi-channel Measurements Chapter 6

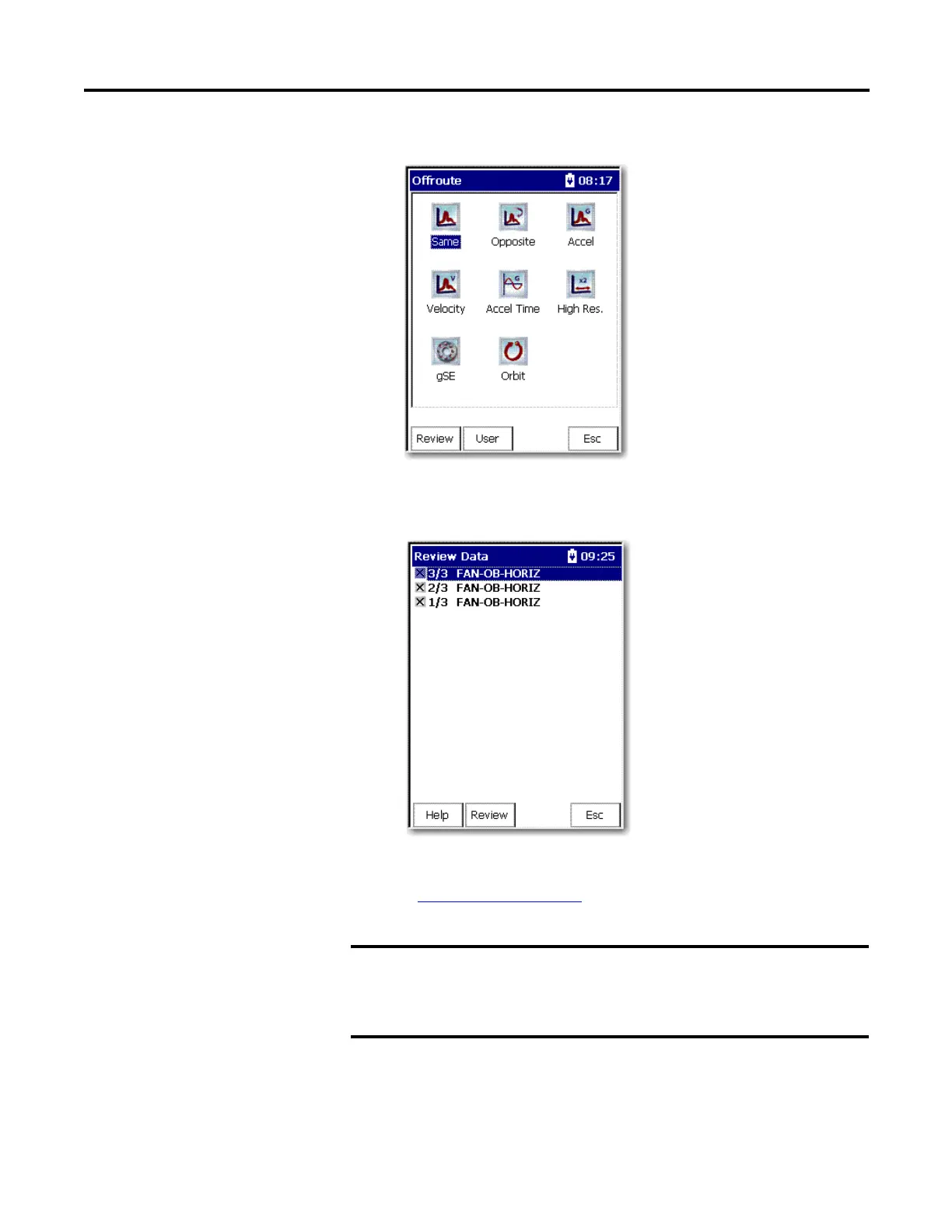

The Offroute screen appears.
3. Press F1 (Review) to review Offroute data.
The Review Data screen appears.
4. Select the point that you want to review and press F2 (Review).
See Review Data on page 164
for more information on the Signature Data
screen.
The Y-axis and X-axis are synchronized, which means the
cursors are in the same position on each trace in the Signature
Data screen. The X and Y axis will move together, and magnify
as the display is expanded.
