Chapter 2 Configuring the Dynamic 2500 Data Collector
The information for the first point taken appears.

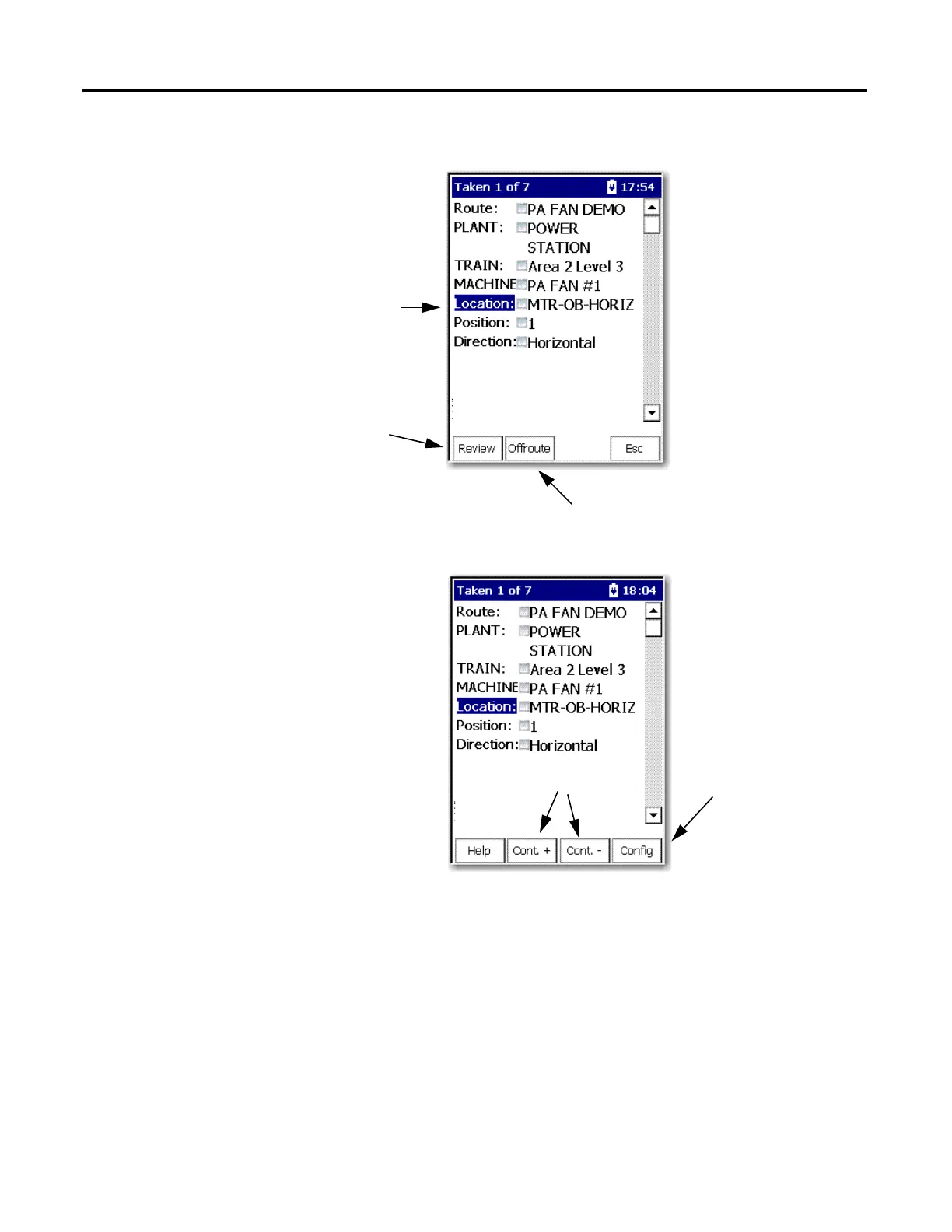

To access four additional functions for the Data Collection screen, press 0.
Follow these steps to move around in the Data Collection screen.
1. Select the hierarchy level, for example, Plant, Train, Machine, and
Location.
The Dynamix 2500 data collector supports up to six hierarchy levels for
each point. These levels are defined by the structure of the Route database
in the Emonitor software. The number and labels of these levels vary
according to the way your Route database was set up.
2. Display the next screen of information, for example, a list of location
measurement points, press the Right arrow key.
To highlight an item, press
the Up or Down arrow key.
To view previously
collected route data.
Collect and review Offroute data.
Displays the Instrument
Configuration screen.
Backlight adjustments
To Next Page
