Rockwell Automation Publication 1441-UM001B-EN-P - September 2012 53
Configuring the Dynamic 2500 Data Collector Chapter 2

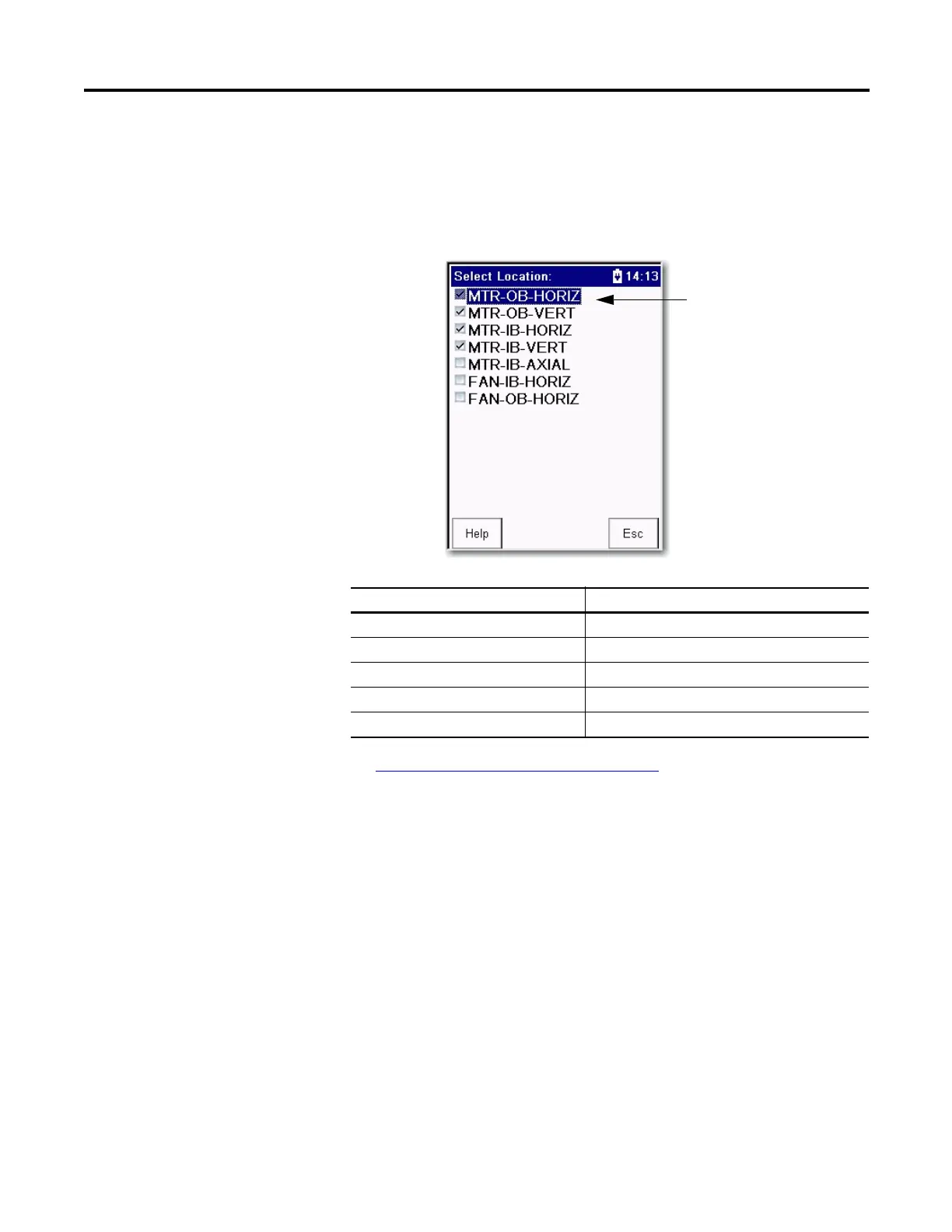

The Select Location screen appears.
See Collecting and Reviewing Data on page 129
for more information.
The Selection screen does not appear if you set the route
Navigation mode to `DataPac’ in the Setup Utility menu.
Instead, the Dynamix 2500 data collector automatically moves
to the next point in the route when you press the Right arrow.
Task Action
Select an item. Highlight the item and press the Left arrow key.
Leave the screen without selecting an item. F4 (Esc)
Start collecting data. Enter
Review previously collected route data. F1 (Review)
Collect and review Offroute data. F2 (Offroute)
Use the Up and Down
arrow keys to highlight the
point.
To Next Page
