Rockwell Automation Publication 1441-UM001B-EN-P - September 2012 143
Collecting and Reviewing Data Chapter 5
Follow these steps to take a spectrum measurement.
1. Attach the transducer to the current location.
2. From the Data Collection screen, press Enter.
The Route Manager Screen appears.
3. Select the spectrum route you uploaded from the Emonitor software and
press Enter to start your measurement for the current point.

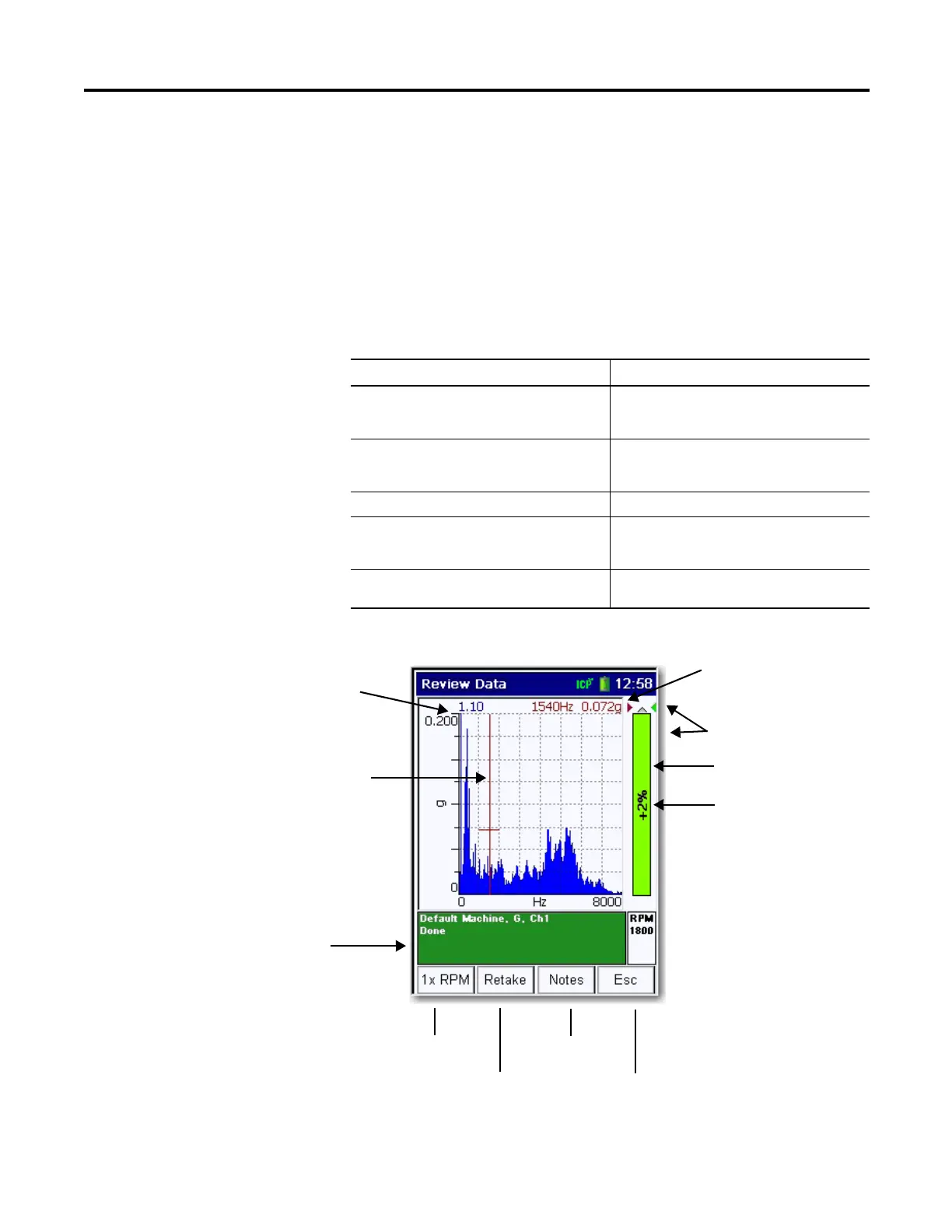

Figure 24 - Spectrum
Table 40 - Tasks Associated with Ranging the Measurement
If you Then
Previously collected a magnitude measurement
for the point
the spectrum measurement starts automatically
after you press Enter to accept the magnitude
reading
Set Auto Advance to On in the Instrument
Configuration screen
the Dynamix 2500 data collector automatically
goes to the next point in the list after it finishes
collecting the spectrum
Set Auto Advance to Off then the Signature Measurement screen appears
Set Fast Averaging to On in the Instrument
Configuration screen
the Dynamix collects the specified number of
averages before displaying the spectrum on the
screen
Set Fast Averaging to Off the Dynamix displays the spectrum while
collecting the averages
View / add coded
and type-in notes
Leave without
storing data
Retake the
measurement
Set cursor frequency
as running speed
Point information:
Machine name
Point ID
Point description
Alarm condition
Cursor
Overall value
Current cursor frequency
and amplitude
Alarm indicators
Previous measurement
indicators
Percentage difference from
previous measurement
