Rockwell Automation Publication 1441-UM001B-EN-P - September 2012 175
Multi-channel Measurements Chapter 6
12. Move to an empty row in the Location pane and choose Edit > Paste to
paste the new measurement definition into the spreadsheet.
13. Edit the new location.
Make sure you change the Location ID and set Lo. Channel to 2.
14. Now include these locations in a list.
You can create a new list or recall the current list. The locations must be
tagged to create a group list.
15. Double-click the Group column in the Location pane to add the two
locations to a group list.
The current group numbers appears in the Group column.
16. Assign the locations the same group number. The group is then loaded
with the list to the Dynamix 2500 data collector.

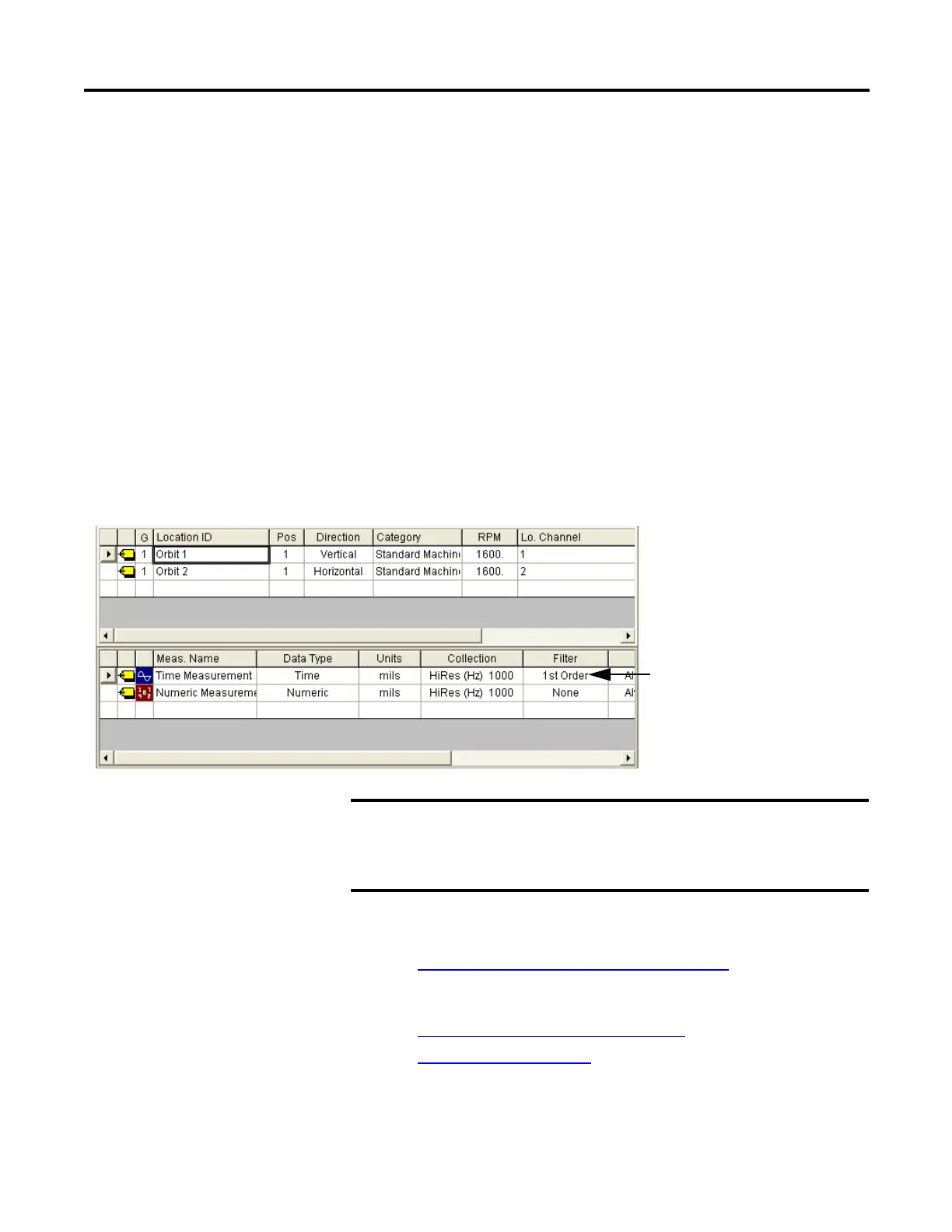

Figure 7 - Typical Orbit Measurement Setup.
17. Connect the data collector to the computer and load the list to the
Dynamix 2500 data collector.
See Loading Lists to the Data Collector on page 113
for details.
18. Select the route and collect the orbit measurement.
See Collect Orbit Measurements on page 178
.
See Select a Route on page 131
assistance in selecting a route.
Filter selection is crucial to collecting
proper data. An Overall filter is
recommended for analyzing all
frequencies. A 1st Order is recommended
for isolating anomalies related only to
unbalance.
To view the orbit measurements in an orbit plot in the Emonitor
software, you must enter the orientation of the sensors from
which data is being collected for each channel in the Lo.
Sensor Orientation column.
