Chapter 6 Multi-channel Measurements

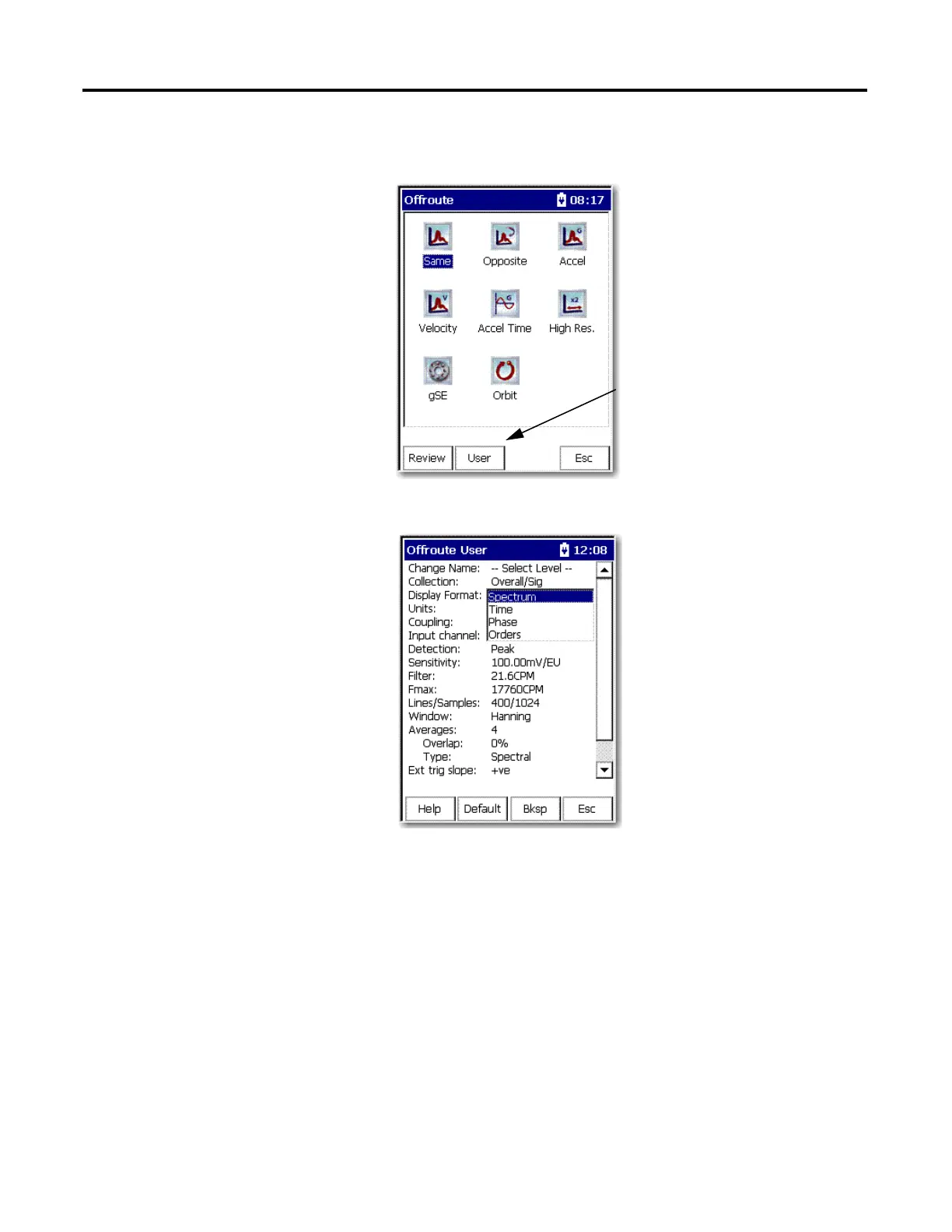

3. Press F2 (Offroute) to collect an Offroute measurement. The Offroute
screen appears.
4. Press F2 (User). The Offroute User screen appears.
5. Select Display Format and press the Right arrow key to display the format
choices.
6. Select Phase and press the Left arrow key to save your choice.
7. Select Input Channel and press the Right arrow key to display the input
channel choices.
Press F2 (User) to create a
user-defined point.
To Next Page
