206 Rockwell Automation Publication 1441-UM001B-EN-P - September 2012
Chapter 7 Installing Optional Extension Modules

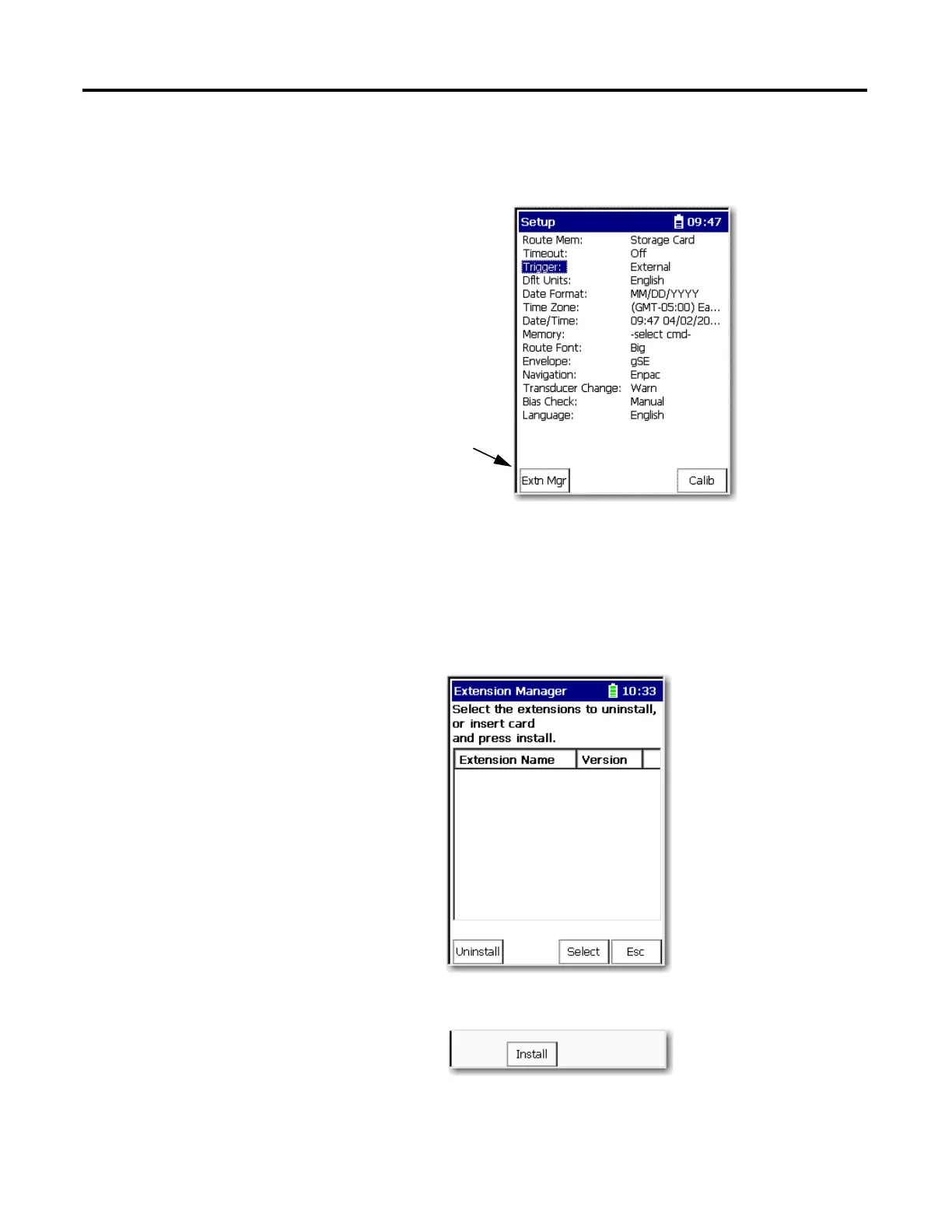

5. From the Main menu, select Setup Utility and press Enter.
6. Press 0 (Shift) to display the second set of functions.
The Extension Manager function remains on the screen for about three
seconds after releasing 0 (Shift Key).
7. Press F1 (Extn Mgr).
The Extension Manager screen appears.
8. Press 0 (Shift) to display the Install Extension function.
9. Press F2 (Install) to install the new extension module.
When the installation is complete, a confirmation prompt appears.
