Rockwell Automation Publication 1441-UM001B-EN-P - September 2012 49
Configuring the Dynamic 2500 Data Collector Chapter 2

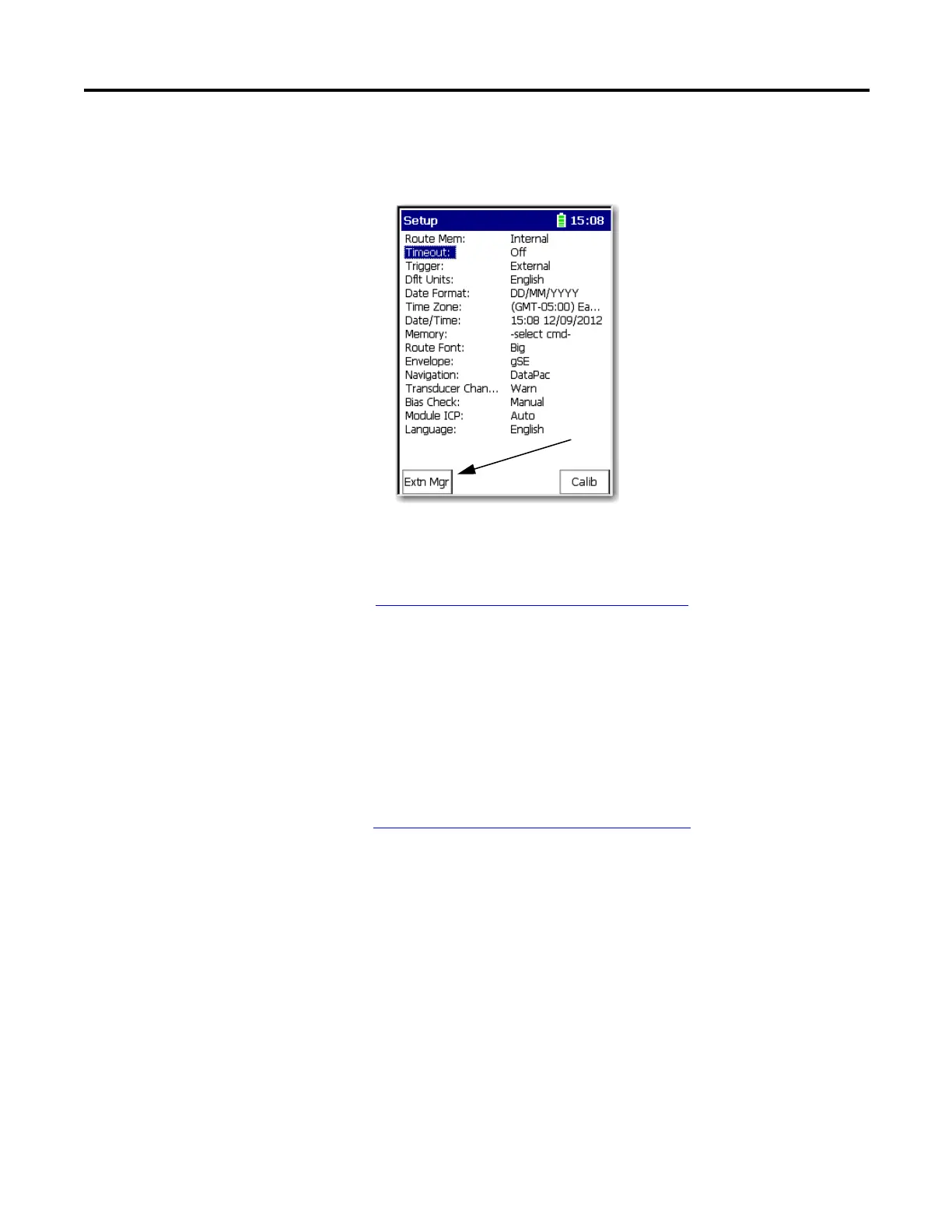

4. Press 0 to display the additional options on the Setup dialog box.
The Extension Manager and Calibration buttons appear.
The Extension Manager lists the option extension modules installed on the
data collector.
See Install Optional Extension Modules on page 205
for extension module
details.
5. Select the choice by pressing the arrow keys or type in a value using the
numeric key pad.
6. Press the left arrow key to make your selection.
When you are finished, press F4 (Apply) to return to the Main Menu.
For a list and description of the Setup Utility parameters,
see Instrument Configuration Parameters on page 59
.
