118 Using the LCD
Follow these steps to view and change the data values of the integer file N7.

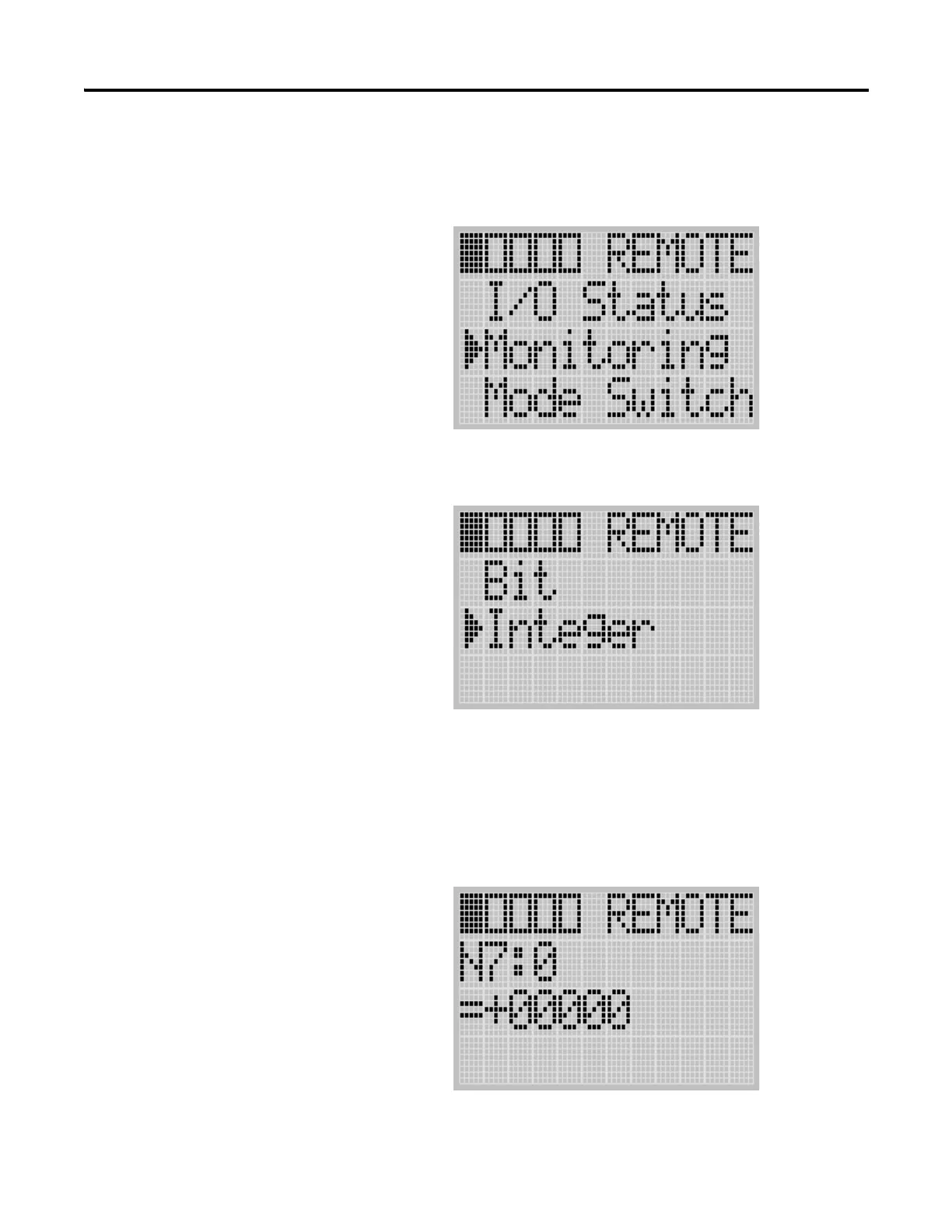

1. On the Main Menu screen, select Monitoring by using the Up and
Down keys on the LCD keypad.
2. Then, press the OK key on the LCD keypad. The Bit/Integer File Select
screen is displayed, as shown below.
3. If Integer is selected, as shown in step 2, press the OK key.
If not selected, press the Down key to select it and then press the OK
key.
4. The current data value (ON) of the N7:0 word is displayed, as shown
below. Note that the target word “0”, which is right to “N7:”, is flashing,
which means the cursor is at the target word position.
