Publication 1763-UM001E-EN-P - June 2015
36 Installing Your Controller

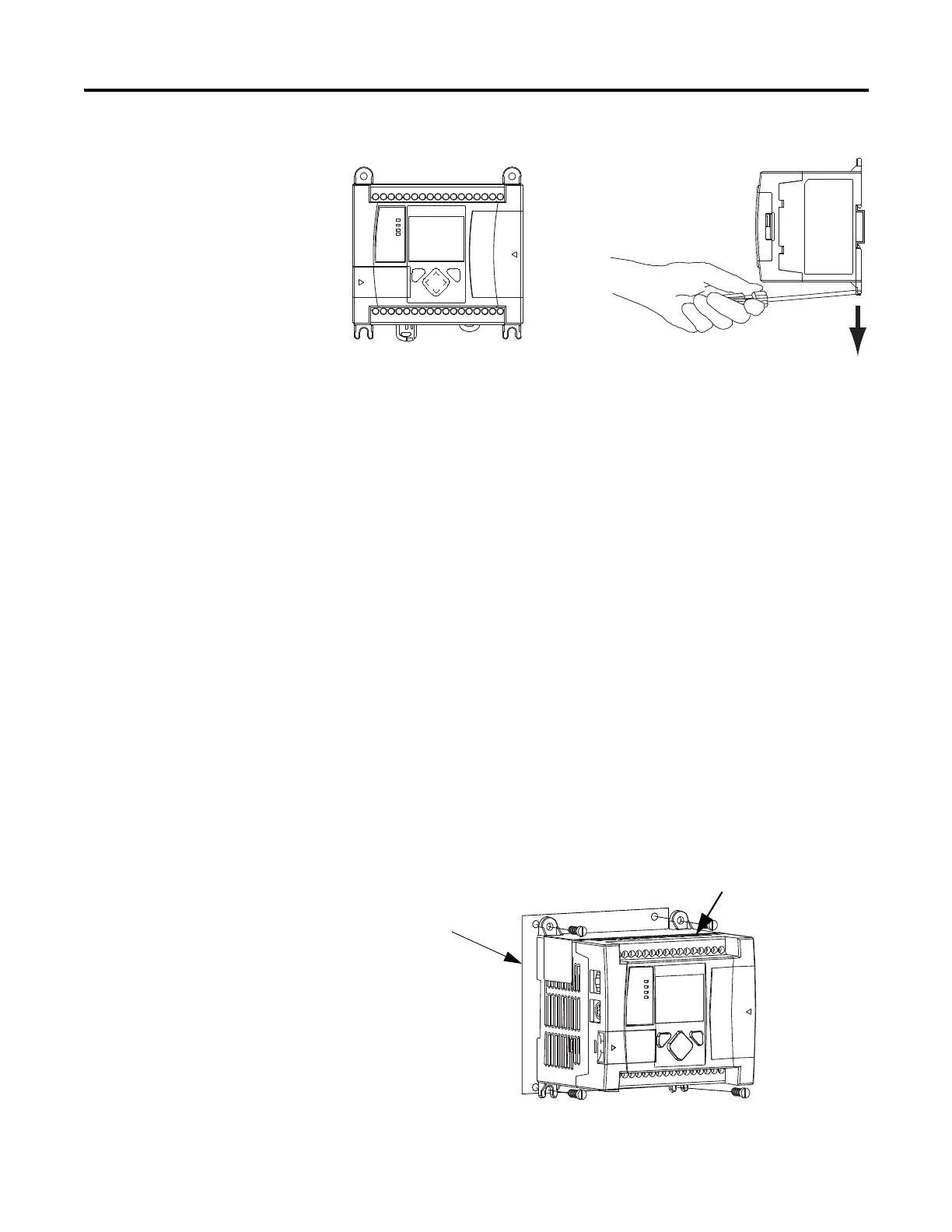

Panel Mounting
Mount to panel using #8 or M4 screws. To install your controller using
mounting screws:
1. Remove the mounting template from inside the back cover of the
MicroLogix 1100 Programmable Controllers Installation Instructions,
publication 1763-IN001.
2. Secure the template to the mounting surface. (Make sure your controller
is spaced properly. See Controller and Expansion I/O Spacing on page
33.)
3. Drill holes through the template.
4. Remove the mounting template.
5. Mount the controller.
6. Leave the protective debris shield in place until you are finished wiring
the controller and any other devices.
ESC OK
open
closed
Mounting Template
(Remove before
installing controller)
Debris Shield
