Using the LCD 117

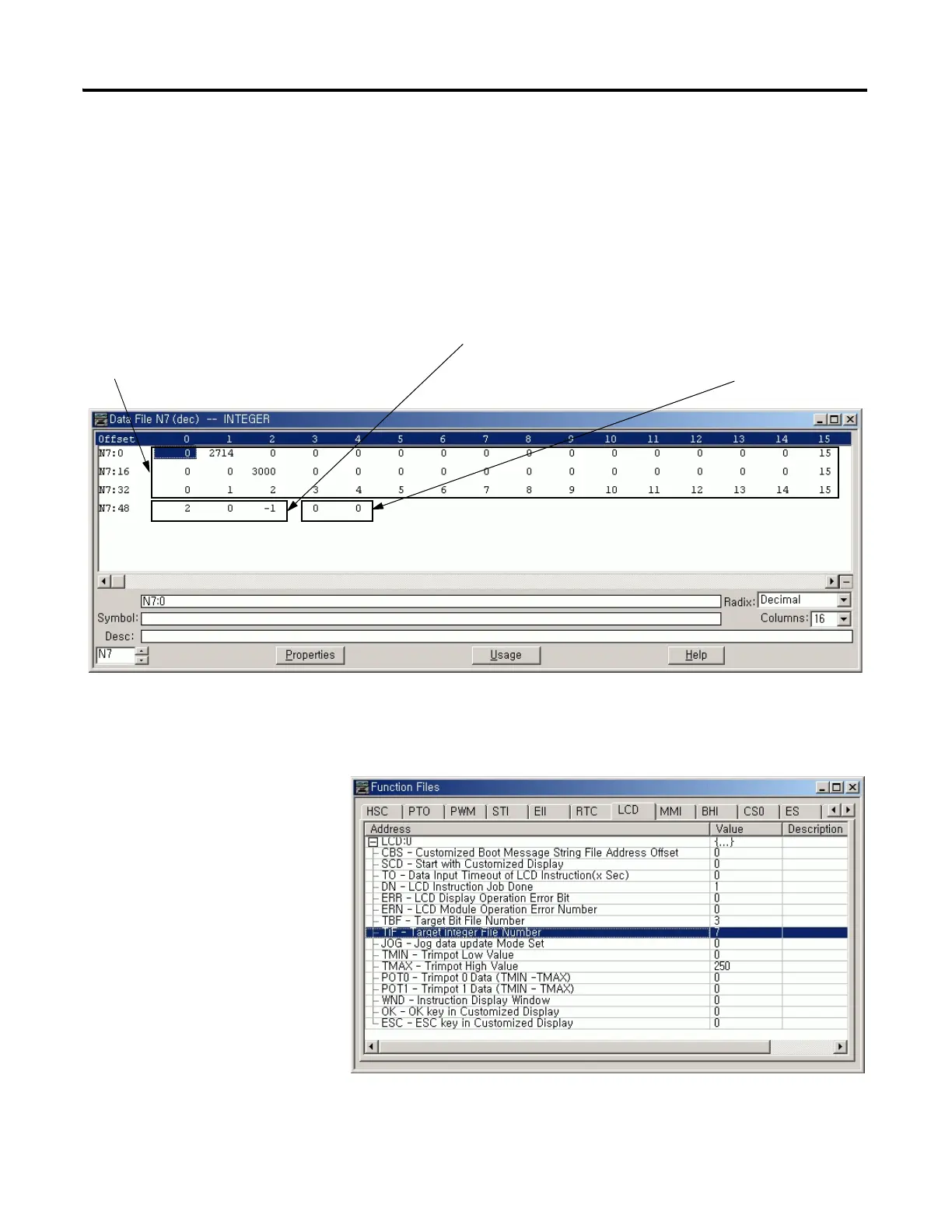

Monitoring an Integer File
For explanations in this section, we assume the followings in the application
program:
• An integer file N7, which is 53 elements long (53 words), is defined with
the preset data, as shown in the screen capture below.
• The TIF element of the LCD Function File is set to 7 to specify the
integer file N7 as the target integer file to monitor on the LCD, as
shown in the screen capture below.
• The controller mode is set to REMOTE RUN.
data words (first 48 words), which
are monitored on the LCD
and maskable by protection bits
protection bits (second 48 bits = 3 words) data words (after the first 51 words), which
are not monitored on the LCD and not
maskable by protection bits

Allen-Bradley MicroLogix 1100 Specifications

General

Processor	32-bit
Programming Software	RSLogix 500
Mounting	DIN rail or panel mount
Power Supply	24V DC
Type	Compact PLC
Digital Inputs	12
Digital Outputs	8
Analog Inputs	4 (depending on model)
Analog Outputs	Optional with expansion module
Programming Language	Ladder Logic
Operating Temperature	0 to 55 °C (32 to 131 °F)
Series	MicroLogix
