Using the LCD 129

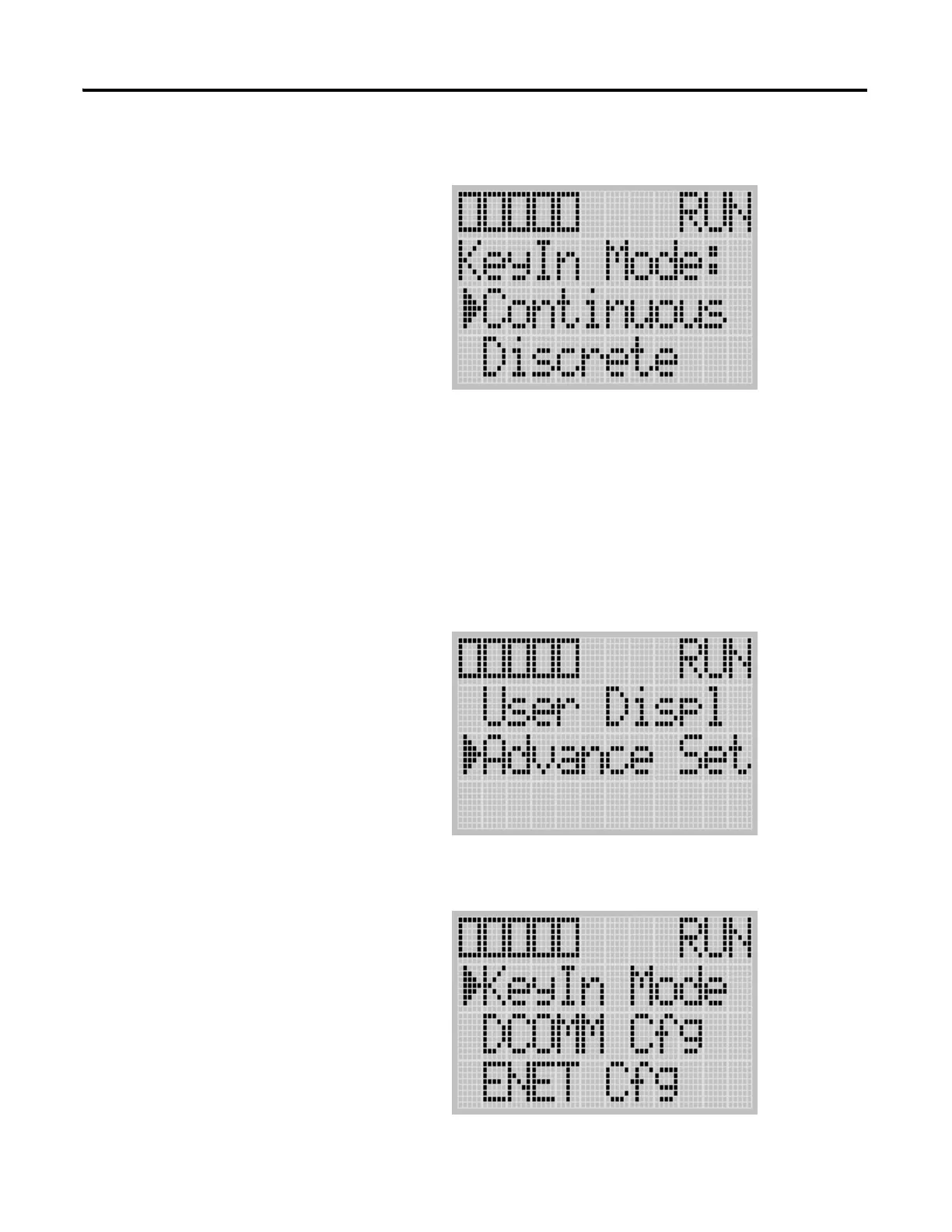

By using the Key In Mode screen, as shown below, you can change the Key In
mode to use.
Changing Key In Mode
Follow these steps to change the current Key In mode.
1. On the Main Menu screen, select Advance Set by using the Up and
Down keys on the LCD keypad, as shown below. If the menu items
shown in the figure below are not displayed on the Main Menu screen,
you need to scroll down the screen by pressing the Down key.
2. Then, press the OK key on the LCD keypad. The Advanced Settings
Menu screen is displayed, as shown below.
