130 Using the LCD
3. Select KeyIn Mode using the Up and Down keys, and then press the
OK key.

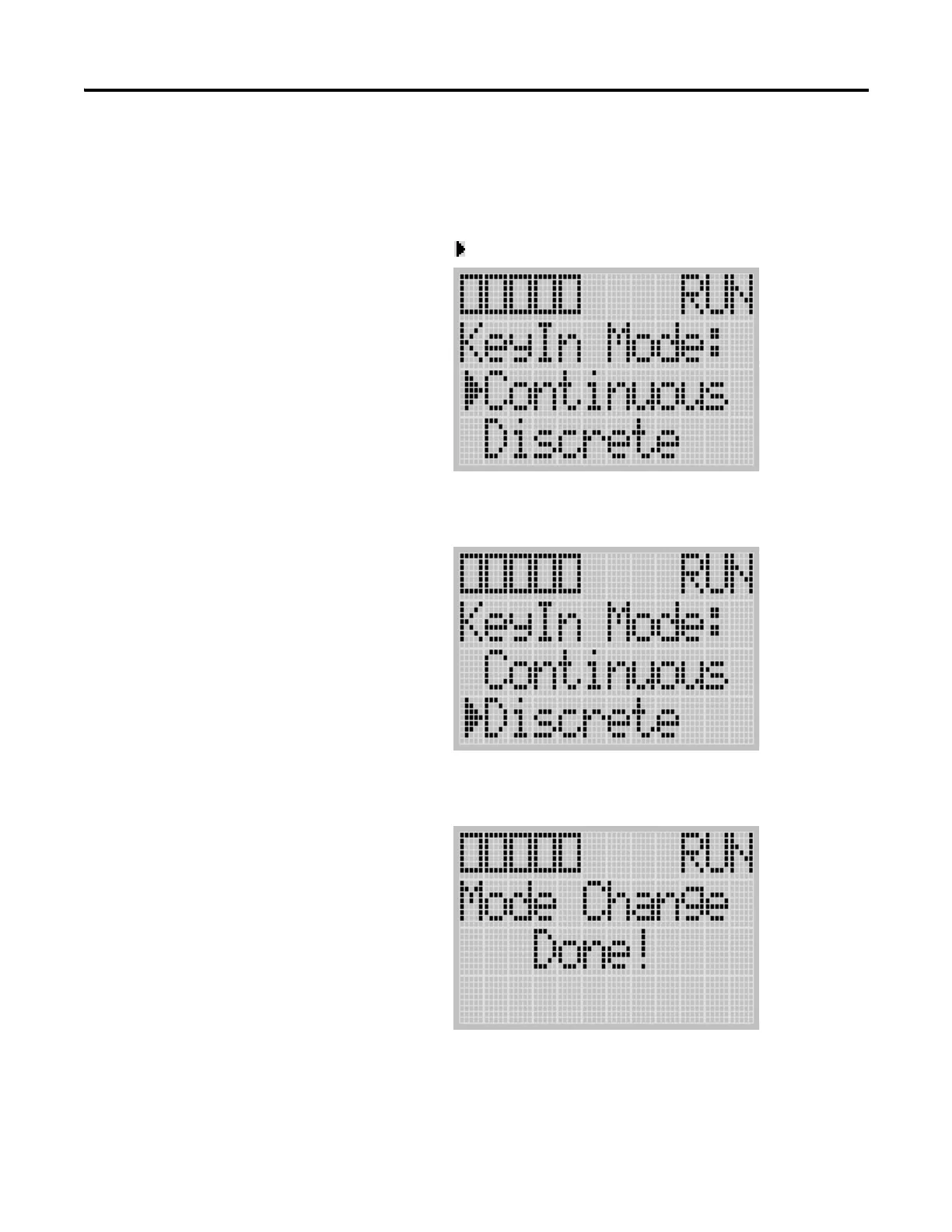

4. The Key In Mode screen is displayed, as shown below. The current
mode, Continuous in this example, is selected marked up with the
symbol “ ”.
5. Press the Up or Down key to select the different mode, Discrete in this
example, as shown below. Then, press the OK key.
6. The Key In Mode Change Notification screen is displayed, as shown
below.
7. Press the ESC key to return to the Advanced Settings Menu screen, as
shown in step 2.

Allen-Bradley MicroLogix 1100 Specifications

General

Processor	32-bit
Programming Software	RSLogix 500
Mounting	DIN rail or panel mount
Power Supply	24V DC
Type	Compact PLC
Digital Inputs	12
Digital Outputs	8
Analog Inputs	4 (depending on model)
Analog Outputs	Optional with expansion module
Programming Language	Ladder Logic
Operating Temperature	0 to 55 °C (32 to 131 °F)
Series	MicroLogix
