Using the LCD 131
Using Communications
Toggle Functionality
The MicroLogix 1100 provides the Communications Toggle Functionality,
which allows you to change from the user-defined communication
configuration to the default communications mode and back to the user
defined communication configuration on Channel 0.
See Using the Communications Toggle Functionality on page 4-72 for
information about how to use the Communications Toggle Functionality.
Viewing Ethernet Port
Configuration
The Ethernet Pot Configuration screen of the LCD displays the MAC and IP
addresses assigned to the controller.
Follow these steps to view the Ethernet port configuration for your controller.

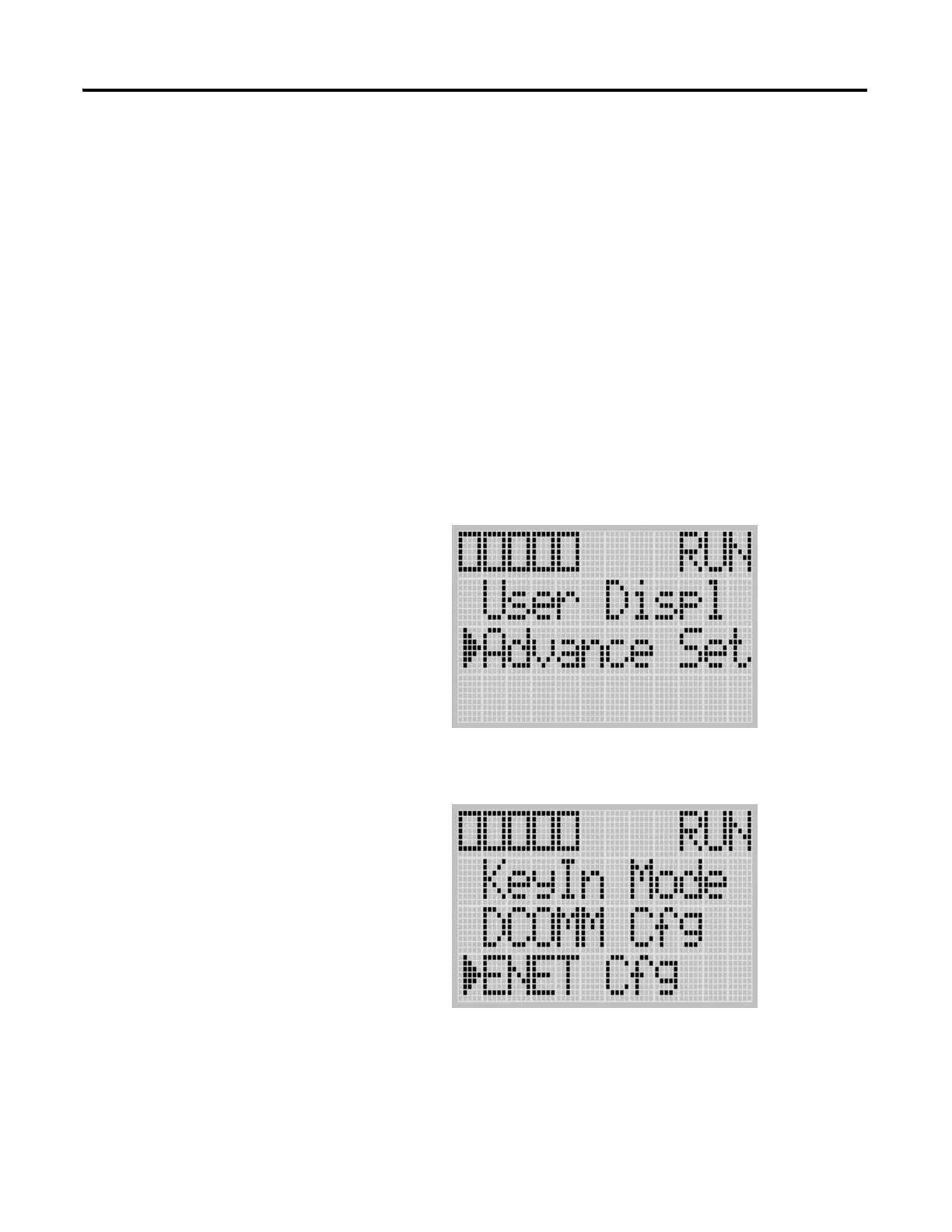

1. On the Main Menu screen, select Advance Set by using the Up and
Down keys on the LCD keypad, as shown below. If the menu items
shown in the figure below are not displayed on the Main Menu screen,
you need to scroll down the screen by pressing the Down key.
2. Then, press the OK key on the LCD keypad. The Advanced Settings
Menu screen is displayed, as shown below.
3. If ENET Cfg is selected, press the OK key.
If not, select ENET Cfg using the Up and Down keys, and then press
the OK key.
4. The Ethernet Port Configuration screen is displayed.
To Next Page
