Allen-Bradley MicroLogix 1100 User Manual

Publication 1763-UM001E-EN-P - June 2015
132 Using the LCD

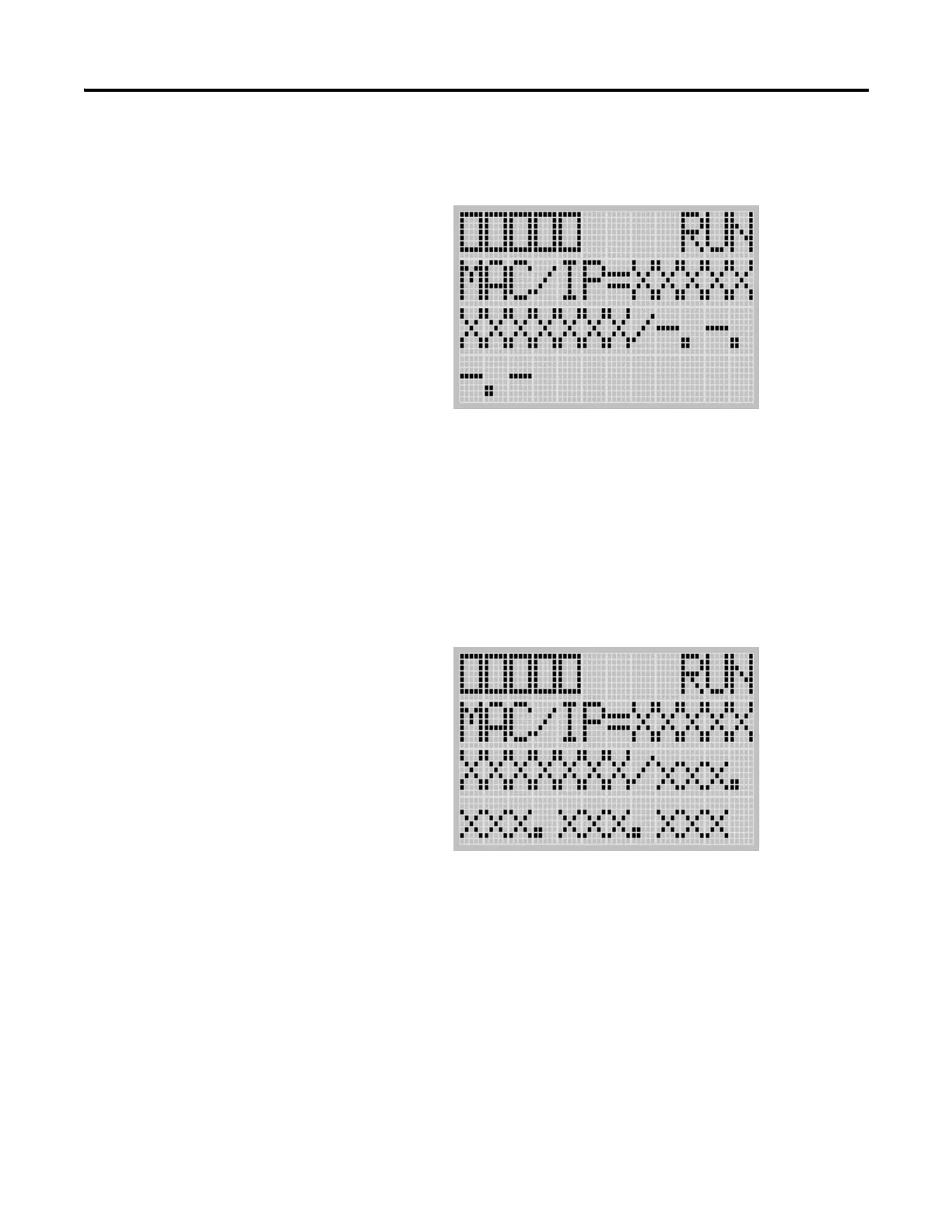

When an IP address is not yet assigned to your controller, only the MAC
address assigned to your controller, which is represented as
XXXXXXXXXXXX below, is displayed.
A MAC address is a 12-digit hexadecimal number. Your controller ships
with a unique MAC address assigned in factory. You can identify the
MAC address of your controller by opening the expansion module cover
on your controller.
When an IP address is assigned to your controller, both of MAC address
and IP address of your controller are displayed, as shown below. In this
example, the MAC address is represented as XXXXXXXXXXXX,
which is a 12-digit hexadecimal number. The IP address is represented
as xxx.xxx.xxx.xxx, where each xxx is a deimal number between 0-255.
5. Press the ESC key to return to the Advanced Settings Menu screen, as
shown in step 2.

Allen-Bradley MicroLogix 1100 Specifications

General

Processor	32-bit
Programming Software	RSLogix 500
Mounting	DIN rail or panel mount
Power Supply	24V DC
Type	Compact PLC
Digital Inputs	12
Digital Outputs	8
Analog Inputs	4 (depending on model)
Analog Outputs	Optional with expansion module
Programming Language	Ladder Logic
Operating Temperature	0 to 55 °C (32 to 131 °F)
Series	MicroLogix
