Allen-Bradley MicroLogix 1100 User Manual

185 Publication 1763-UM001E-EN-P - June 2015
Appendix C
Troubleshooting Your System
This chapter describes how to troubleshoot your controller. Topics include:
• understanding the controller status indicators
• controller error recovery model
• analog expansion I/O diagnostics and troubleshooting
• calling Rockwell Automation for assistance
Understanding the
Controller Indicator Status
The MicroLogix 1100 provides three groups of status indicators:
• the status LEDs on the top of the controller,
• the status indicators on the LCD
• the I/O status indicators on the LCD.
Together they provide a mechanism to determine the current status of the
controller if a programming device is not present or available.
Controller Status LED Indicators

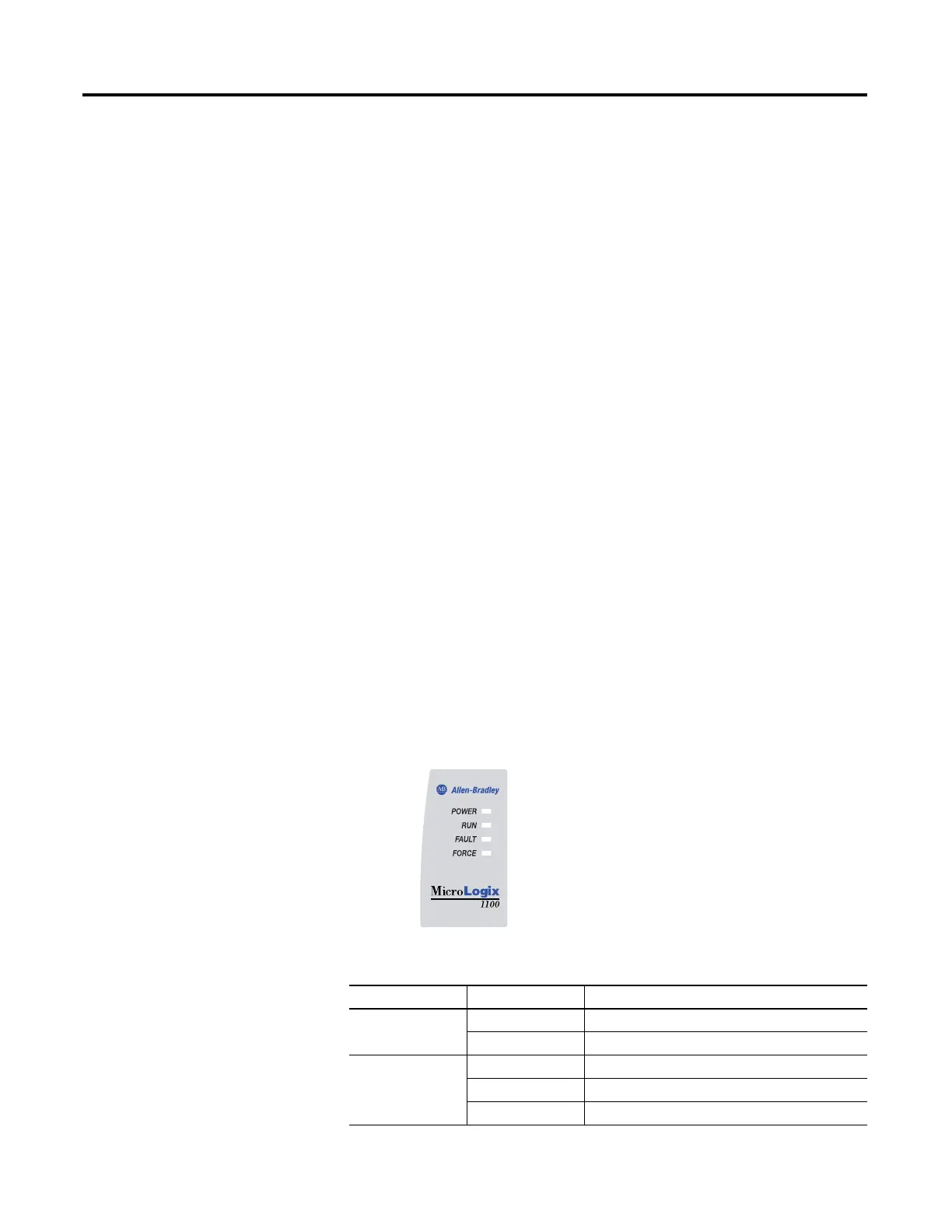

Controller LED Location
Controller LED Indicators
LED Color Indicates
POWER off No input power, or power error condition
green Power on
RUN off Not executing the user program
green Executing the user program in run mode
green flashing Memory module transfer occurring

Allen-Bradley MicroLogix 1100 Specifications

General

Processor	32-bit
Programming Software	RSLogix 500
Mounting	DIN rail or panel mount
Power Supply	24V DC
Type	Compact PLC
Digital Inputs	12
Digital Outputs	8
Analog Inputs	4 (depending on model)
Analog Outputs	Optional with expansion module
Programming Language	Ladder Logic
Operating Temperature	0 to 55 °C (32 to 131 °F)
Series	MicroLogix
