Publication 1763-UM001E-EN-P - June 2015

32 Installing Your Controller

Connecting the Battery Wire Connector

Follow the procedure below to connect the battery wire connector to the

battery connector.

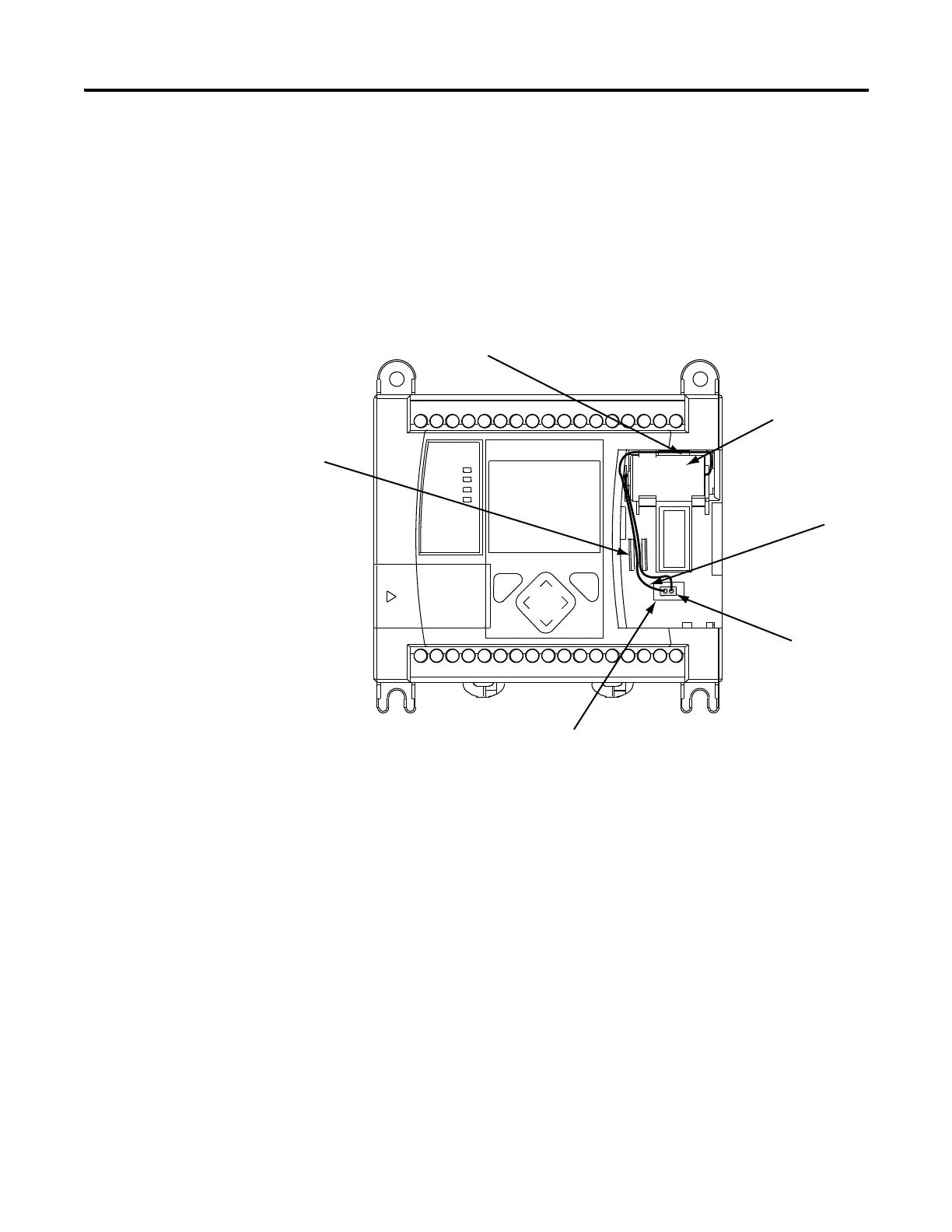

1. Insert the replaceable battery wire connector into the battery connector.

2. Secure the battery connector wires along the wire guide as shown below.

ESC OK

Wire Guide

Battery Connector Wires

Replaceable Battery

Replaceable Battery Pocket

Battery Wire Connector

Battery Connector
