136 Using the LCD
Viewing System
Information
The System Information screen of the LCD allows you to identify the system
information for your controller.
Follow these steps to view the system information for your controller.

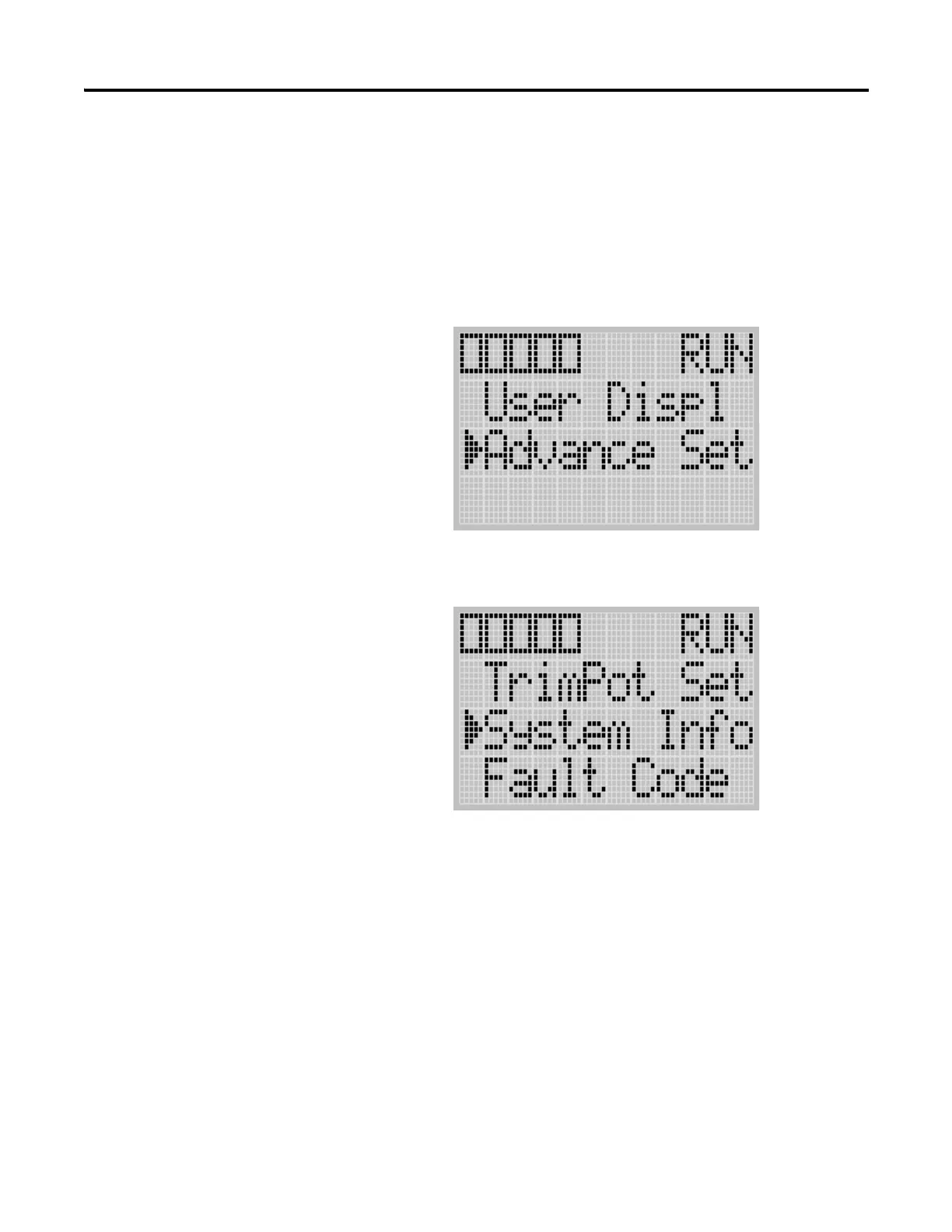

1. On the Main Menu screen, select Advance Set by using the Up and
Down keys on the LCD keypad, as shown below. If the menu items
shown in the figure below are not displayed on the Main Menu screen,
you need to scroll down the screen by pressing the Down key.
2. Then, press the OK key on the LCD keypad. The Advanced Settings
Menu screen is displayed, as shown below.
3. If System Info is selected, press the OK key.
If not, select System Info using the Up and Down keys, and then press
the OK key.

Allen-Bradley MicroLogix 1100 Specifications

General

Processor	32-bit
Programming Software	RSLogix 500
Mounting	DIN rail or panel mount
Power Supply	24V DC
Type	Compact PLC
Digital Inputs	12
Digital Outputs	8
Analog Inputs	4 (depending on model)
Analog Outputs	Optional with expansion module
Programming Language	Ladder Logic
Operating Temperature	0 to 55 °C (32 to 131 °F)
Series	MicroLogix
