Installing a Memory
Module

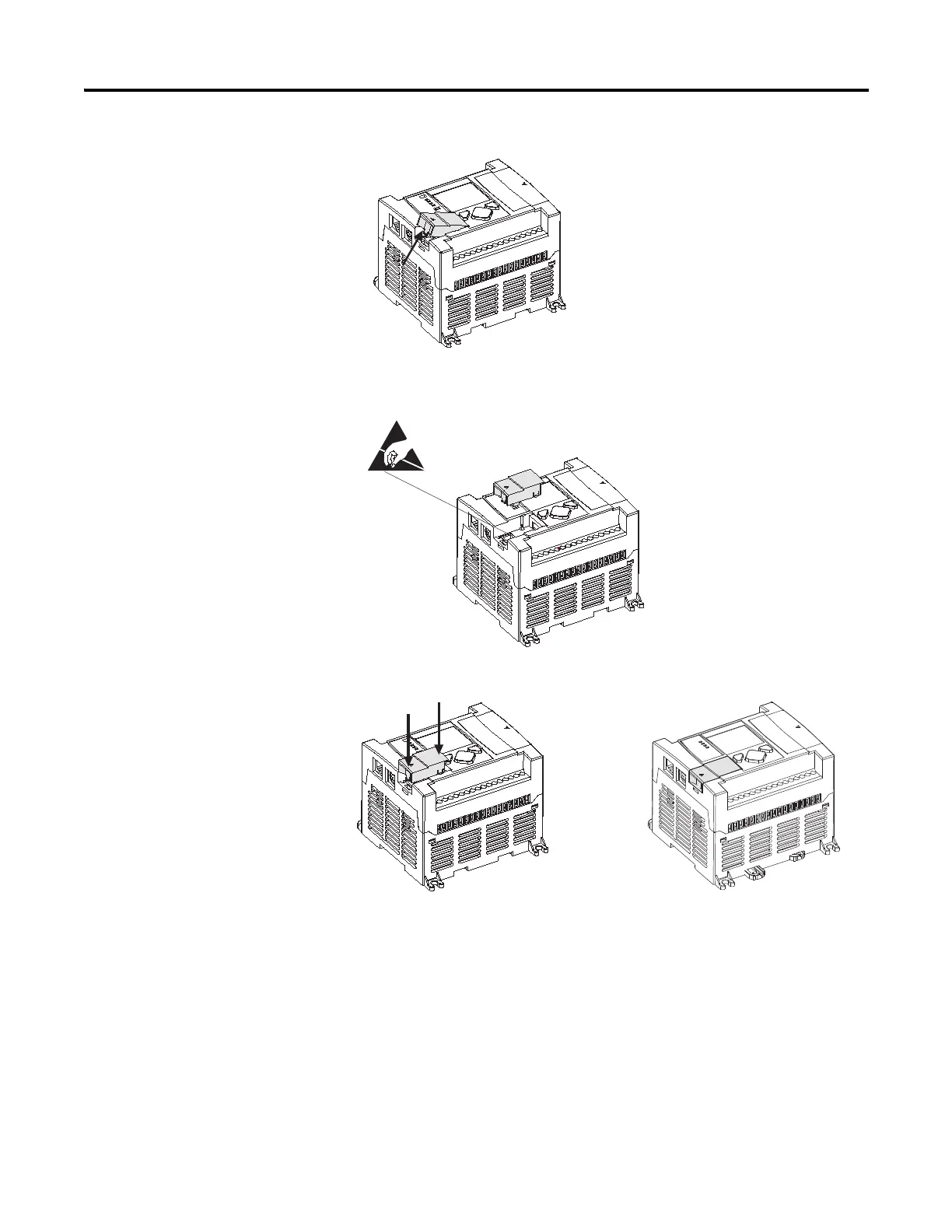

1. Remove the memory module port cover.
2. Align the connector on the memory module with the connector pins on
the controller.
3. Firmly seat the memory module into the controller.
