Allen-Bradley MicroLogix 1100 User Manual

Publication 1763-UM001E-EN-P - June 2015
Using the LCD 127

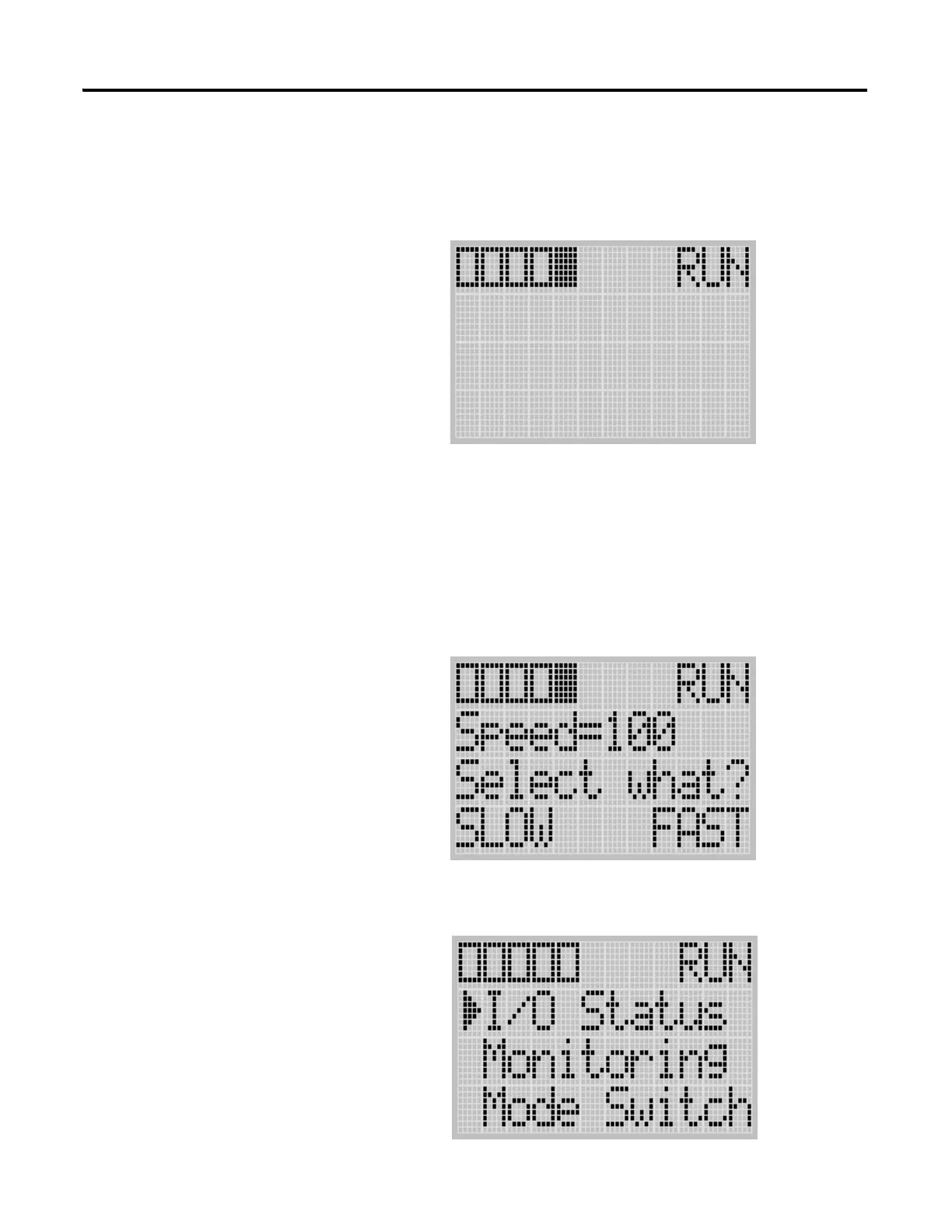

If no user defined screen is used in your application program, the screen
is displayed, as shown below.
Note that the U-MSG indicator on the top of the LCD is displayed in
solid rectangle. It means the LCD is in User Defined LCD mode.
If a user defined screen is used in your application program, the LCD
screen is displayed, as shown below, according to the specific
instructions used in your program.
3. Hold down the ESC key more than 3 seconds to return to the Main
Menu screen, as shown below.
COMM0 COM
M
1
DCOM
M
BA
T
.
L
O
U-
M
SG
COM
M
0
COMM1 DCOMM BA
T
.
LO
U-
M
SG

Allen-Bradley MicroLogix 1100 Specifications

General

Processor	32-bit
Programming Software	RSLogix 500
Mounting	DIN rail or panel mount
Power Supply	24V DC
Type	Compact PLC
Digital Inputs	12
Digital Outputs	8
Analog Inputs	4 (depending on model)
Analog Outputs	Optional with expansion module
Programming Language	Ladder Logic
Operating Temperature	0 to 55 °C (32 to 131 °F)
Series	MicroLogix
