Allen-Bradley MicroLogix 1100 User Manual

Publication 1763-UM001E-EN-P - June 2015
200 Connecting to Networks via RS-232/RS-485 Interface
The MicroLogix™ controller supports the DF1 Full-Duplex protocol via
RS-232 connection to external devices, such as computers, or other controllers
that support DF1 Full-Duplex.
DF1 is an open protocol. Refer to DF1 Protocol and Command Set Reference
Manual, publication 1770-6.5.16, for more information.
DF1 Full-Duplex protocol (also referred to as DF1 point-to-point protocol) is
useful where RS-232 point-to-point communication is required. DF1 protocol
controls message flow, detects and signals errors, and retries if errors are
detected.

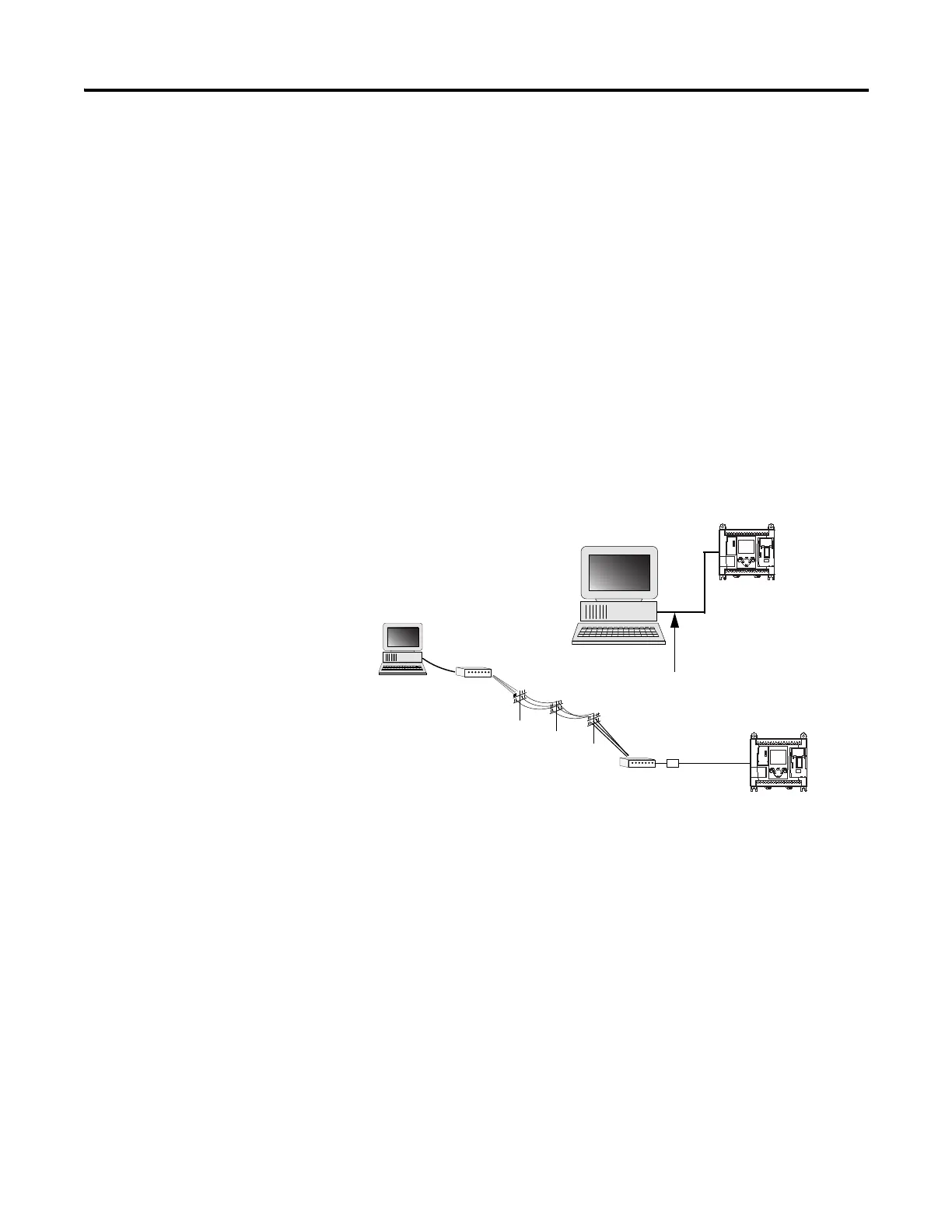

Example DF1 Full-Duplex Connections
For information about required network connecting equipment, see Chapter 4,
Communication Connections.
Personal Computer
Modem cable
Modem
Modem
CH0
1761-CBL-PM02
MicroLogix 1100
Personal Computer
MicroLogix 1100
CH0
1761-CBL-PM02
Null modem
adapter
Null modem
adapter
Null modem
adapter

Allen-Bradley MicroLogix 1100 Specifications

General

Processor	32-bit
Programming Software	RSLogix 500
Mounting	DIN rail or panel mount
Power Supply	24V DC
Type	Compact PLC
Digital Inputs	12
Digital Outputs	8
Analog Inputs	4 (depending on model)
Analog Outputs	Optional with expansion module
Programming Language	Ladder Logic
Operating Temperature	0 to 55 °C (32 to 131 °F)
Series	MicroLogix
