1762-IF2OF2 Wiring

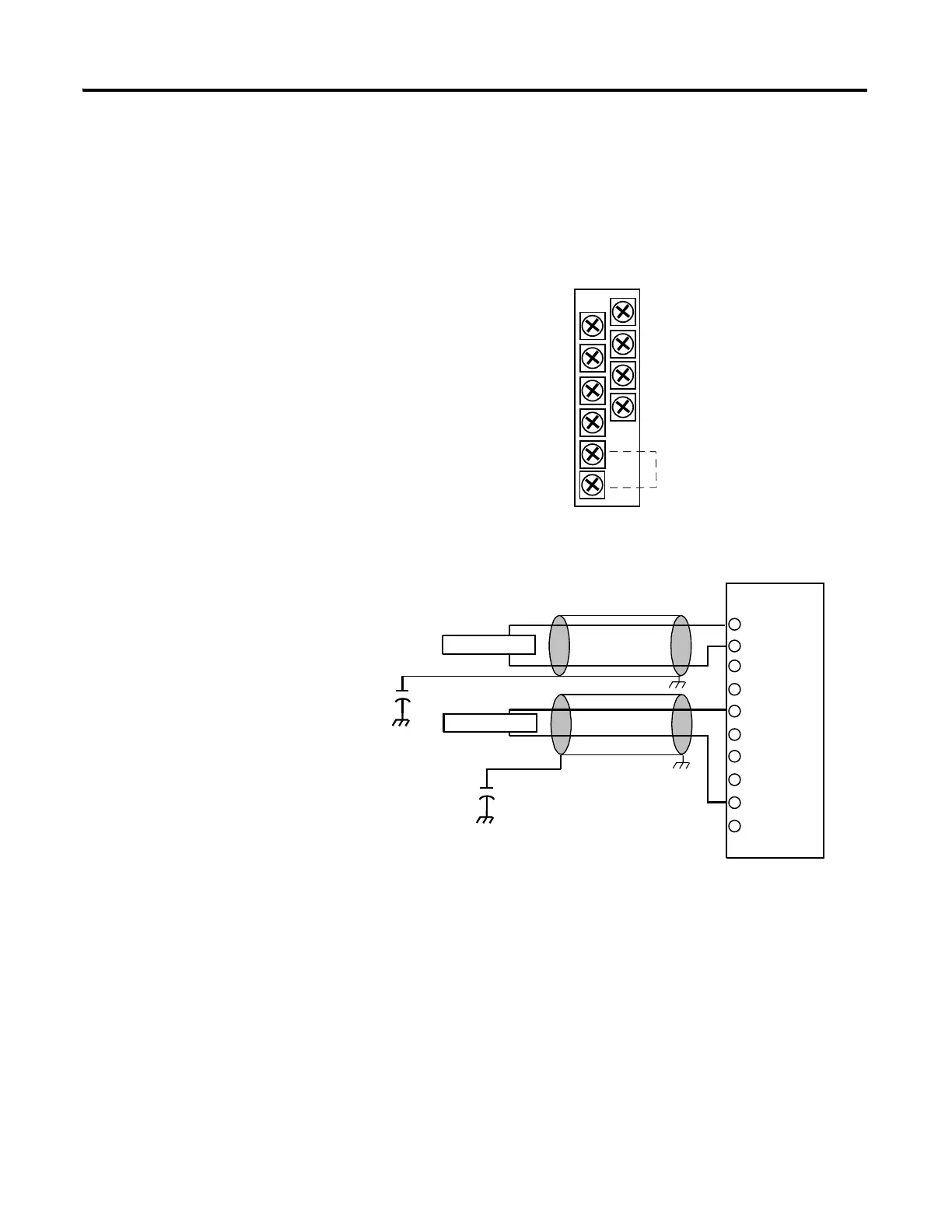

The following illustration shows the 1762-IF2OF2 analog expansion I/O
terminal block.
1762-IF2OF2 Terminal Block Layout
Differential Sensor Transmitter Types
V Out 1
V Out 0
IN 1 (+)
IN 0 (+)
I Out 1
I Out 0
IN 1 (-)
IN 0 (-)
COM
COM
Common connected
internally.
IN 0 (+)
IN 0 (-)
V out 0
V out 1
I out 0
I out 1
COM
IN 1 (-)
IN 1 (+)
COM
Analog Sensor
Load
