A–11Setting Up the DH-485 Network

Publication

1747-6.2

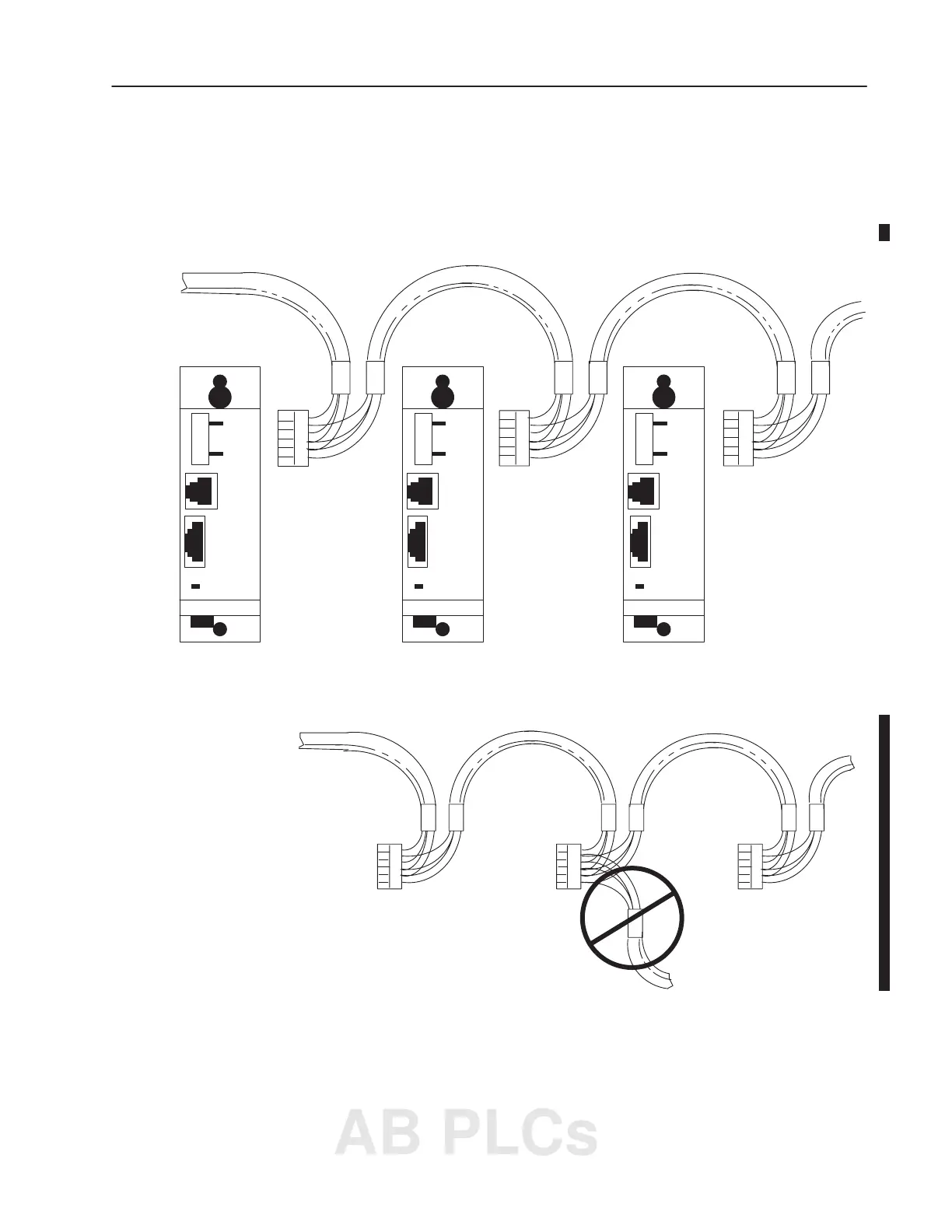

When cutting cable segments, make them long enough to route them

from one link coupler to the next with sufficient slack to prevent

strain on the connector. Allow enough extra cable to prevent chafing

and kinking in the cable.

Link

Coupler

1747-AIC

Link Coupler

1747-AIC

Link Coupler

1747-AIC

Connector Connector Connector

Belden

#3106A or

#9842

Belden

#3106A or

#9842

Belden

#3106A or

#9842

DH-485

Interface

Peripheral

CPU

Power

DH-485

Interface

Peripheral

CPU

DH-485

Interface

Peripheral

CPU

Power Power

Important: A daisy-chained network is recommended as shown

above. We do not recommend the following:

Connector

Belden

#3106A

#9842

Belden

#3106A or

#9842

Belden

#3106A or

#9842

Incorrect
