Maintaining Your Control System

Publication

1747-6.2

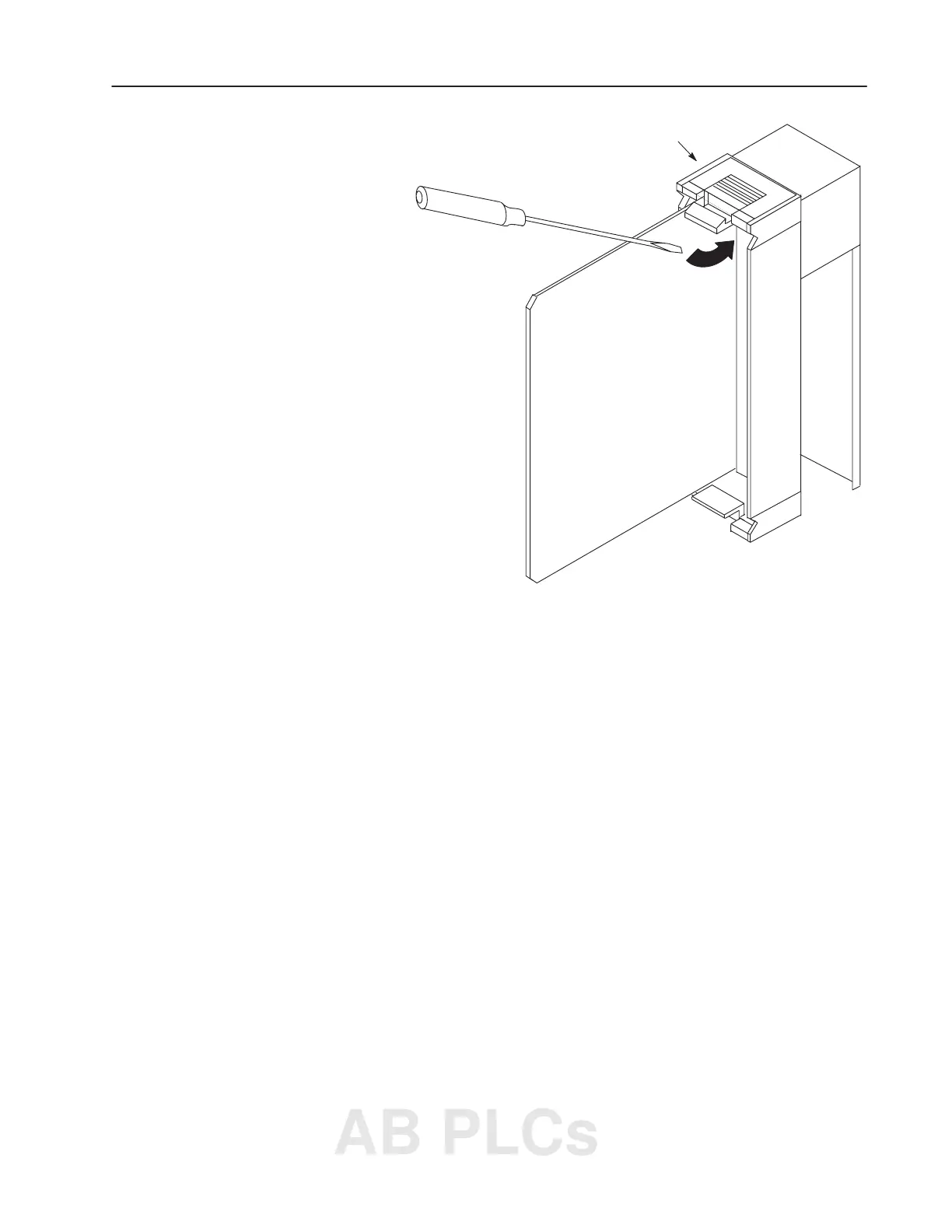

Retainer Clip

Installing New Retainer Clips

Insert one of the pins of the retainer clip into the hole in the I/O

module and then snap the other end in place.
