Allen-Bradley SLC 500

4–6 Mounting Your SLC 500 Control System
Publication 1747-6.2

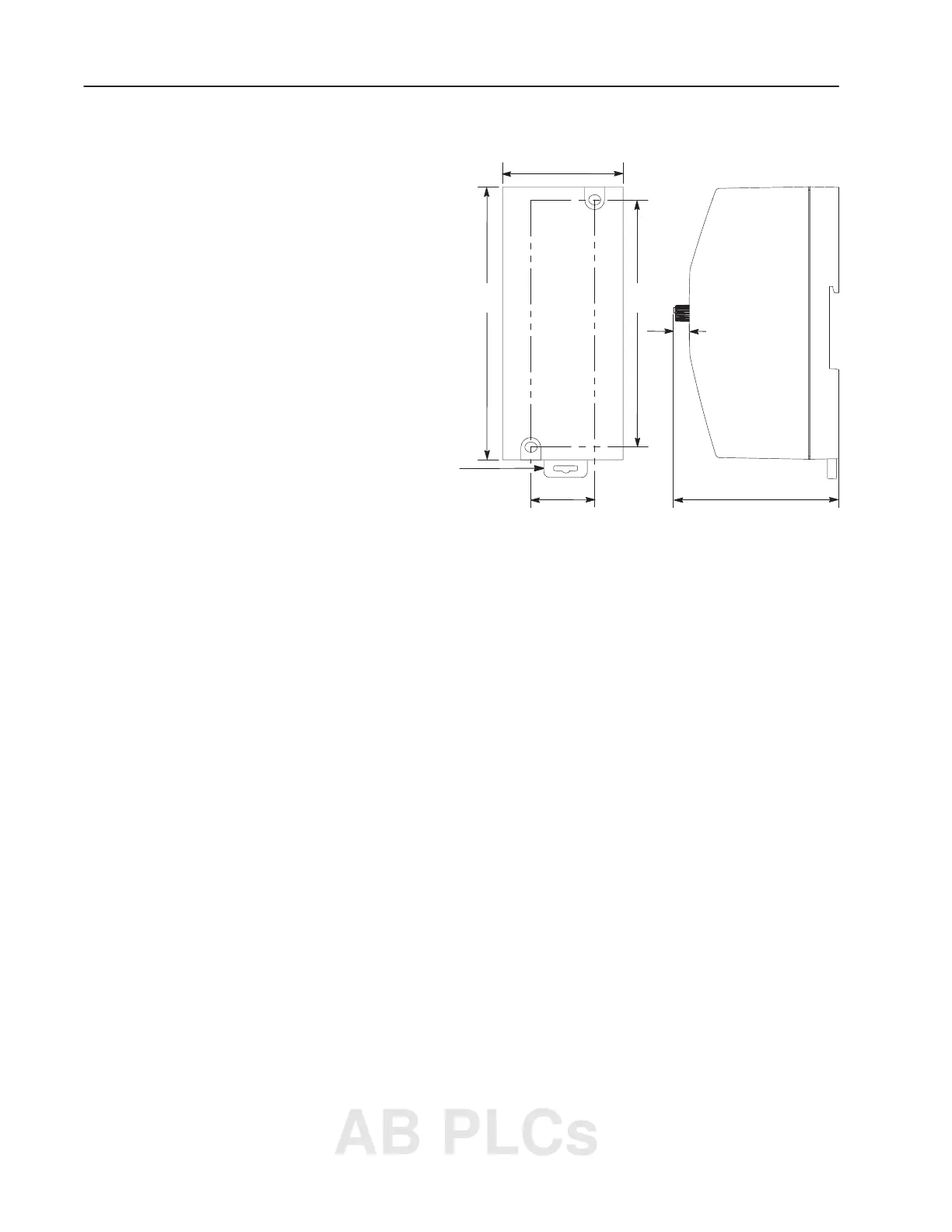

AIC+ Advanced Interface Converter (1761-NET-AIC)
52.07 mm
(2.05 in.)
27.7 mm
(1.09 in.)
1 18 mm
(4.64 in.)
Allow 15 mm (0.6 in.) clearance
for DIN rail latch movement during
installation and removal.
107 mm
(4.20 in.)
71.4 mm
(2.81 in.)
6.6 mm
(0.26 in.)
