Allen-Bradley SLC 500

Appendix G
Publication 1747-6.2
Communicating with Devices
on an Ethernet Network
This appendix:
• describes SLC 5/05 processors and Ethernet communication
• describes SLC 5/05 performance considerations
• describes Ethernet network connections and media
• explains how the SLC 5/05 establishes node connections
• lists Ethernet configuration parameters and procedures
• describes configuration for subnet masks and gateways
Ethernet is a local area network that provides communication
between various devices at 10 Mbps. The physical communication
media options for the SLC 5/05 are:
• built-in
– twisted pair (10Base-T)
• with media converters or hubs
– fiber optic
– broadband
– thick-wire coaxial cable (10Base-5)
– thin-wire coaxial cable (10Base-2)
See page G–2 for more information on Ethernet physical media.

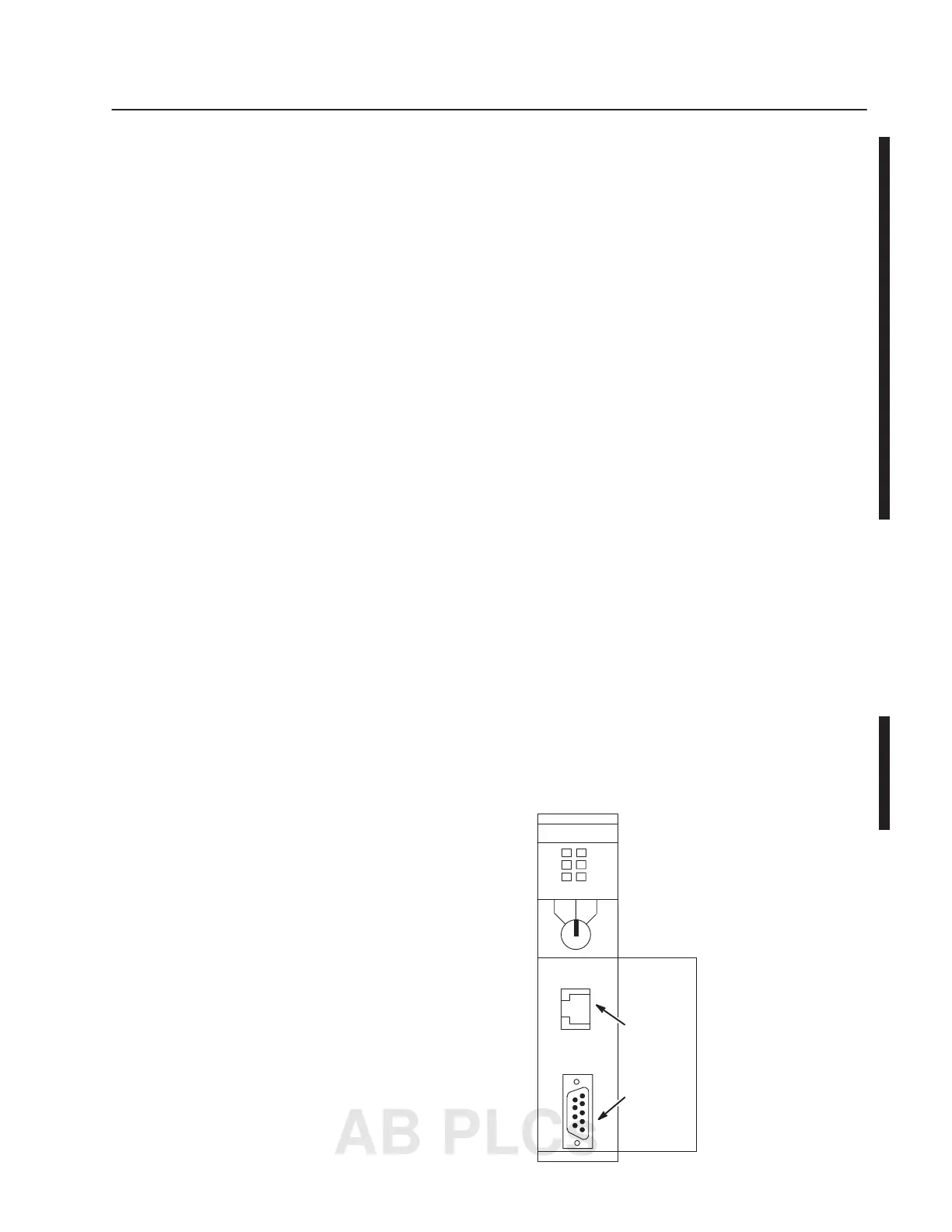

The SLC 5/05 supports Ethernet communication via the Ethernet
communication channel 1 shown in the drawing below.
SLC 5/05
Processors
and
Ethernet Communication
SLC 5/05 CPU
RUN PROG
FORCE
RS232
BATT
ENET
FLT
RUN
REM
Channel 1
Ethernet
(10Base-T)
Channel 0
RS232
(DH485,
DF1, or
ASCII)
