Allen-Bradley SLC 500

C–4 Setting Up the DH+ Network
Publication 1747-6.2

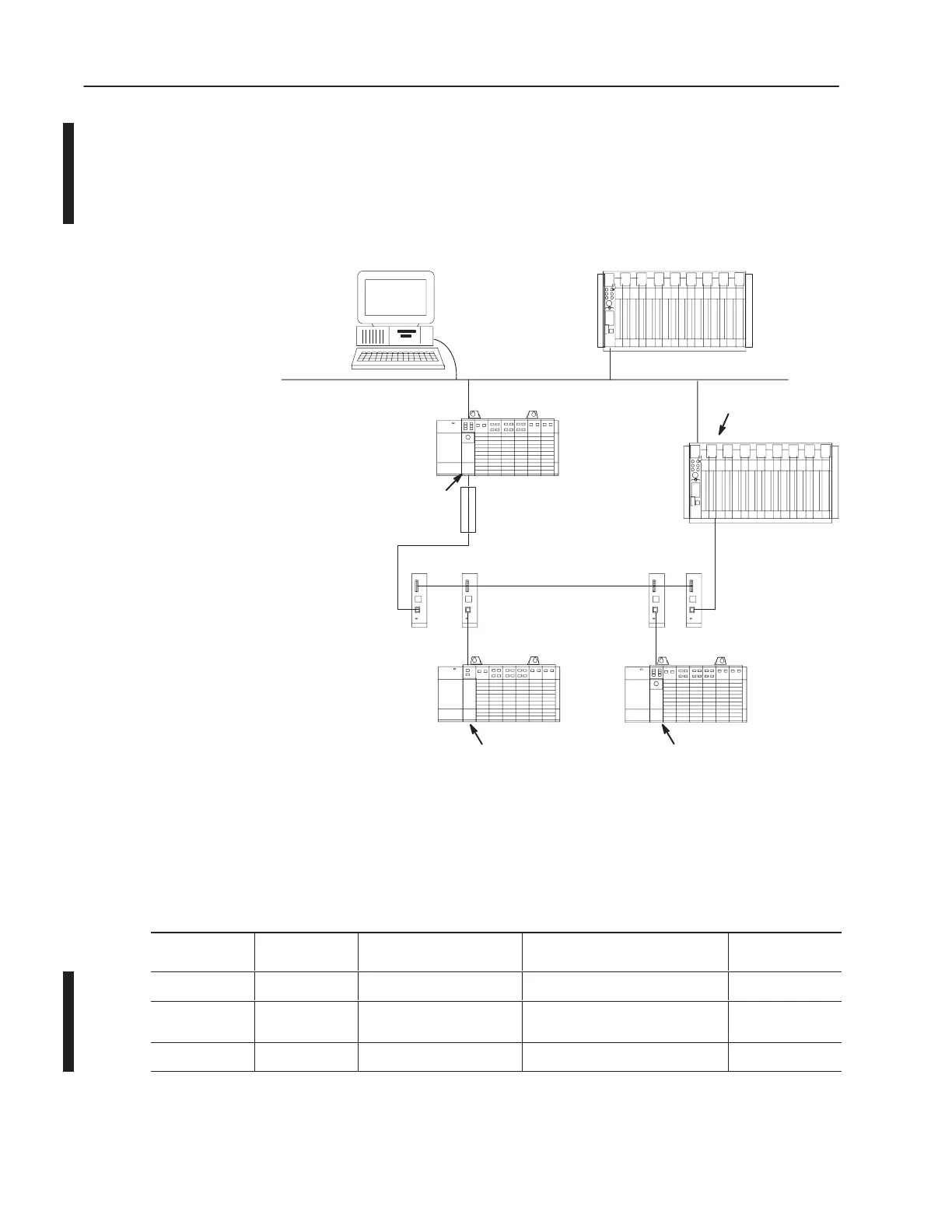

The following figure illustrates a possible configuration for the SLC
5/04 processor on a DH+ network. You can also use an SLC 500,
SLC 5/01, SLC 5/02, SLC 5/03, or SLC 5/05 processor in place of
the SLC 5/04 on the DH+ network if the 1785-KA5 card is used with
a PLC-5.
IBM-PC, XT, or compatible with
1784-KT, 1784-KTX, or 1784-KTXD
APS
The PLC-5 and
1785-KA5 are
daisy chained
together.
DH + Network
DH
485 Network
SLC 5/03 CPU
(1747-L532)
SLC 500 5/02 Modular
Controller
PLC–5/15
PLC-5/15 with
a 1785-KA5
SLC 500 5/04 Modular
Controller
1747–PIC
Interface Converter
1747–AIC
1747–AIC1747–AIC
1747–AIC
The DH+ protocol uses factory set timeouts to restart token-passing
communication if the token is lost because of a defective node.
Other devices that use the DH+ network include those in the table
below.
Catalog
Number
Description Installation Requirement Function Publication
1784-KTX, -KTXD
PC DH+ IM IBM XT/A T Computer Bus Provides DH+ or DH-485 connection
1784-6.5.22
1784-PCMK
PCMCIA IM
PCMCIA slot in computer and
Interchange
Provides DH+ or DH-485 connection
1784-6.5.19
1784-KT/B
PC DH+ IM IBM XT/A T Computer Bus Provides DH+ connection
1784-2.31
T
ypical
DH
+
N
et
w
ork
Configuration
