Allen-Bradley SLC 500 Installation And Operation Manual

6–7 Installing Your Hardware Components
Publication 1747-6.2

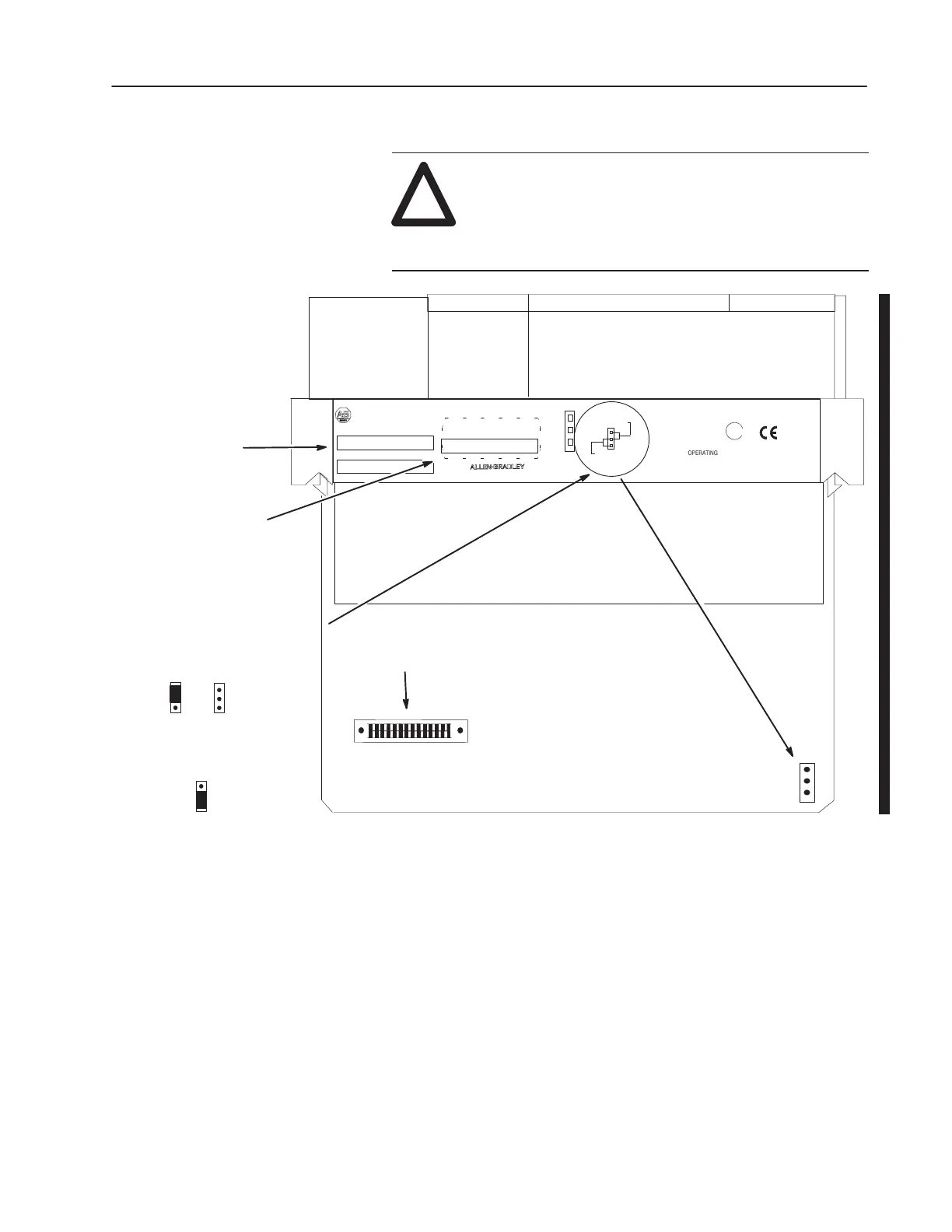

Component Placement
!
ATTENTION: Jumper J4, located on the bottom
corner of the motherboard, provides write protection
from any download of a new operating system. The
“out of the box” position of this jumper is
“PROTECT,” or write protect. Without the jumper, the
processors are write protected.
Jumper J4
Catalog and Serial
Number Label
The SLC 5/03, SLC 5/04, or SLC 5/05
processors are protected from the
operating system download when jumper
J4 is in this position:
The SLC 5/03, SLC 5/04, or SLC 5/05
processors accept the operating system
download when jumper J4 is in this
position:
Mother Board
Daughter Board
OR
SLC 500
CAT
SER
SERIAL NO.
PROC. REV.

U
L

SA
PROCESSOR UNIT
MADE IN USA
LISTED IND. CONT. EQ.
FOR HAZ. LOC. A196
CLASS 1, GROUPS A, B, C AND D, DIV . 2
FAC
ÎÎ
ÎÎ
Î
Î
Î
Î
Î
Î
OPERATING TEMPERATURE CODE T3C
1
3
PROTECT
PROGRAM
J4
OS #
SER
FRN
OPERATING SYSTEM INFO
PLACE OS UPGRADE LABEL HERE
WHITE
RED
+
-
BATTERY
CURRENT REQUIREMENTS: 1A @ 5 VDC
200mA @ 24 VDC
Place the operating
system upgrade
label here.
Operating System
Upgrade/Memory
Module Socket

Allen-Bradley SLC 500 Specifications

General

Programming Software	RSLogix 500
Communication Ports	RS-232, DH-485, DH+
Power Supply	120/240V AC or 24V DC
Programming Languages	Ladder Logic
Operating Temperature	0°C to 60°C (32°F to 140°F)
Relative Humidity	5% to 95% (non-condensing)
Memory	4K to 64K words (depending on the processor)
